Operation

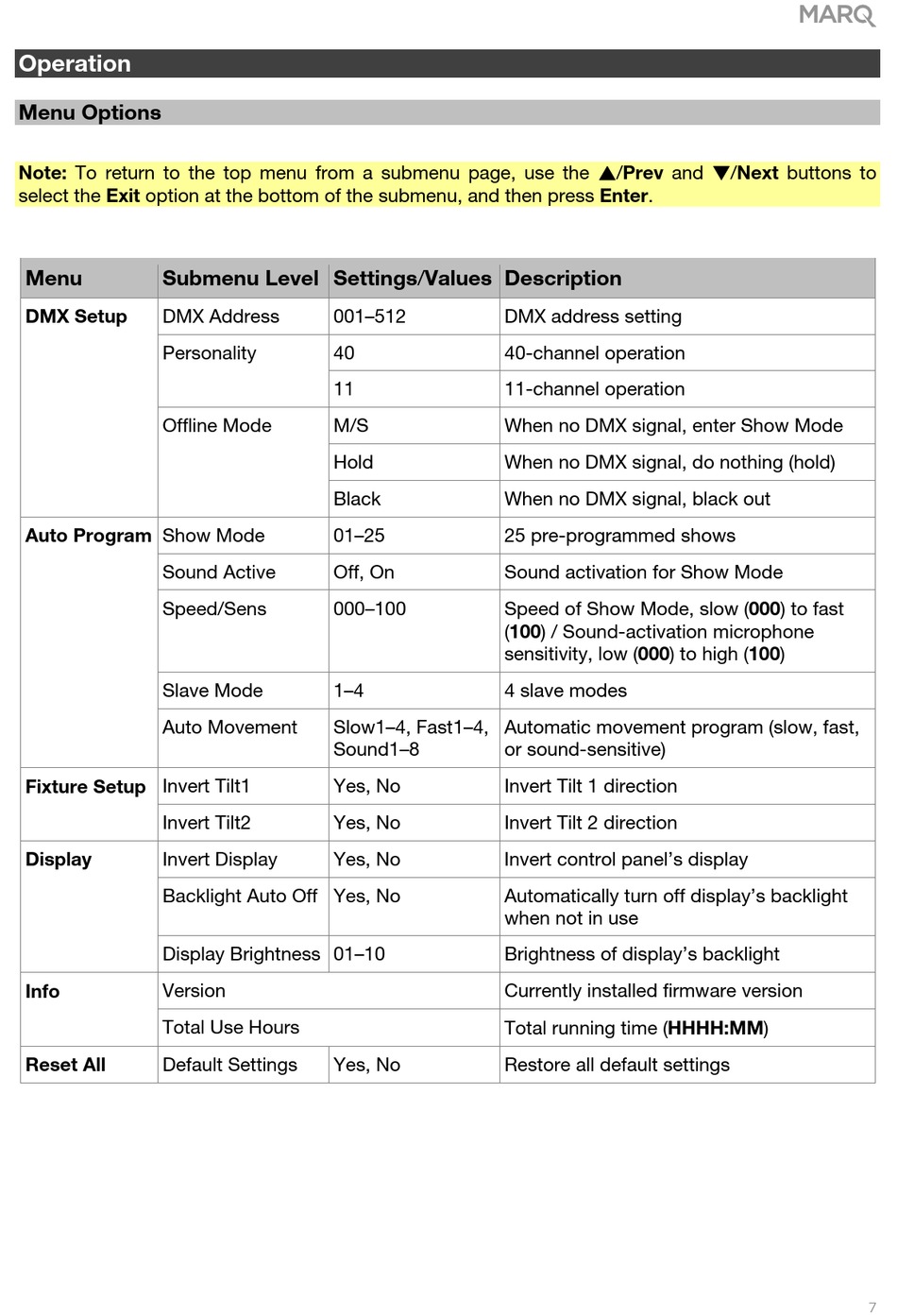

Menu Options

Note: To return to the top menu from a submenu page, use the /Prev and /Next buttons to
select the Exit option at the bottom of the submenu, and then press Enter.
Menu Submenu Level Settings/Values Description
DMX Address
DMX Setup
Personality
Offline Mode
Auto Program Show Mode
Sound Active
Speed/Sens
Slave Mode
Auto Movement
Fixture Setup Invert Tilt1
Invert Tilt2
Display Invert Display
Backlight Auto Off Yes, No
Display Brightness 01–10
Info Version
Total Use Hours
Reset All Default Settings
001–512
40
11
M/S
Hold
Black
01–25
Off, On
000–100
1–4
Slow1–4, Fast1–4,
Sound1–8
Yes, No
Yes, No
Yes, No
Yes, No
DMX address setting
40-channel operation
11-channel operation
When no DMX signal, enter Show Mode
When no DMX signal, do nothing (hold)
When no DMX signal, black out
25 pre-programmed shows
Sound activation for Show Mode
Speed of Show Mode, slow (000) to fast
(100) / Sound-activation microphone
sensitivity, low (000) to high (100)
4 slave modes
Automatic movement program (slow, fast,
or sound-sensitive)
Invert Tilt 1 direction
Invert Tilt 2 direction
Invert control panel's display
Automatically turn off display's backlight
when not in use
Brightness of display's backlight
Currently installed firmware version
Total running time (HHHH:MM)
Restore all default settings
7
