Additional tuning options
clip-on Volume Spacers
Changing volume spacers in the 40 FLOAT fork is an easy internal adjustment that
allows you to change the amount of mid stroke and bottom out resistance.
If you have set your sag correctly and are using full travel (bottoming out) too
easily, then you could install one or more spacers to increase bottom out resistance.
If you have set your sag correctly and are not using full travel, then you could
remove one or more spacers to decrease bottom out resistance.
Installation procedure and tuning options are available online at:
ridefox.com/ownersmanuals
MAXIMUM SPACERS
(LEAST AIR VOLUME)
FACTORY SETTING
(STOCK AIR VOLUME)
MINIMUM SPACERS
(MOST AIR VOLUME)
FULL EXTENSION
40 FLOAT Volume Spacer Configurations
Volume Spacers
Travel
Factory Installed
203
190
*
Do not exceed the Max Volume Spacers
number, as this can damage your fork.

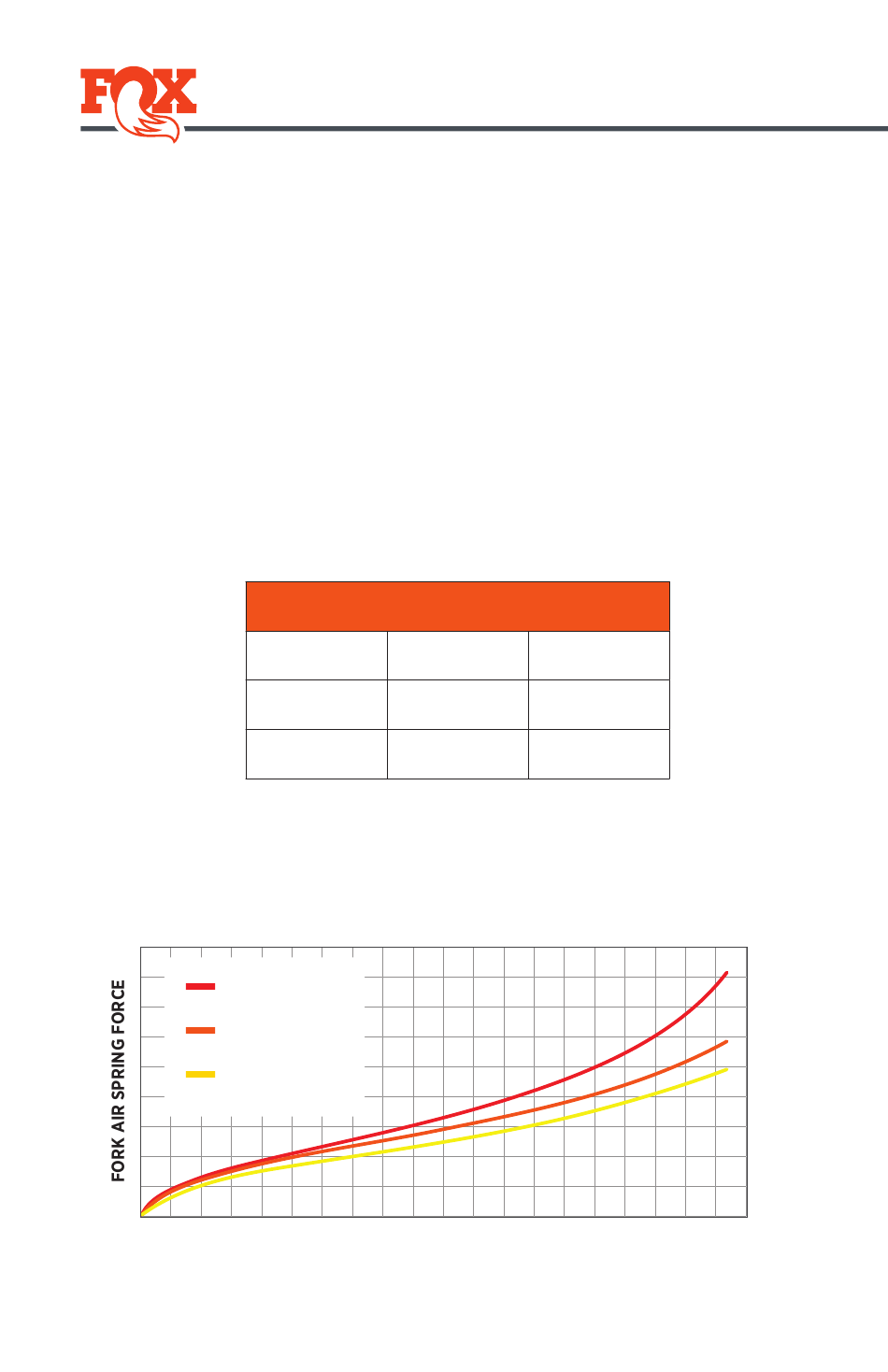

typical air spring curves
FORK TRAVEL
8
*Max Volume
Spacers
2 5
3 7
FULL COMPRESSION
