Install the Front Wheel
1.
Install the front wheel into the dropouts and slide the axle through the
dropouts and hub.
2.
Using a 5mm hex wrench, torque the axle to 2.15 Nm (19 in-lb).
3.
Torque the two pinch bolts on the rider's left dropout to 2.15 Nm (19 in-lb).
4.
Compress the fork a couple of times to let the right side of the dropout float
and settle to its low-friction point.
5.
Torque the two pinch bolts on the rider's right dropout to 2.15 Nm (19 in-lb).

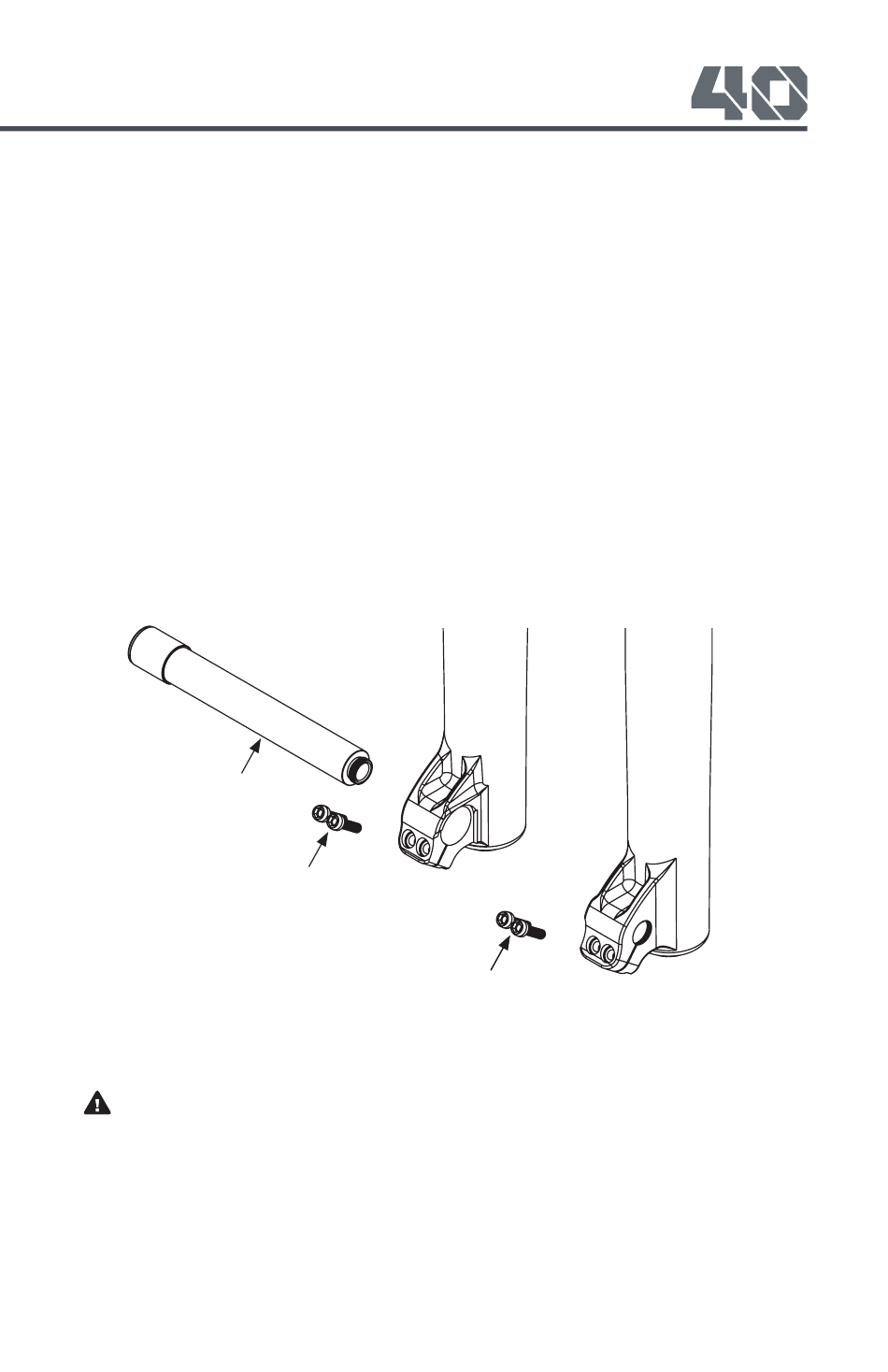

Axle assembly
WARNING: Failure to secure the axle properly can cause the wheel to become detached from the bicycle, resulting in
SERIOUS INJURY OR DEATH.
Pinch bolts
Pinch bolts
