Wired control with button
In this setup it is not possible to use the DM mode.
Set the control unit to the latching mode (MC) and connect the button between Phase and
the input of the optional wired switch (white wire).
Each time the button is pressed the control unit works in step-by-step mode: up-stop-
down-stop.
Neutral-220Vac
P h a s e -220Vac

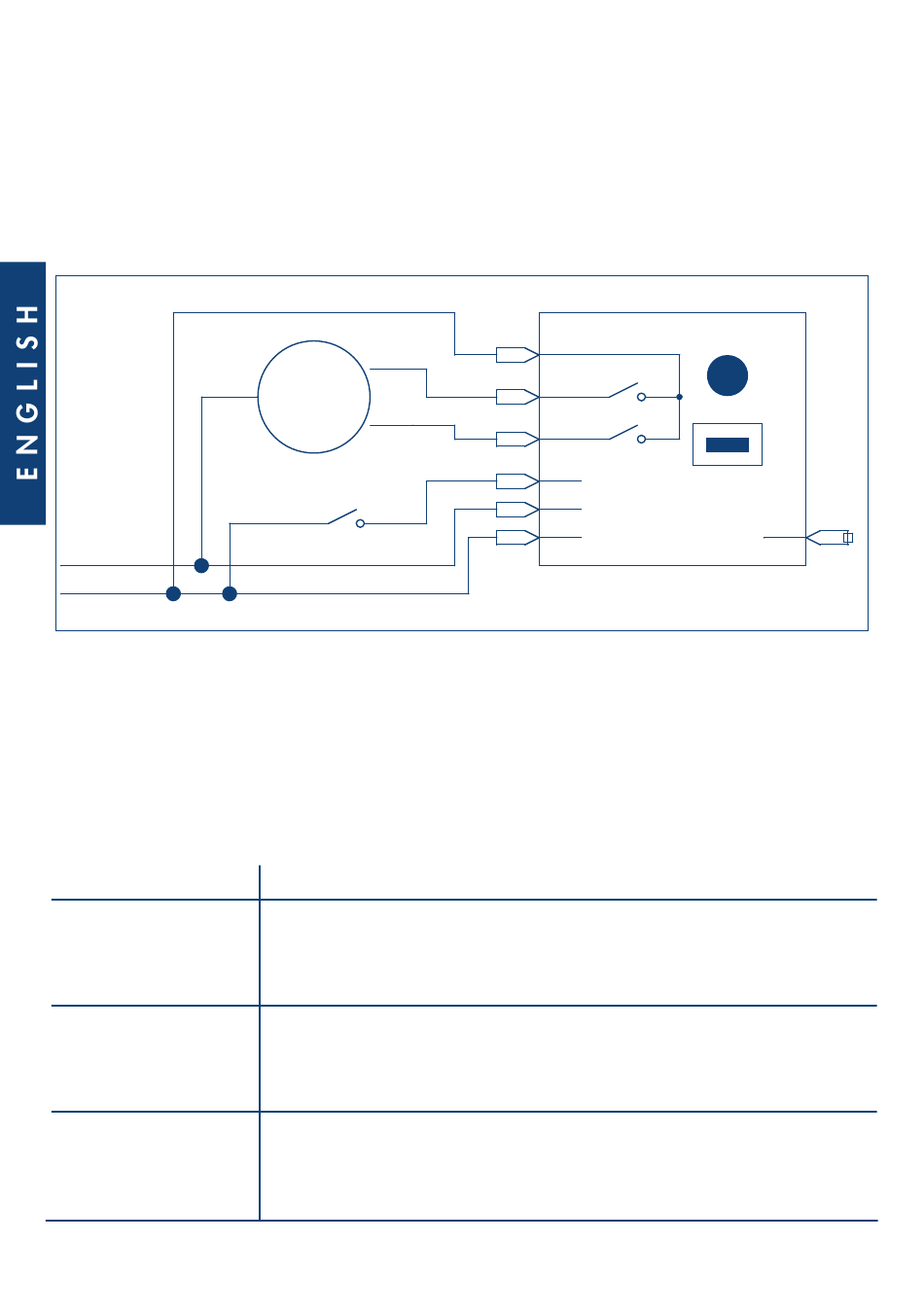

Remote and wired control of the motor with step-by-step button

OPERATION WITH SUN/WIND SENSOR

It is possible to associate a wind or sun/wind sensor with the control unit. In correspondence
to climatic events, the appearance or disappearance of the sun and/or with a wind alarm,
the control unit performs the following operations:
Event
Appearance of the
sun (sunlight over
threshold level)
Disappearance of the
sun (sunlight under
threshold level)
Wind alarm (wind
over the threshold
speed)
UP
COM
DOWN
MOTOR
P1
Automatic movement
3 minutes after the sun comes out, the awning opens
completely.
10 minutes after the sun disappears, the awning closes
completely.
After 2 seconds, the awning closes completely. It is not
possible to open it until 8 minutes have passed with the wind
under the threshold speed. The red Led flashes.
RED
6
YELLOW
5
GREEN
4
WHITE
3
BLUE
2
BROWN
1
32
LED PROG
PROG
PINK
ANT
