If a commutator is connected, the control unit is automatically set for use of the up/down
controls.
If you then replace the switch with a button, to return to the step-by-step mode run the
following sequence.
+
B C

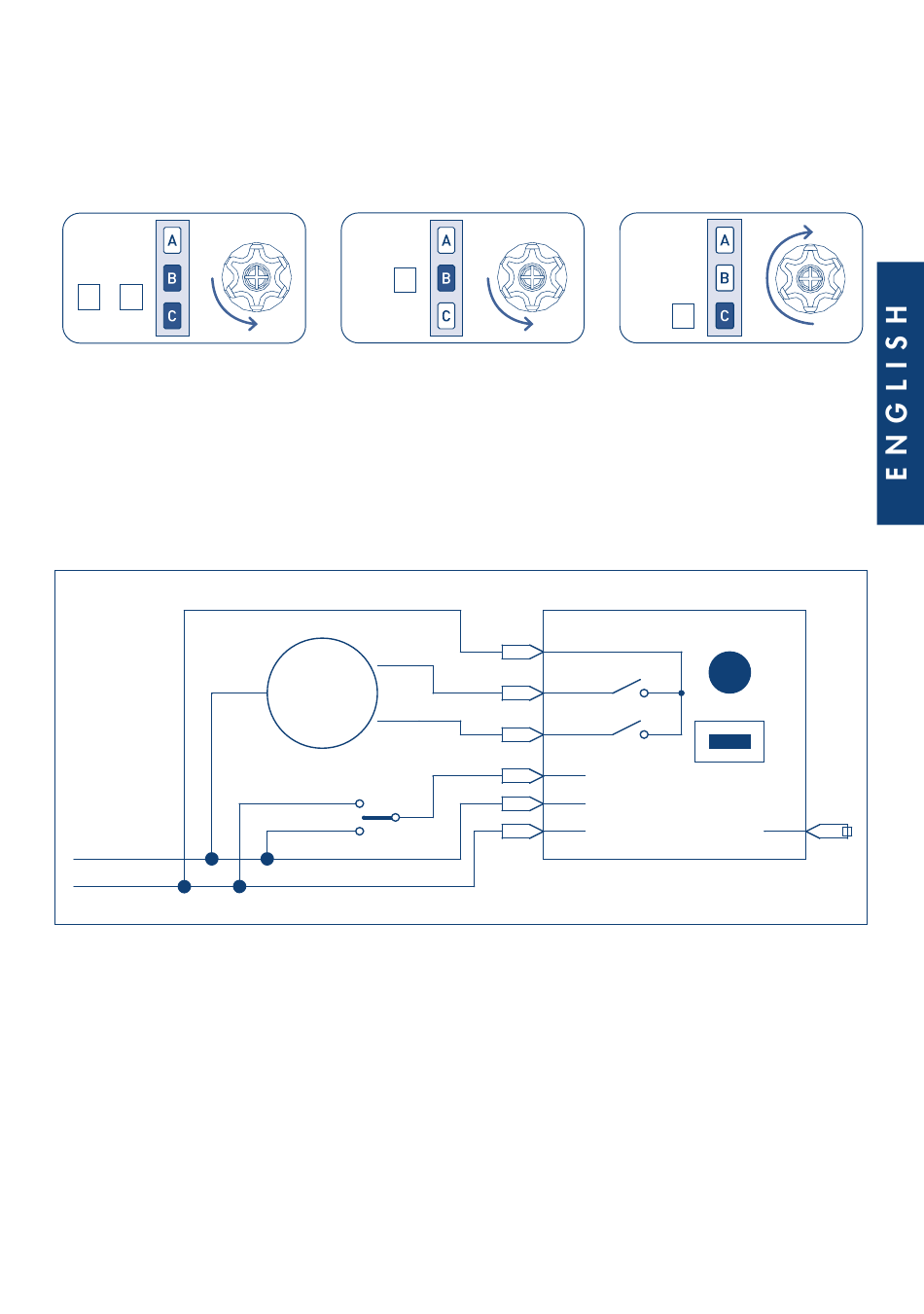

Wired control with up/down commutator
Connect the commutator common to the optional wired switch (white wire) input and
one of the two commutation terminals to the Phase and the other one to the Neutral of
the power supply.
Neutral-220Vac
P h a s e -220Vac
Remote and wired control of the motor with up/down commutator
B
UP
COM
DOWN
MOTOR
SW1
RED
6
YELLOW
5
GREEN
4
WHITE
3
BLUE
2
BROWN
1
31
C
2 sec
LED PROG
PROG
PINK
ANT
