Optional Wired Switch; Change Mode From Dm To Mc And Vice Versa - cherubini RX MINI Einstellanleitungen

In addition to the remote control, it is possible to control motor start and stop with a
commutator or a button, connected to the optional wired switch (white wire).
The control unit may be programmed to operate with commutators and buttons in "dead
man mode" (DM) or "latching mode" (MC).
DM - DEAD MAN MODE
The up and down controls remain active as long as the contact is closed, in any case
complying with the 3 minute time-out. To stop the motor set the commutator to Stop.
MC - LATCHING MODE
A short up or down impulse is enough to activate the outputs with the time-out set at 3
minutes. To stop the motor, press up or down again.

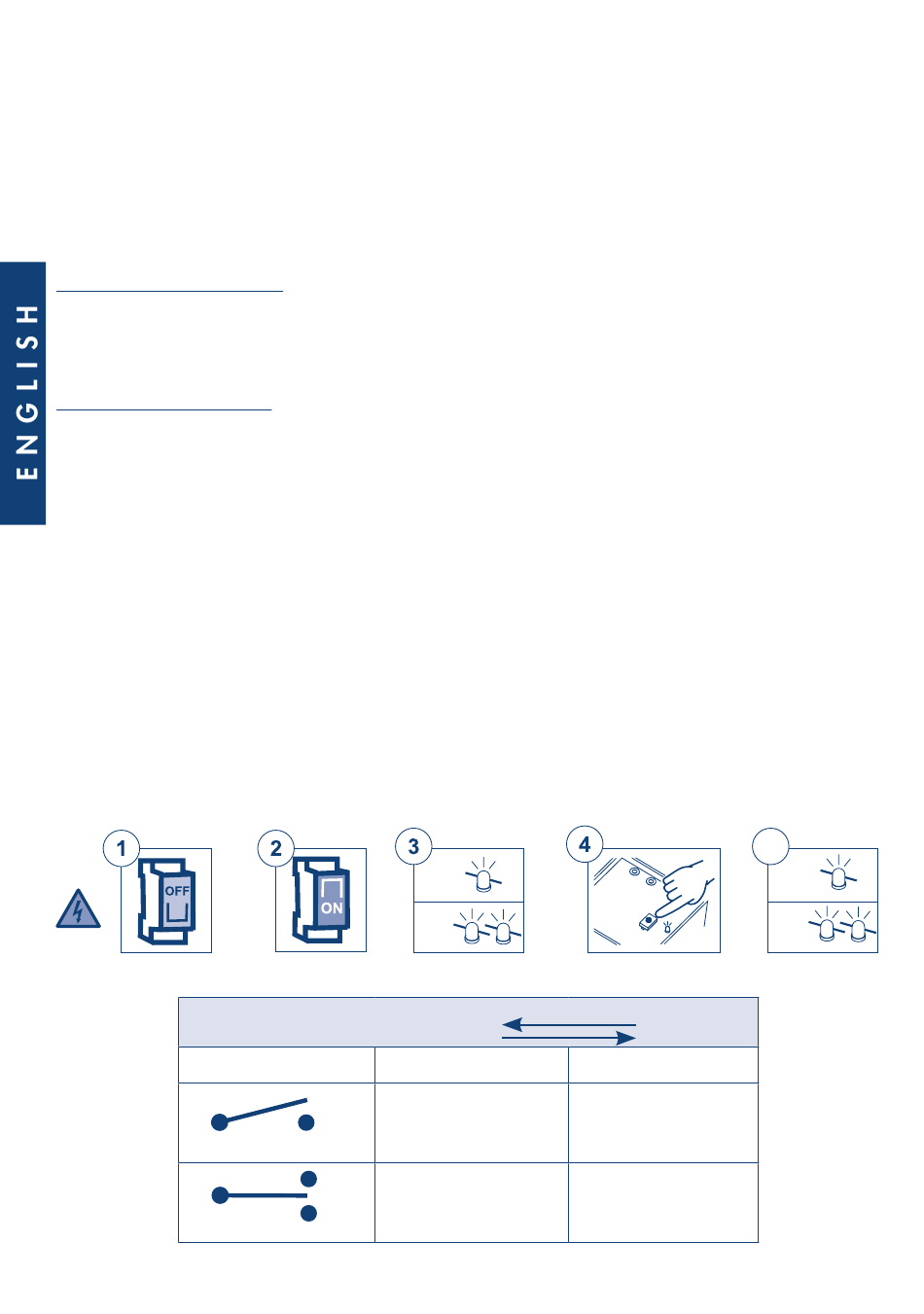

MODE CHANGE FROM DM TO MC AND VICE VERSA
The control unit is set at the factory for the DM mode. To change from the DM Mode to
the MC Mode, do the following:
1) Disconnect the power, and wait at least 5 seconds.
2) Reconnect the power.
3) Stand by for the Led signal that indicates the current mode:
• 1 impulse for the DM Mode.
• 2 impulses for the MC Mode.
4) Within 4 seconds press the SET button: the Led shows the new mode with the relative
number of impulses.
BUTTON (step-by-step)
COMMUTATOR (Up/Down)

OPTIONAL WIRED SWITCH

5 sec
....
within
DM
4 sec
....
MC
MODE CHANGE
DM
NO
√
30
5
DM
MC
MC
√
√
