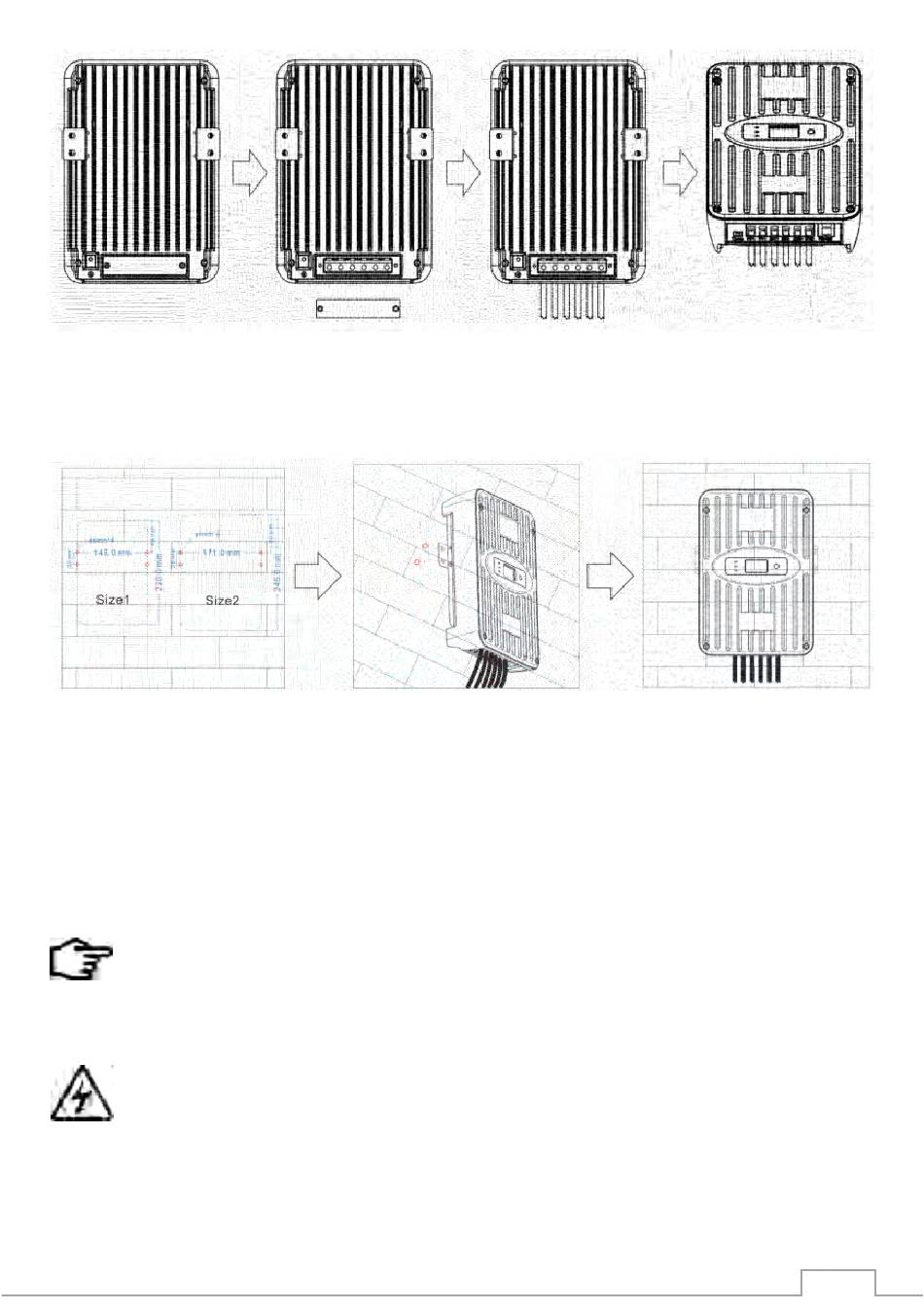

STEP 4: Drill mounting holes in the wall
Measure and mark the distance on the wall, drill 6mm holes and insert plastic
expansion particles and tighten.
STEP 5: Mount the controller on the wall
Align the controller with the mounting hole, tighten the controller to the wall with M4
screws.
STEP 6: Power on and start working
Check that the solar panel and battery are in normal condition, and then switch on in
the order of first battery and then solar panel.
NOTE: Before connecting the battery, measure the open-circuit voltage. It
must be over 10 volts to start the controller. If the system voltage is set to
Auto-detect, battery voltage over 18V will be detected as a 24V nominal battery, and
the unit will charge accordingly. The 12/24V auto selection is only done at start-up.
Warning: Risk of damage
Disconnect the battery from the MPPT after the solar input is disconnected as
far as possible. If the battery is removed during MPPT charging, there is a certain
probability that the controller will be damaged.
To prevent damage, the power must be cut off under the following conditions:
