2.4.3

Model T23 - Remote Sensing Probe with M12 Connector

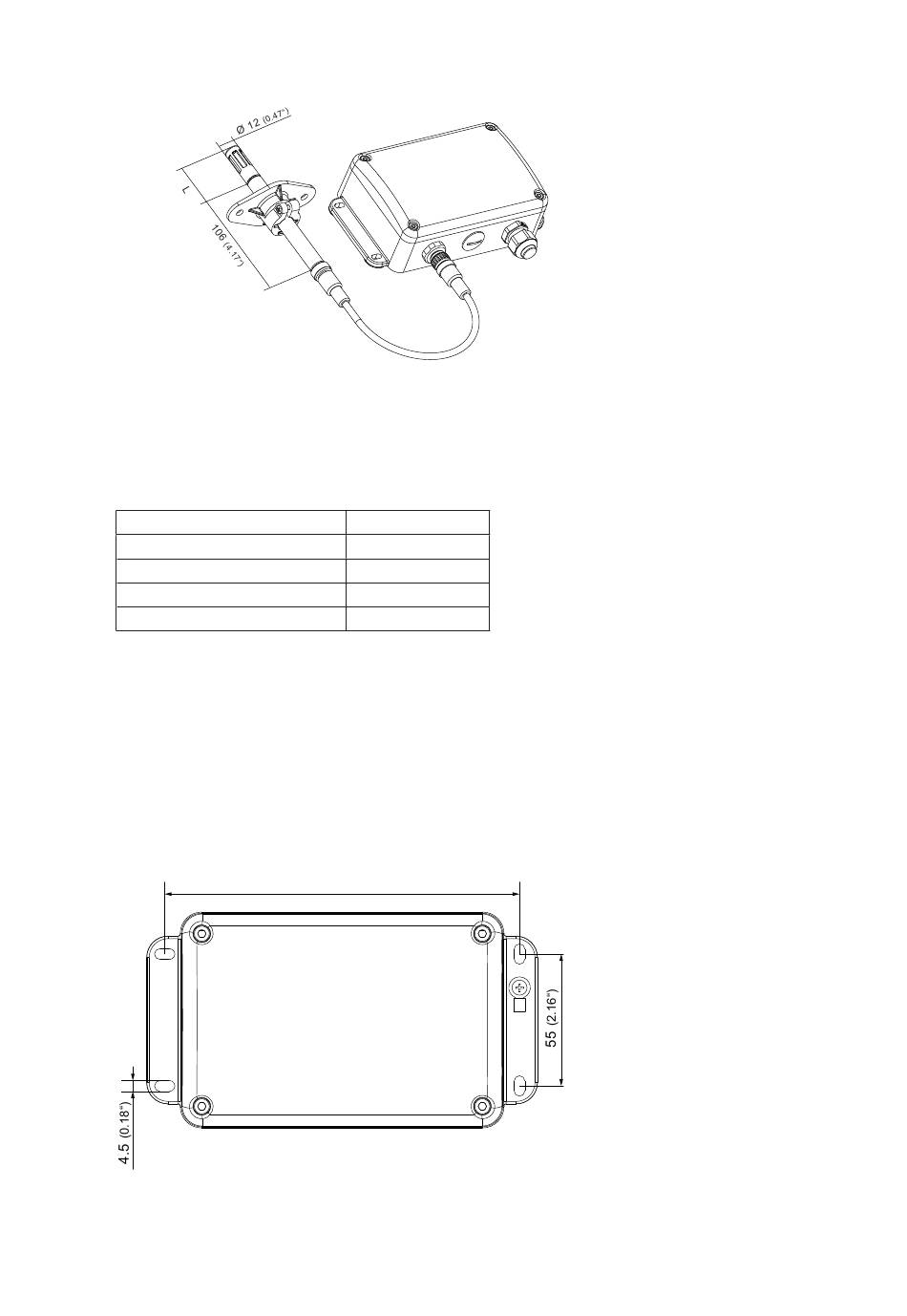

Fig. 3 Dimensions Model T23
M12 connection cable length max. 3 meters (9.84 feet).
Temperature working range cable -25...60°C (-13...140°F)
L = filter cap
Stainless steel sinter filter
PTFE filter, H O
2
Stainless steel grid / PTFE filter
Membrane filter
2.5

Installation

The EE100Ex has been certified in accordance with the ATEX 2014/34/EU directive and
IECEX Scheme.
2.5.1

Drilling Template for Mounting the EE100EX Enclosure

Fig. 4 Drilling template
Unused openings for cable glands should be sealed with a sealing plug (not included in the scope of
supply).
8
Length in mm
33 (1.3")
filter 33 (1.3")
2
39 (1.5")
34 (1.4")
148
(5.8")
