CONTROLS
The hood is equipped with a control panel with a suction speed control and a light control to light up the hob.

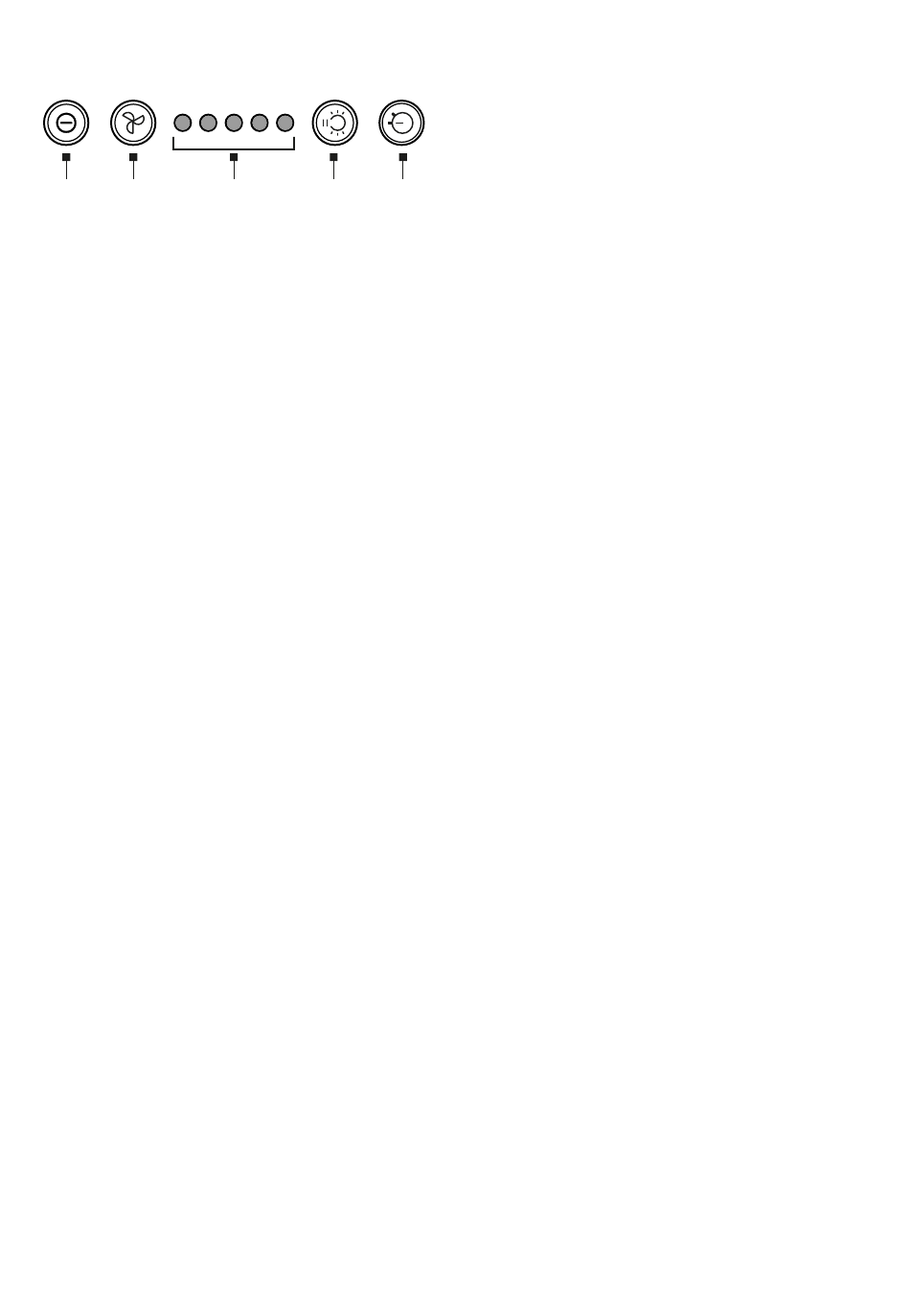

L1 L2 L3 L4 L5
T1 T2 T5 T3 T4
T1 Motor ON/OFF
Press the button to start the hood at speed 1.
Press the button during operation to switch the hood OFF.
T2 Increase speed
Press the button to switch the hood from OFF to speed 1.
Press the button (with hood ON) to increase the motor speed from speed 1 to intensive.
With each speed, the respective LED lights up.
Speed 1 LED L1
Speed 2 LED L2
Speed 3 LED L3
Intensive speed LED L4 (flashing)
Intensive speed is timed. Standard timing is 5', after which the hood switches to speed 2.
To deactivate the function before the time expires, press T2; the hood will switch to speed 1; press T1 to switch off the
hood.
T3 Lights ON/OFF
T4 Speed timer
T5 Operating status indicator.
Speed timer
The speed timer is enabled by pressing T4; after the set time, the hood switches off.
Timing is subdivided as follows:
Speed 1 - 20 minutes (LED L1 flashing)
Speed 2 - 15 minutes (LED L2 flashing)
Speed 3 - 10 minutes (LED L3 flashing)
Intensive speed - 5 minutes (LED L4 flashing).
During timed operation, press T1 to switch off the hood; press T2 or T4 to make the hood
go back to the set speed.
Grease filter warning
After 40 hours of operation, LED L5 lights up.
When this warning appears, it means that the installed grease filter needs to be washed.
To reset the warning, press and hold key T1 for 3".
Carbon filter warning
After 160 hours of operation, LED L5 flashes.
When this warning appears, it means that the installed carbon filter needs to be replaced.
To reset the warning, press and hold key T1 for 3".
In the event that both warnings appear at the same time, LED L5 will alternately indicate the alarms by remaining
on for 3" and then flashing 3 times.
This condition can be reset by performing the procedure described above twice.
The first time resets the grease filter warning, the second time resets the carbon filter warning.
In standard mode, the carbon filter warning is not active.
If the hood is used in the filter version, it is necessary to enable the carbon filter warning.
