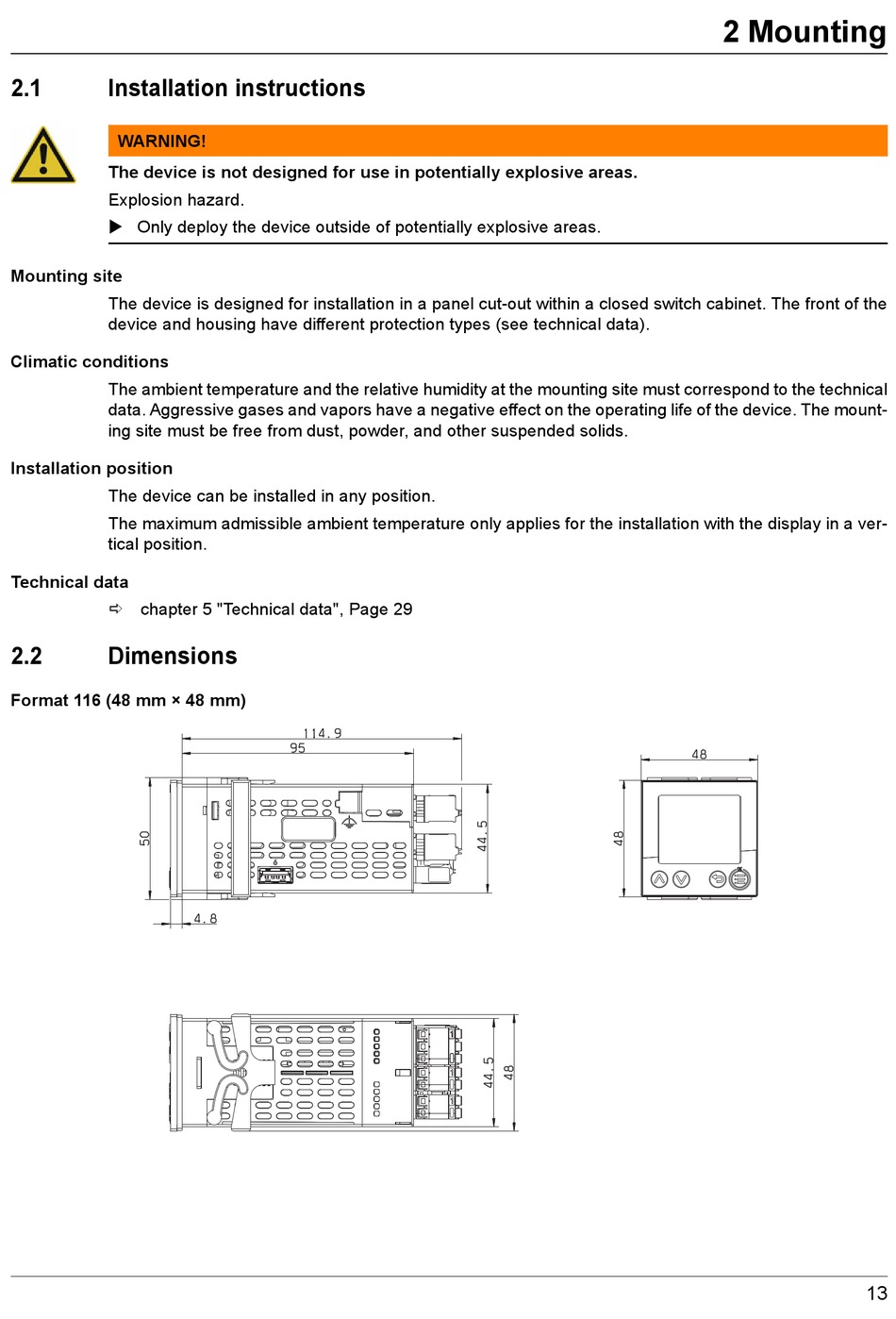

Mounting

2.1

Installation instructions

WARNING!
The device is not designed for use in potentially explosive areas.
Explosion hazard.
 Only deploy the device outside of potentially explosive areas.
Mounting site
The device is designed for installation in a panel cut-out within a closed switch cabinet. The front of the
device and housing have different protection types (see technical data).
Climatic conditions
The ambient temperature and the relative humidity at the mounting site must correspond to the technical
data. Aggressive gases and vapors have a negative effect on the operating life of the device. The mount-
ing site must be free from dust, powder, and other suspended solids.
Installation position
The device can be installed in any position.
The maximum admissible ambient temperature only applies for the installation with the display in a ver-
tical position.
Technical data
chapter 5 "Technical data", Page 29
2.2

Dimensions

Format 116 (48 mm × 48 mm)
