| REAR PANEL

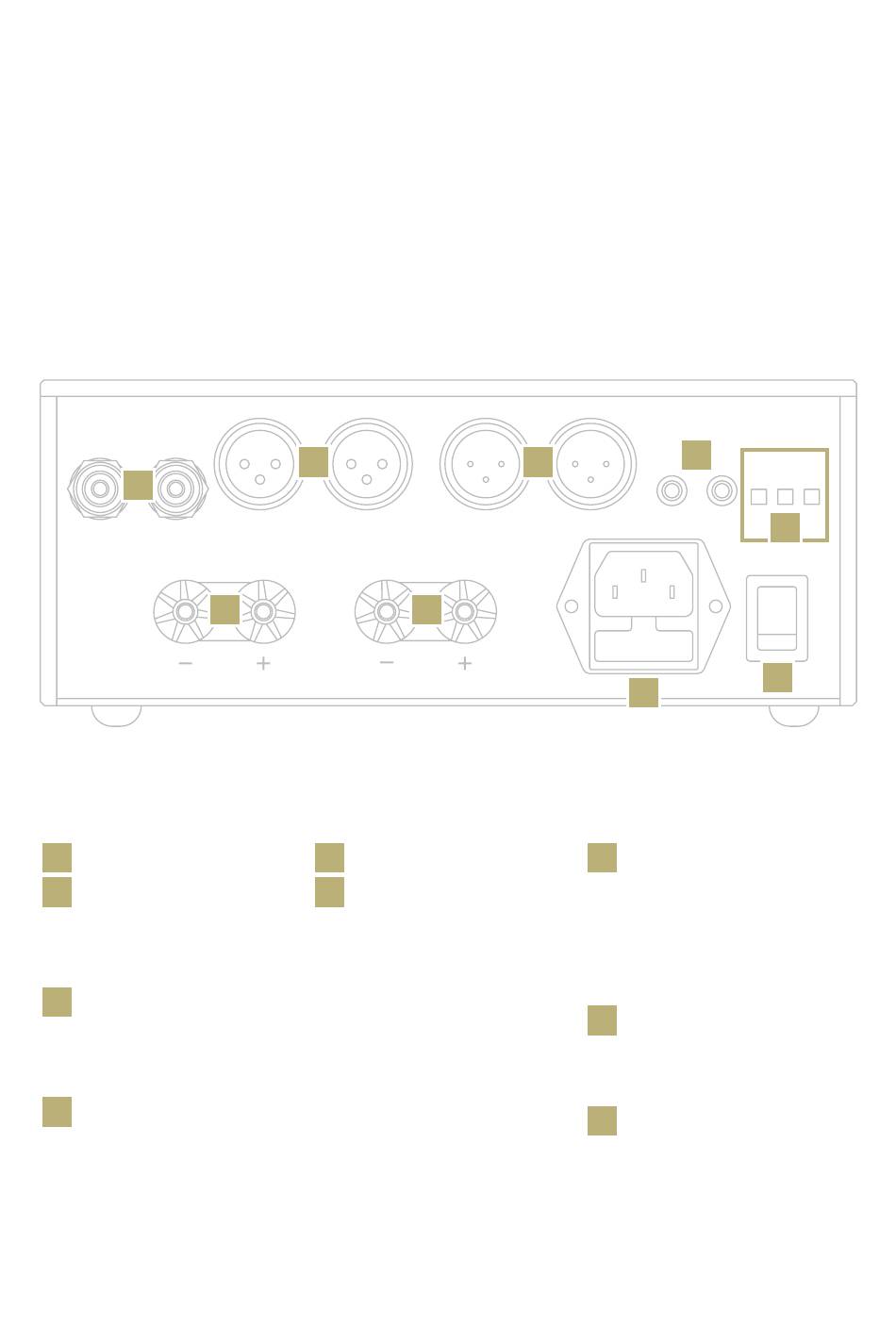

REAR PANEL OVERVIEW
1
AUDIO INPUTS
1
RCA unbalanced
2
XLR balanced
LINE OUTPUT
3
XLR balanced
GN LINK
4
12V IN/OUT (3.5mm) to
synchronise with other Gold
Note units.
2
6
SPEAKER OUT
6
Right channel
7
Left channel
MONO MODE (M)
See page 5 for more info.
ATTENTION
The left - and right + outputs
are electrically interconnected.
3
7
POWER
3
4
8
5
Press M switch to use in
Mono.
Press DF switch for low
damping factor.
Press BAL switch to activate
the XLR inputs.
8
AC IEC plug with integrated
fuse holder drawer 5A T
5x20mm (100/240V)
9
Master switch ON/OFF
5
