Installation

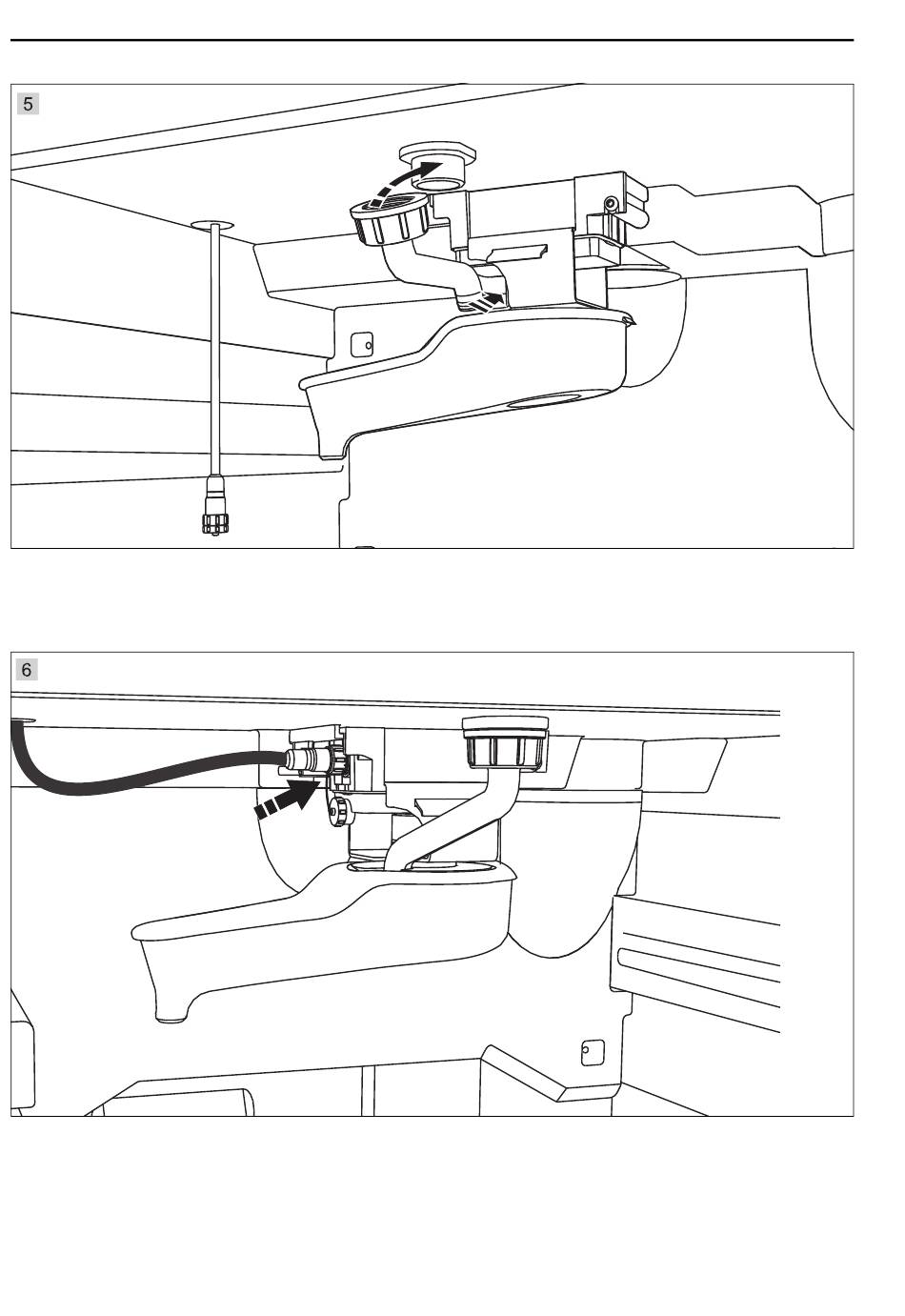

Pull thread adapter nut over outlet pipe (if necessary replace old or dirty pipe with new one). Hook
outlet pipe into gap at distribution arm and tighten the other end on the ceiling of the sampler.
Connect existing cable with distribution arm motor. For this purpose loose protecting cap, plug cable
into connector on the left side of the motor and screw cable with connector at distribution arm motor
tightly.
10
a0015558
a0015559
Endress+Hauser
