PegaSys Online controller
6
1
Online controller
Plus
Earth
7
2
Abbildungen/Images
Online controller connections
Installation and commissioning of the online
controller

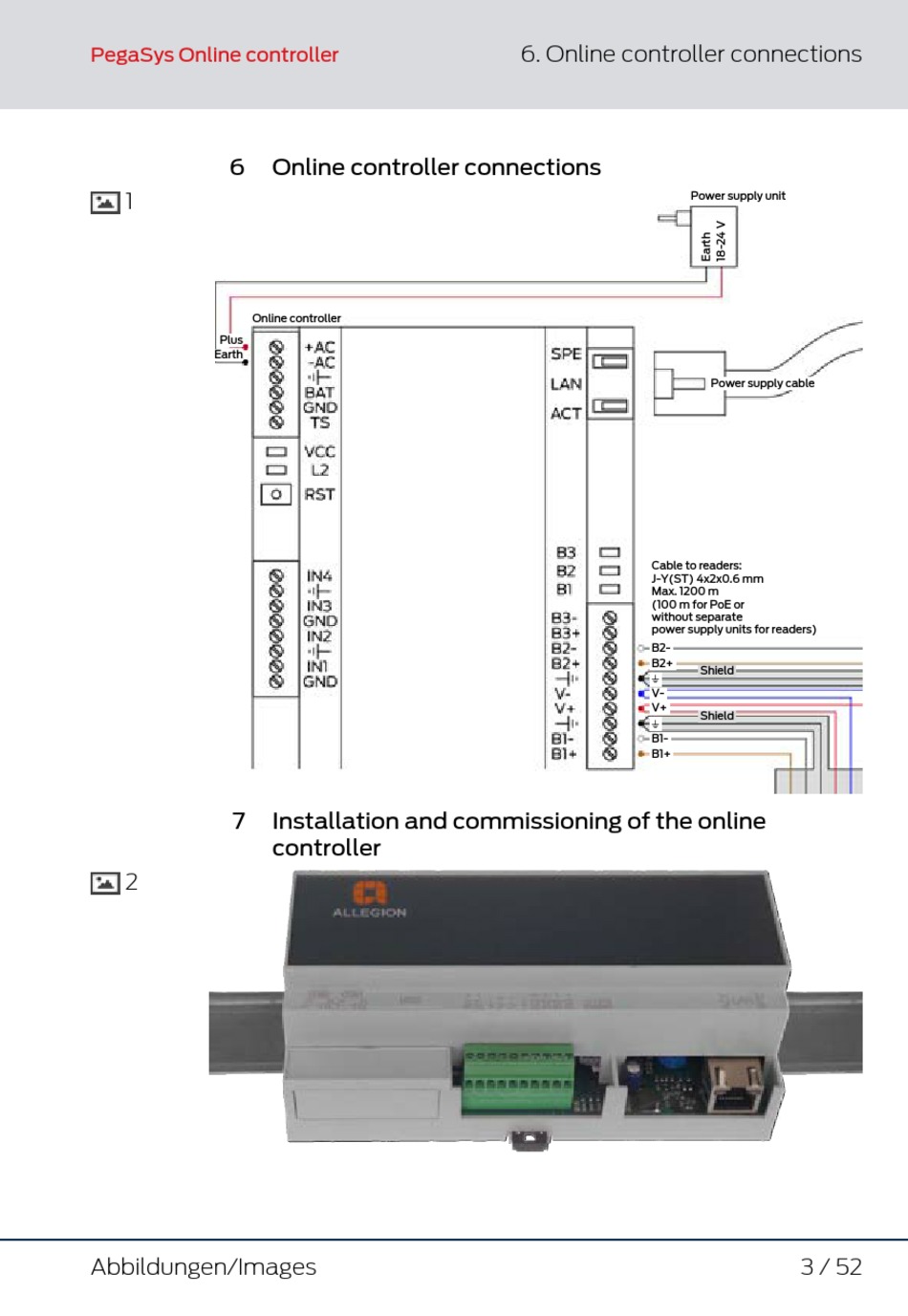

6. Online controller connections
Power supply unit
Cable to readers:
J-Y(ST) 4x2x0.6 mm
Max. 1200 m
(100 m for PoE or
without separate
power supply units for readers)
B2-
B2+
⏚
V-
V+
⏚
B1-
B1+
Power supply cable
Shield
Shield
3 / 52
