PegaSys Online controller

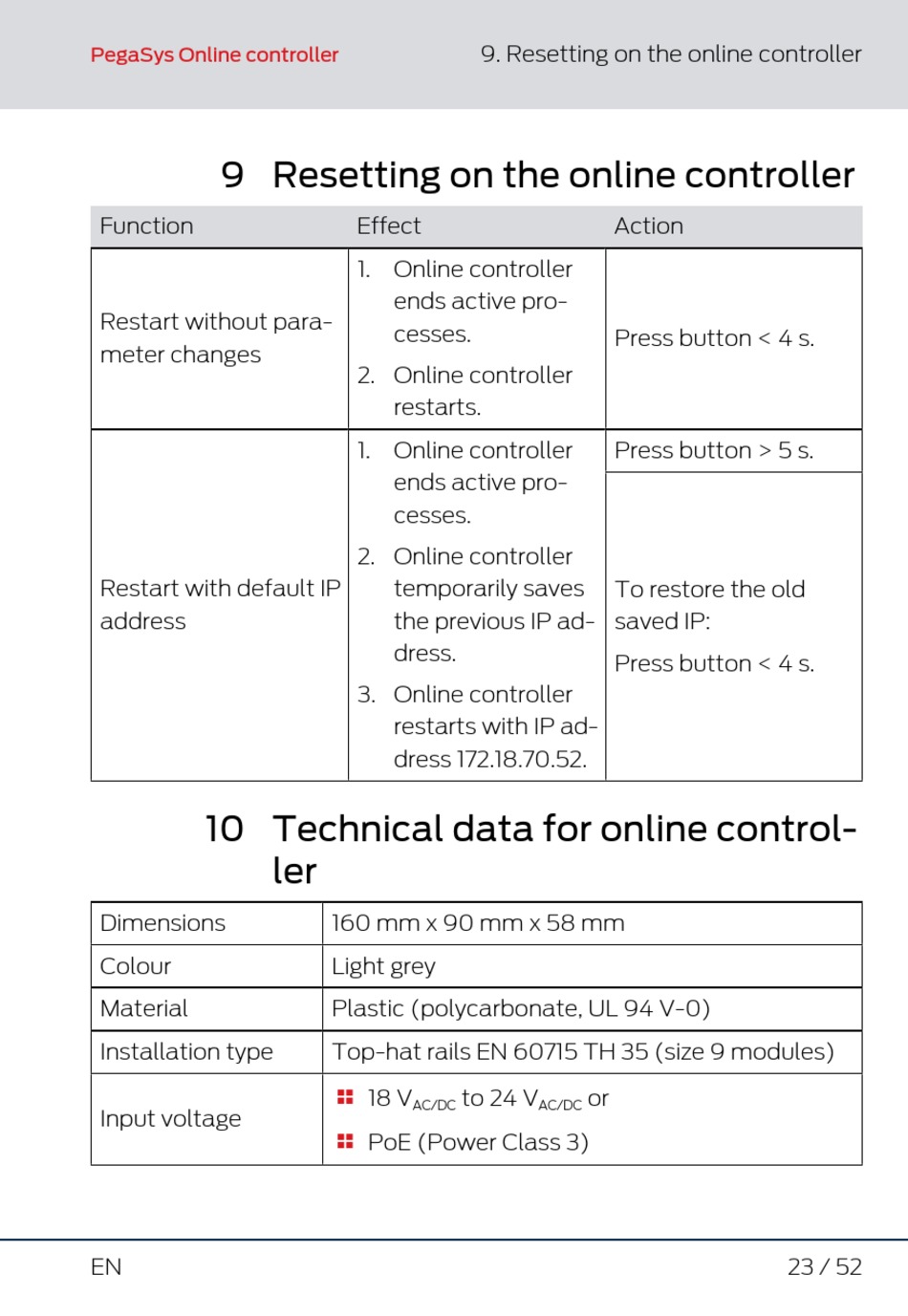

9 Resetting on the online controller

Function
Restart without para-
meter changes
Restart with default IP
address
10 Technical data for online control-
Dimensions
Colour
Material
Installation type
Input voltage
EN
Effect
1. Online controller
ends active pro-
cesses.
2. Online controller
restarts.
1. Online controller
ends active pro-
cesses.
2. Online controller
temporarily saves
the previous IP ad-
dress.
3. Online controller
restarts with IP ad-
dress 172.18.70.52.
ler
160 mm x 90 mm x 58 mm
Light grey
Plastic (polycarbonate, UL 94 V-0)
Top-hat rails EN 60715 TH 35 (size 9 modules)
18 V

AC/DC
PoE (Power Class 3)

9. Resetting on the online controller
Action
Press button < 4 s.
Press button > 5 s.
To restore the old
saved IP:
Press button < 4 s.
to 24 V or
AC/DC
23 / 52
