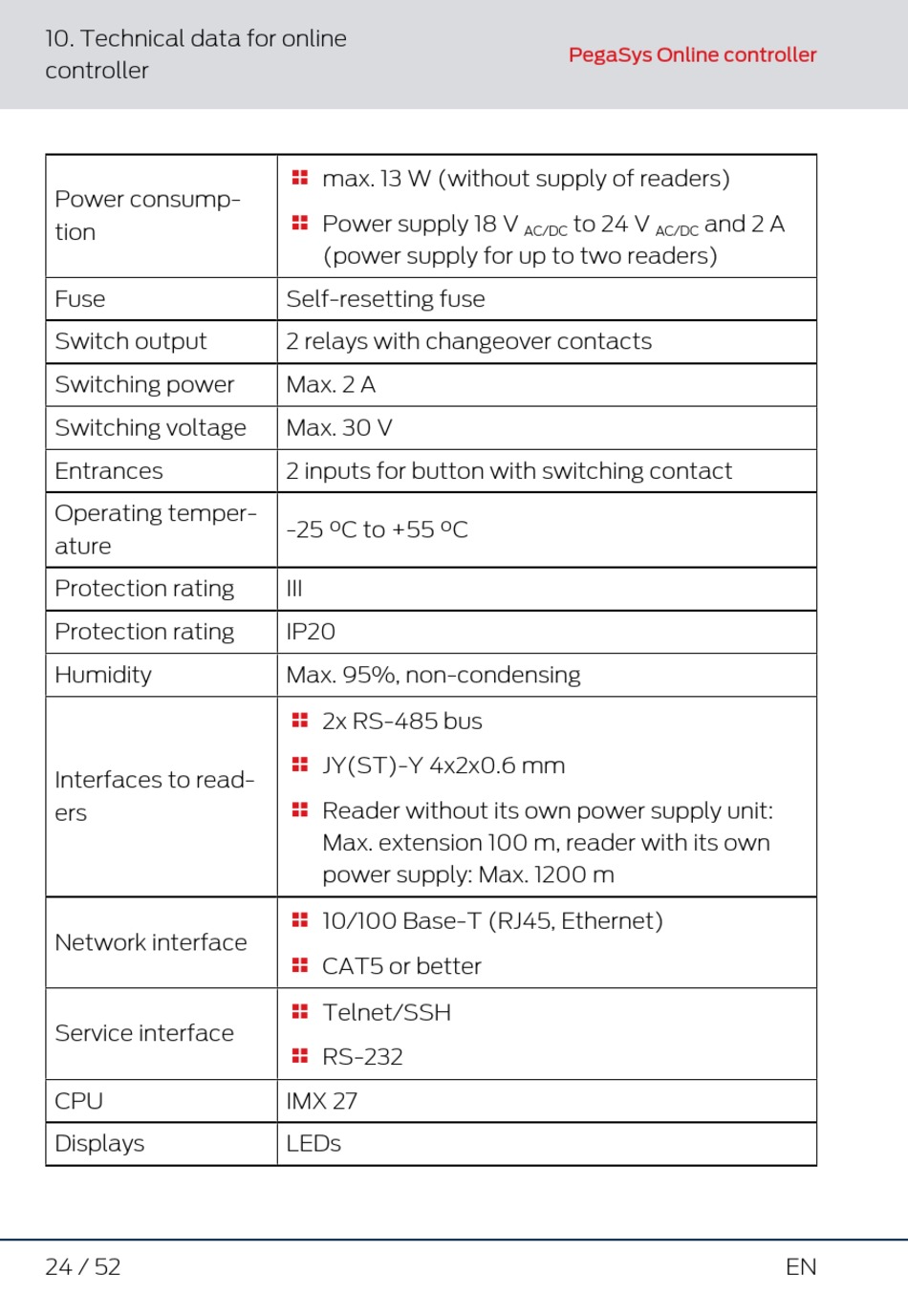

10. Technical data for online
controller
Power consump-
tion
Fuse
Switch output
Switching power
Switching voltage
Entrances
Operating temper-
ature
Protection rating
Protection rating
Humidity
Interfaces to read-
ers
Network interface
Service interface
CPU
Displays
24 / 52
max. 13 W (without supply of readers)

Power supply 18 V

(power supply for up to two readers)
Self-resetting fuse
2 relays with changeover contacts
Max. 2 A
Max. 30 V
2 inputs for button with switching contact
-25 °C to +55 °C
III
IP20
Max. 95%, non-condensing
2x RS-485 bus

JY(ST)-Y 4x2x0.6 mm

Reader without its own power supply unit:

Max. extension 100 m, reader with its own
power supply: Max. 1200 m
10/100 Base-T (RJ45, Ethernet)

CAT5 or better

Telnet/SSH

RS-232

IMX 27
LEDs
PegaSys Online controller
to 24 V
AC/DC AC/DC
and 2 A
EN
