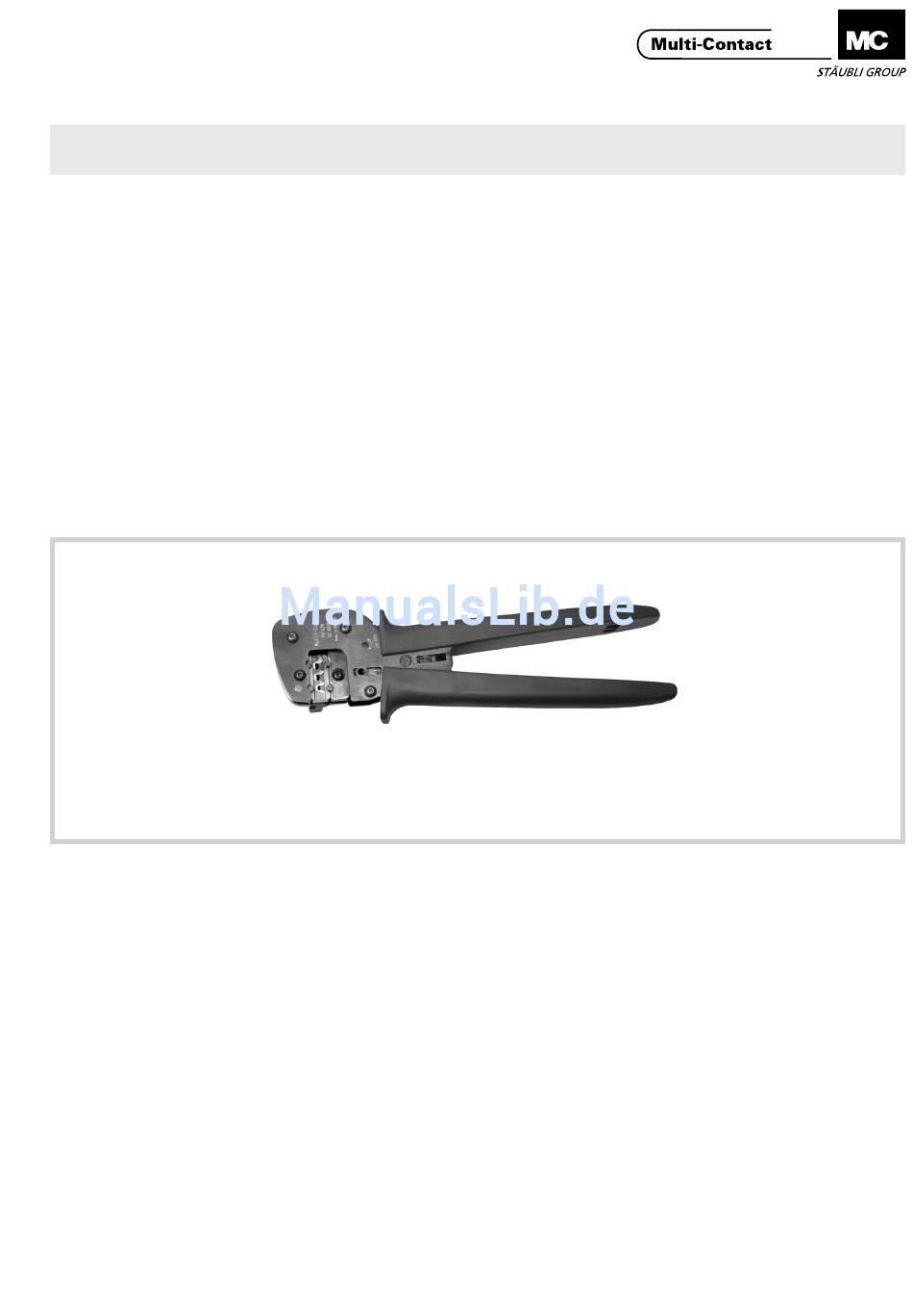

MA251 (de_en)
Bedienungsanleitung
Crimpzange PV-CZM...
für MC3, MC4 und MC4-EVO 2
Inhalt
Sicherheitshinweise....................................................................2
Ausführung für MC33
Ausführung für MC44
Ausführung für MC4-EVO 2 5
Crimp-Einsatz auswechseln7
Crimp-Einsatz ausbauen 7
-
Crimp-Einsatz einbauen 7
-
Crimpen 8
Crimpqualität 9
Notizen 10-12
PV-CZM...
* UL file E343181
www.multi-contact.com
MA251 (de_en)
Operating instructions
Crimping pliers PV-CZM...
for MC3, MC4 and MC4-EVO 2
Content
Safety Instructions ......................................................................2
Explanation for MC3 3
Explanation for MC4 4
Explanation for MC4-EVO 2 5
Exchanging the crimping insert 7
Removing the crimping insert 7
-
Fitting the crimping insert 7
-
Crimping 8
Crimping quality 9
Notes 10-12
1 / 12

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Multi-Contact PV-CZM-16100A

  • Seite 1: Inhaltsverzeichnis

    Crimp-Einsatz ausbauen 7 Removing the crimping insert 7 — — Crimp-Einsatz einbauen 7 Fitting the crimping insert 7 — — Crimpen 8 Crimping 8 Crimpqualität 9 Crimping quality 9 Notizen 10-12 Notes 10-12 PV-CZM... * UL file E343181 www.multi-contact.com 1 / 12...
  • Seite 2: Sicherheitshinweise

    Berücksichtigung aller anwendbaren gesetzlichen Sicher- plicable safety regulations. heitsbestimmungen und Regelungen erfolgen. Multi-Contact Multi-Contact (MC) does not accept any liability in the event of (MC) lehnt jegliche Haftung infolge Nichteinhaltung dieser failure to observe these warnings. Warnhinweise ab.
  • Seite 3: Ausführung Für Mc3

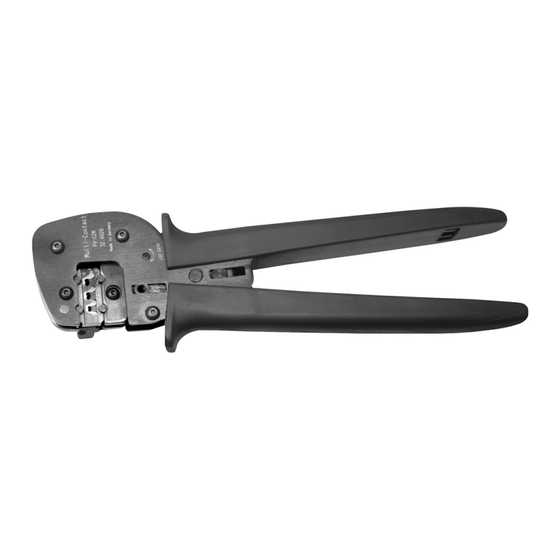

    Advanced Contact Technology Ausführung für MC3 Explanation for MC3 (ill. 1) (ill. 1) Crimpzange PV-CZM-16100A Crimping pliers PV-CZM-16100A inkl. zwei auswechselbaren Locators incl. two interchangeable Locators und zwei auswechselbaren Crimp- and two interchangeable crimping Einsätzen inserts Crimpbereich: 2,5 / 4 / 6 mm Crimping range: 2,5 / 4 / 6 mm...
