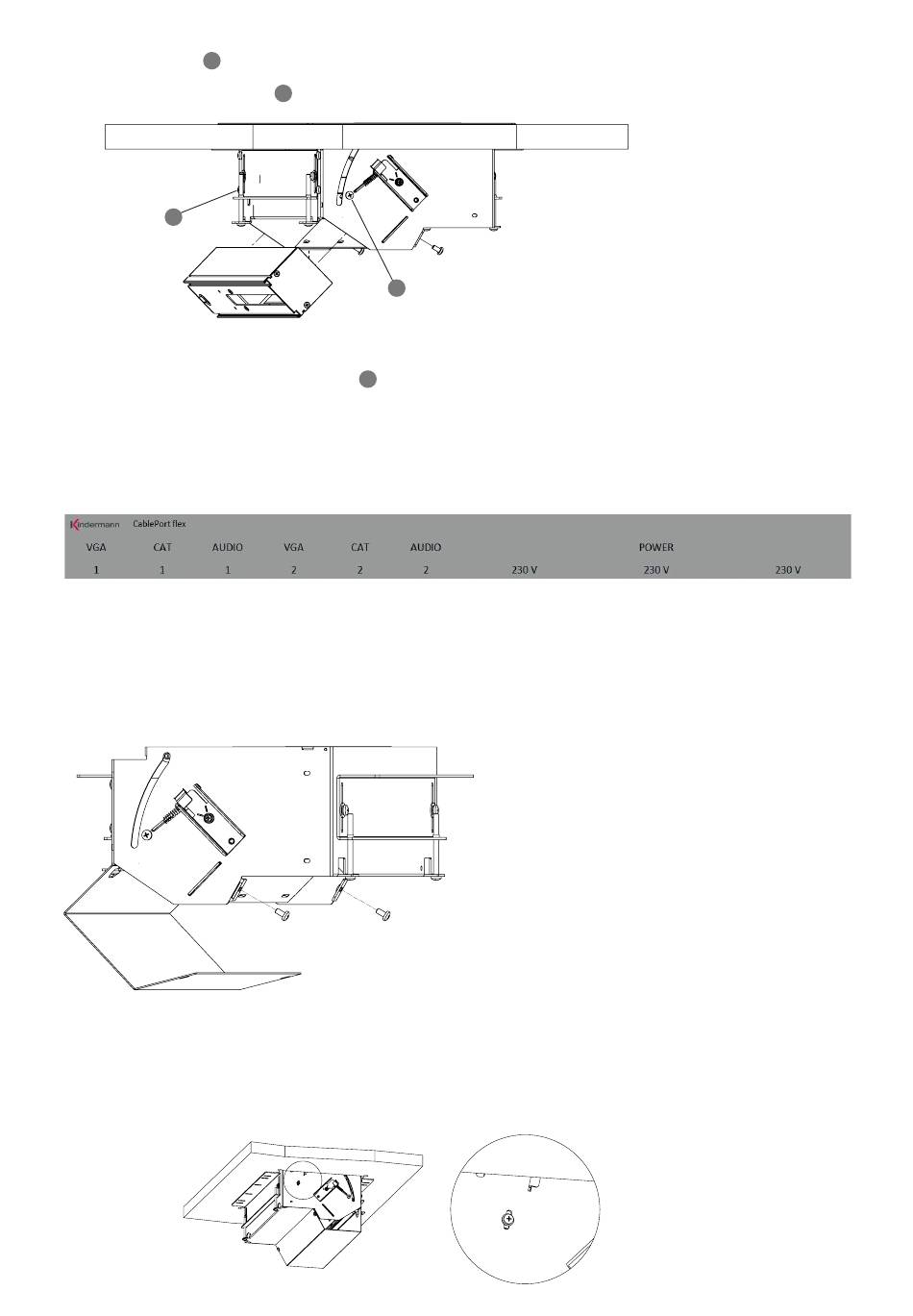

6. Inserting the module carrier into the basic module, electrical connection
Loosen the two screws at the side wall of the basic module, do not turn it out all the way. Push the equipped module carrier
1
(mains sockets on the right if possible) into the basic module from below until the longitudinal bridges latch in the module carrier
groove. Tighten the two screws for
1
Finally, all device supply lines are connected.
The mains connection takes place via the completely prepared mains line.
To remove the module carrier, release the screws
7. Label field
All CablePort flexes are equipped with a label field. All socket fields can be individually labelled with a PC printout. Label and Word
format templates are available in the download area for the respective basic modules, http://shop.kindermann.com
Remove the latched acrylic glass cover, insert the printout cut to size and latch the cover again.
8. Installing the cable covers
Insert the cover and screw it on twice.

9. Mounting notes

The closing angle of the opening flap can be adjusted subsequently via the height adjustment of the push-push element when the
flap is not aligned with the frame. Adjust the screw at the outside in the displayed oblong hole of the basic module.
attachment.
1
1
, tip the module carrier lightly and pull it out.
1
A
DETAIL A
MAßSTAB 5:1
7
