3.1.3 Table cut-out for flush installation with aluminium frame
For flush installation with a frame, the corresponding milling tools (upper mill, milling template to be produced in-house,
attachment tools, cut-out mill, radius mill) are required in several work steps. After the table cut-out, a gradation milling
of 13.5 mm width and 3 mm depth is cut into the tabletop. The radius mill is used to cut the 4 corners according to the
dimensional sketch.

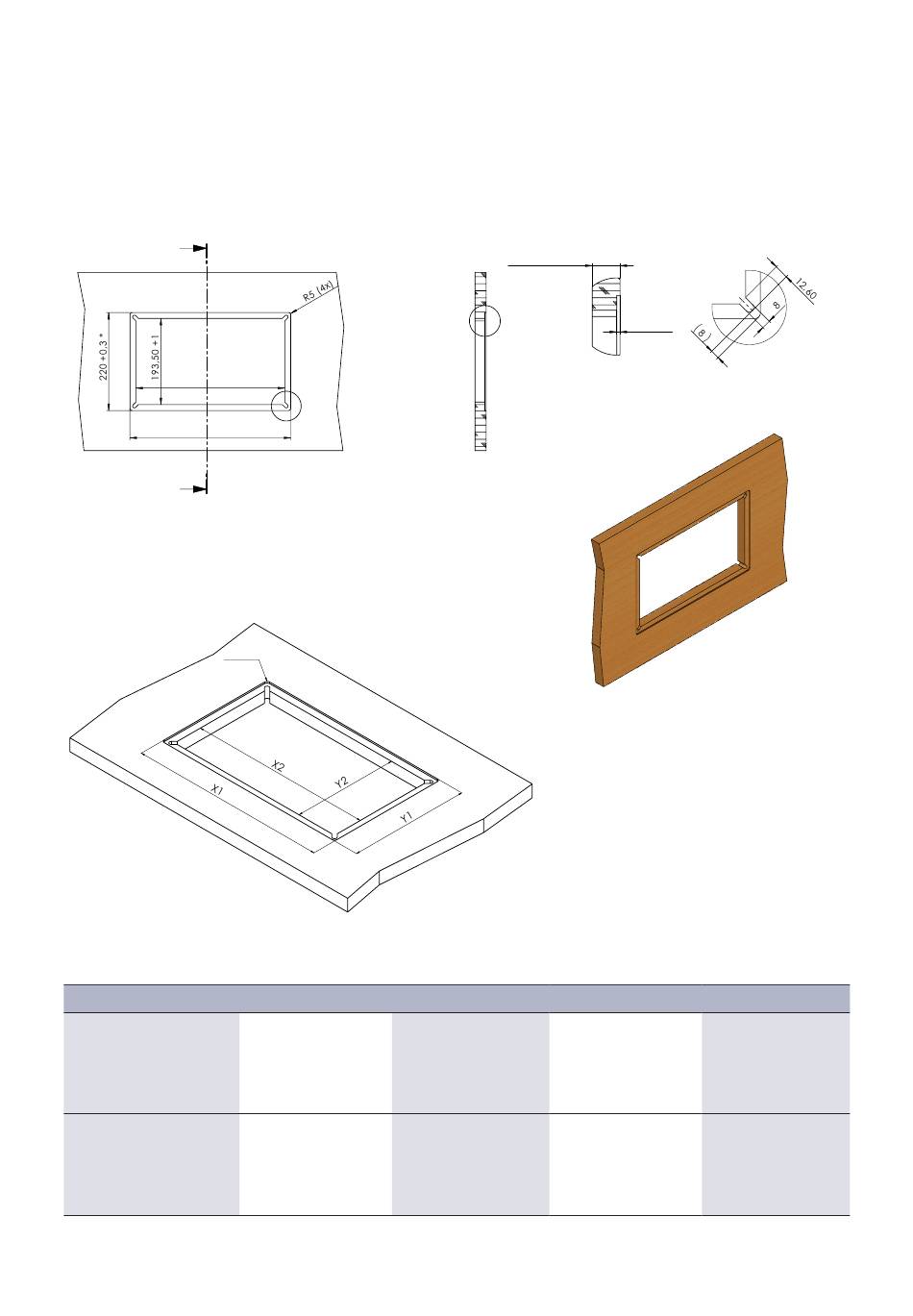

Drawing for flush frame, 6-fold:
Table cut-out:
Tischausschnitt:
* Attention: Take the precise size at the enclosed frame
CablePort flex
Basic module 4-fold
7448 000 010
Aluminium frame
for flush installation
7448 000 012
Basic module 6-fold
7448 000 020
Aluminium frame
for flush installation
7448 000 022
* It is recommended to cut the frame precisely fitting into the tabletop according to the original part.
4
A
334,50 +1
D
361 +0,3 *
A
R5 (4 x)
Frame outer dimensions
271 x 220 mm
361 x 220 mm
Min 15 mm
Max 40 mm
B
Detail B
Maßstab 1:2
Schnitt A-A
Table cut-out X1/2 Table cut-out Y1/2
244.5 mm + 1 mm 193.5 mm + 1 mm
271 mm + 0.3* mm 220 mm + 0.3* mm
334.5 mm + 1 mm 193.5 mm + 1 mm
361 mm + 0.3* mm 220 mm + 0.3* mm
3 -0,2
Detail D
Maßstab 1:2
Tabletop thickness Z
15 - 40 mm
15 - 40 mm
