INSTALLATION & USER INSTRUCTIONS
Thank you for purchasing this Whale® product. For over 60 years, Whale® has led the way in the design and manufacture of freshwater and waste systems including:
pumps, plumbing faucets, showers for low voltage applications. The company and its products have built a reputation for quality, reliability and innovation backed up by
excellent customer service. Read carefully before installation and use. For information on our full product range visit: www.whalepumps.com
TYPICAL INSTALLATION
Designed for use in low voltage applications including leisure boats or recreational vehicles such as caravans or motorhomes to pump cold clean freshwater. If it is
intended for use with any other liquid, it is the user's responsibility to ensure that the materials are fully compatible with the liquids to be used and that a system of safe
working practice is applied to installation, use and maintenance.
CONTENTS
1. Specifi cation
2. Principles of Operation
3. Application
4. Warnings
5. Installation
6. Operation
7. Maintenance
8. Helpful Hints
9. Service Support Details
10. EU Declaration of Conformity, Standards and Approvals
11. Warranty Statement

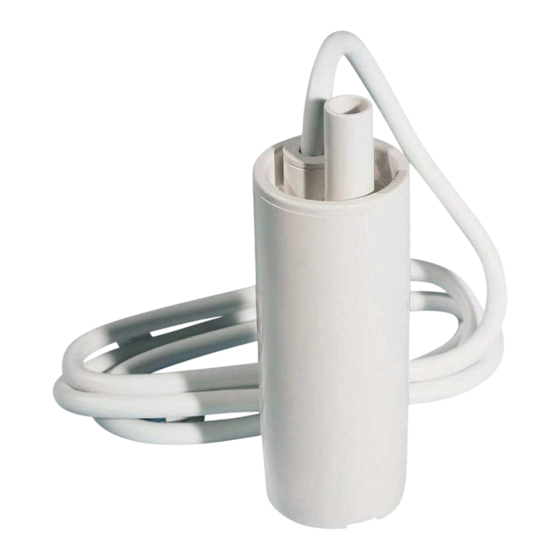

1. SPECIFICATION
Submersible - Model Specifi cations
Model Standard
Product Code UK Specifi cation GP1002
Product Code EU Specifi cation GP1010
Voltage 12V d.c.
Recommended Fuse Size 5 amp automotive
Weight
Suitable for 10 mm (
For ½" hose connection:
Fit adaptor by pressing on fi rmly. Note: Once fi tted adaptors cannot be removed.
For 15mm Quick Connect Plumbing:
Hose Connections
Use WX1511B (Stem Adaptor 11 mm-15 mm). Connect WX1504 (15 mm Equal Straight) and then 15 mm Plumbing
For 12mm Quick Connect Plumbing:
Use Whale part: WU1211B, and connect WU1204 and then 12mm plumbing
Material In Contact with Liquid Pump Body: ABS, Seals: Nitrile®, Strainer: Polypropylene, Impeller: PBT, Cable: PVC
Flow Rate Per Minute
Discharge Head Current Draw
(Note: performance may vary depending on specifi c installations)
10.3 ltrs
0 m (0 ft)
2.4 amps
8.75 ltrs
1 m (3 ft)
2.2 amps
5.75 ltrs
3 m (9 ft)
2.0 amps
In Line - Model Specifi cations
Model
Product Code
Voltage
Recommended Fuse Size
Weight
Hose Connections
Material In Contact with Liquid
Premium
GP1352
GP1356
12V d.c.
3
⁄ ") or 13 mm (½") Flexible Hose
8
13.2 ltrs
3.6 amps
11.75 ltrs
3.3 amps
9.75 ltrs
2.9 amps
In-Line Premium
GP1392
12V d.c.
5 amp automotive
Suitable for 10 mm ( 3 ⁄ ") or 13 mm (½") Flexible Hose
8
For ½" hose connection:
Fit adaptor by pressing on fi rmly. Note: Once fi tted adaptors cannot be removed.
For 15mm Quick Connect Plumbing:
Use WX1511B (Stem Adaptor 11 mm-15 mm). Connect WX1504 (15 mm Equal Straight) and then 15 mm Plumbing
For 12mm Quick Connect Plumbing:
Use Whale part: WU1211
Pump Body: ABS, Seals: Nitrile®, Strainer: Polypropylene, Impeller: PBT, Cable: PVC
Self-Venting Submersible
& In-Line Booster Pumps
LIST OF IMAGES
Fig A.
Fig B.
Premium
GP1354
GP1358
24V d.c.
3 amp automotive
0.15 kg (0.3 lbs)
13.2 ltrs
3.8 amps
11.75 ltrs
1.6 amps
9.75 ltrs
1.455 amps
In-Line Premium
GP1394
24V d.c.
3 amp automotive
0.15 kg (0.3 lbs)
1
Submersible Pump Installation
In-line Pump Installation
High Flow
GP1652
GP1656
24V d.c.
5 amp automotive
15.75 ltrs
3.8 amps
14.75 ltrs
3.7 amps
12.75 ltrs
3.5 amps
In-Line High Flow
GP1692
12V d.c.
5 amp automotive
