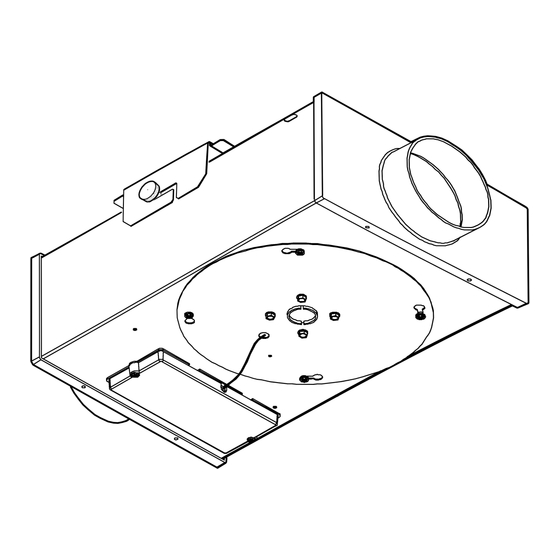

Flachbox Flatbox EFR 10 EFR 10 R EFR 12 EFR 12 R Montage- und Betriebsanleitung Mounting and operating instructions w w w . m a i c o - v e n t i l a t o r e n . c o m...
Seite 3
EFR 10: 172 m³/h bauseitig). EFR 10 R: EFR 10 R und EFR 12 R mit 5 Lüftungs- 1 = 95 m³/h, 2 = 112 m³/h, 3 = 134 m³/h stufen und Timer. Für den Dauerbetrieb. 4 = 156 m³/h. 5 = 172 m³/h, Maximalwert EFR..
Seite 4
Kinder sollten ● Gerät nur komplett montiert betreiben. beaufsichtigt werden um sicherzustellen, ● Veränderungen und Umbauten am Gerät dass sie nicht mit dem Gerät spielen. sind nicht zulässig und entbinden MAICO von jeglicher Gewährleistung und Haftung. 6. Montagevorbereitung Bestimmungsgemäße Verwendung Hinweise ●...
Seite 5
EFR-Flachbox möglichst schwin- Netzsicherung ausschalten! gungsentkoppelt zum Rohrsystem GEFAHR Warnschild gegen versehent- montieren, z. B. mit elastischer liches Wiedereinschalten Manschette Maico-ELR und anbringen. Schwingungsdämpfern. Kurzschlussgefahr bei Im Bereich des Montageortes für einen falscher Einführung der ebenen Untergrund sorgen.
Seite 6
Störung Maßnahme Gerätestillstand Prüfen, ob die Netzsicherung eingeschaltet ist. Thermischer Ein/Aus-Schalter Überlastungs- (bauseitig) in Position schutz schaltet „Aus“ schalten. Für EFR .. R-Flachbox an Potentiometer Gerät aus. Vor Wiederinbetriebnahme [11] die Nachlaufzeit einstellen. Gerät so lange Einstellbereich 3...25 Minuten. ausgeschaltet lassen, bis ...
Seite 8
EFR 10: 172 m³/h by the customer. EFR 10 R: EFR 10 R and EFR 12 R with 5 ventilation 1 = 95 m³/h, 2 = 112 m³/h, 3 = 134 m³/h levels and a timer. Designed for continuous 4 = 156 m³/h. 5 = 172 m³/h, maximum value operation.
Seite 9
● Only operate the fan unit when it is 6. Installation preparation completely installed. ● Modifications and alterations to the unit are not permitted and release MAICO from any Notes guarantee obligations and liability. ● Any installation position. ● IP 20 degree of protection only when...
Seite 10
Danger to life from electric the duct system. shock ● Install an air filter, e.g. MAICO TFE if Switch the mains fuse off. DANGER operating the unit in a dusty environment. Position a warning notice to avoid the unit being accidentally switched back on.
Seite 11
Fault Countermeasure Unit doesn’t run Check that the mains fuse is switched on. Thermal overload Put the customer-supplied protection on/off switch to the “off” switches the unit position. off. Let the motor and the Adjust the overrun time for the EFR .. R temperature limiter cool Flatbox at the potentiometer [11].
