User manual / Bedienungsanleitung
2. Mounting procedure
Take the cartridge out of the packaging. To avoid damage, we recommend
leaving the stylus guard on the cartridge while mounting the cartridge
onto the tonearm.
Use the screws provided to mount your Clearaudio
cartridge (the cartridge threads in the body comply with the metric
standard for M 2.5mm screws and have the standard spacing of 12.7mm).
Be careful not to over-tighten the screws as they may strip the
threaded holes.
Now connect the pins of your Clearaudio cartridge to the jacks of the
headshell or tonearm cable, taking care not to use too much force.
If necessary, you can use suitable precision pliers or tweezers for
assistance.
Please note the colour coding below in order to ensure the correct phase
in music playback, otherwise an audible sound deterioration would result.
+
R
L
-

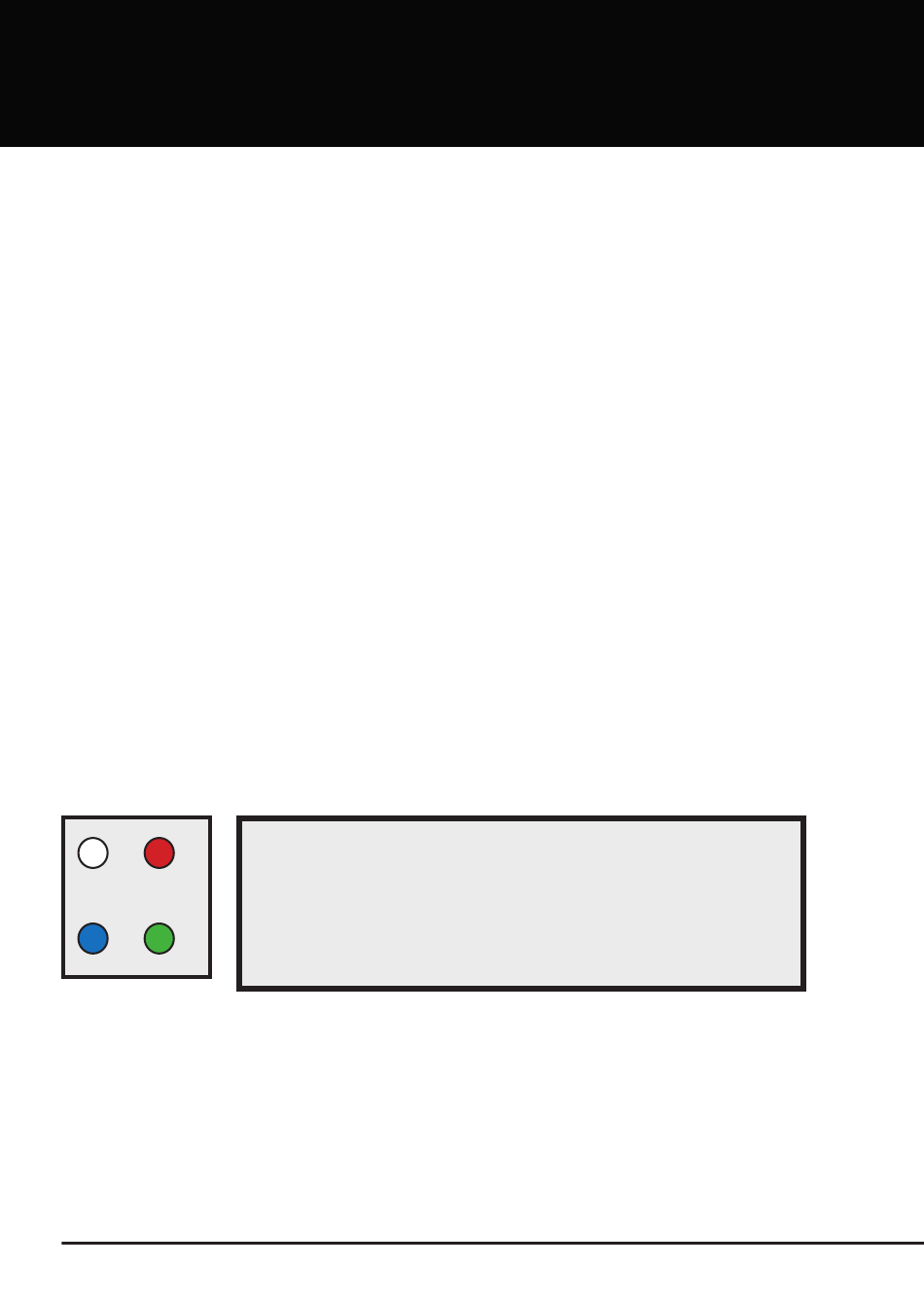

Pic. 1: Colour marking of the signal pins
Page 6
Left output (L+)
Left ground
Right output (R+)
Right ground
>>
>>
>>
>>
© clearaudio electronic GmbH
Charisma V2 MM
white
blue
red
green
