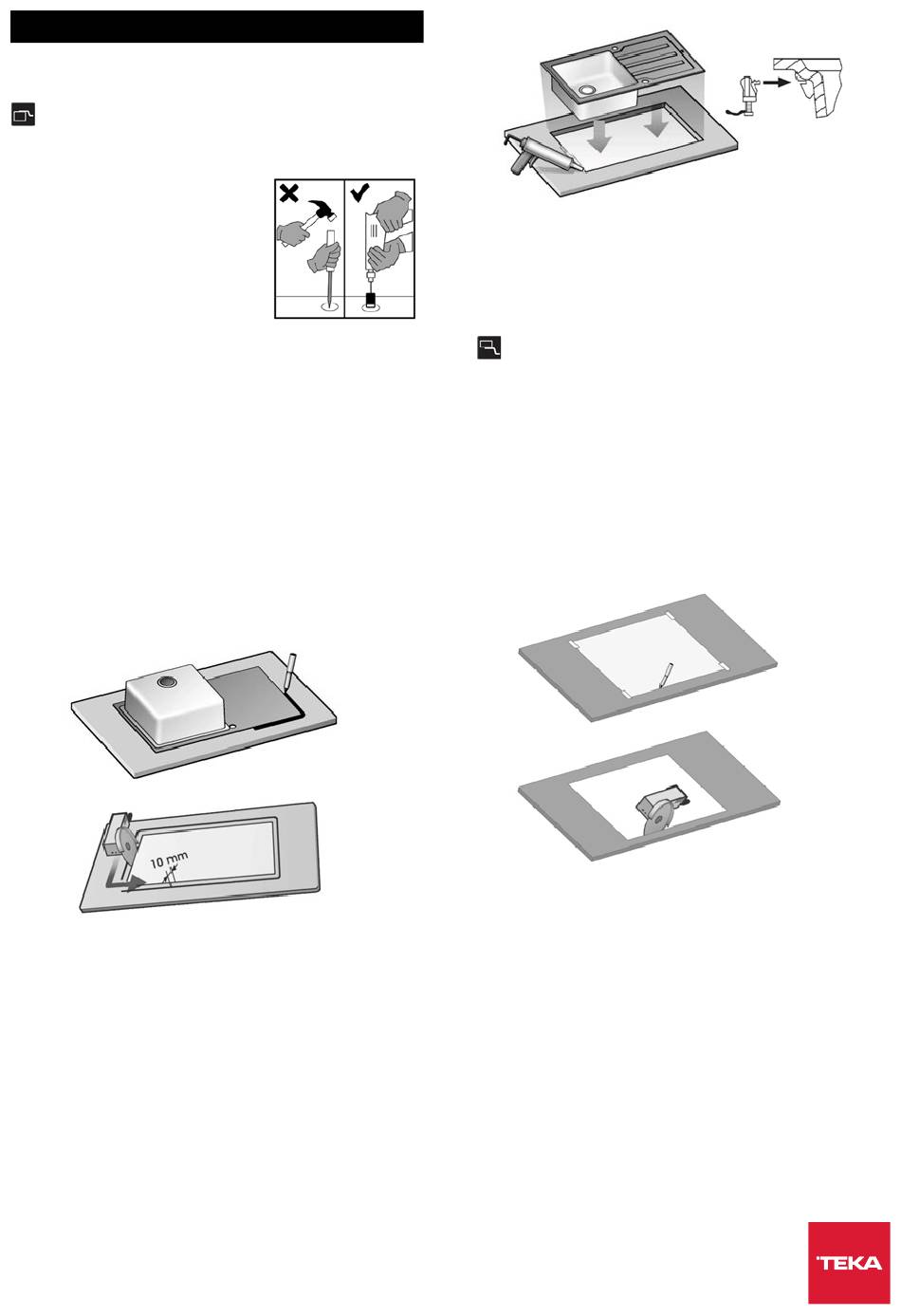

INSTALLATION INSTRUCTIONS

INSET
1. HOLES FOR THE TAP CONNECTIONS.
The sink comes with prepared
pre-drilled holes of Ø 35 mm
on both sides. This lets you
choose the side where you
prefer to install the tap. After
deciding which side you
want to use, the hole can be
completed using a diamond core installed on a
manual drill, taking care to work from the non-
visible side.
2. OPENING THE WORK SURFACE FOR
INSERTING THE SINK.
Place the sink upside-down on the work surface
where it is to be installed. Trace around the outer
edge of the sink using a pencil. Now move the
sink and draw a dotted line 1 cm. inside the one
you have just drawn using the sink as a template.
Cut along the dotted line using the appropriate
tools.
3. FITTING THE SINK INTO THE WORK SURFACE.
All our sinks come equipped with pre-installed
mounting clamps. The following steps explain
how to install the sink correctly. Apply a special
transparent sealant around the outer edge of
the sink, wherever it will come into contact
with the work surface when the installation is
complete. Make sure that all the clamps of the
fastenings are facing inwards. Insert the sink into
the cut-out area of the work surface making sure
it is centred. Tighten the fastenings using the
adjusting screws, starting from the centre and
working in a criss-cross order.
4. INSTALLING THE FITTING ELEMENTS AND
SIPHON.
Follow the instructions provided with the waste
kit.
UNDERMOUNT
1. HOLES FOR THE TAP CONNECTIONS.
The drilling will be done directly on the work
surface.
2. OPENING THE WORK SURFACE FOR
INSERTING THE SINK.
Place the template on the kitchen worktop; mark
on it with a pencil the perimeter as indicated on
the template.
3. FITTING THE SINK INTO THE WORK SURFACE.
Drill the holes for the bushings 27 mm from
the perimeter of the hole in which the sink will
be placed, insert the bushings. Apply a special
transparent sealant around the outer edge of
the sink Insert the sink into the cut-out area of
the worktop surface making sure it is centered.
Tighten the fastenings using the adjusting
screws, starting from the center and working in
a criss-cross order.
