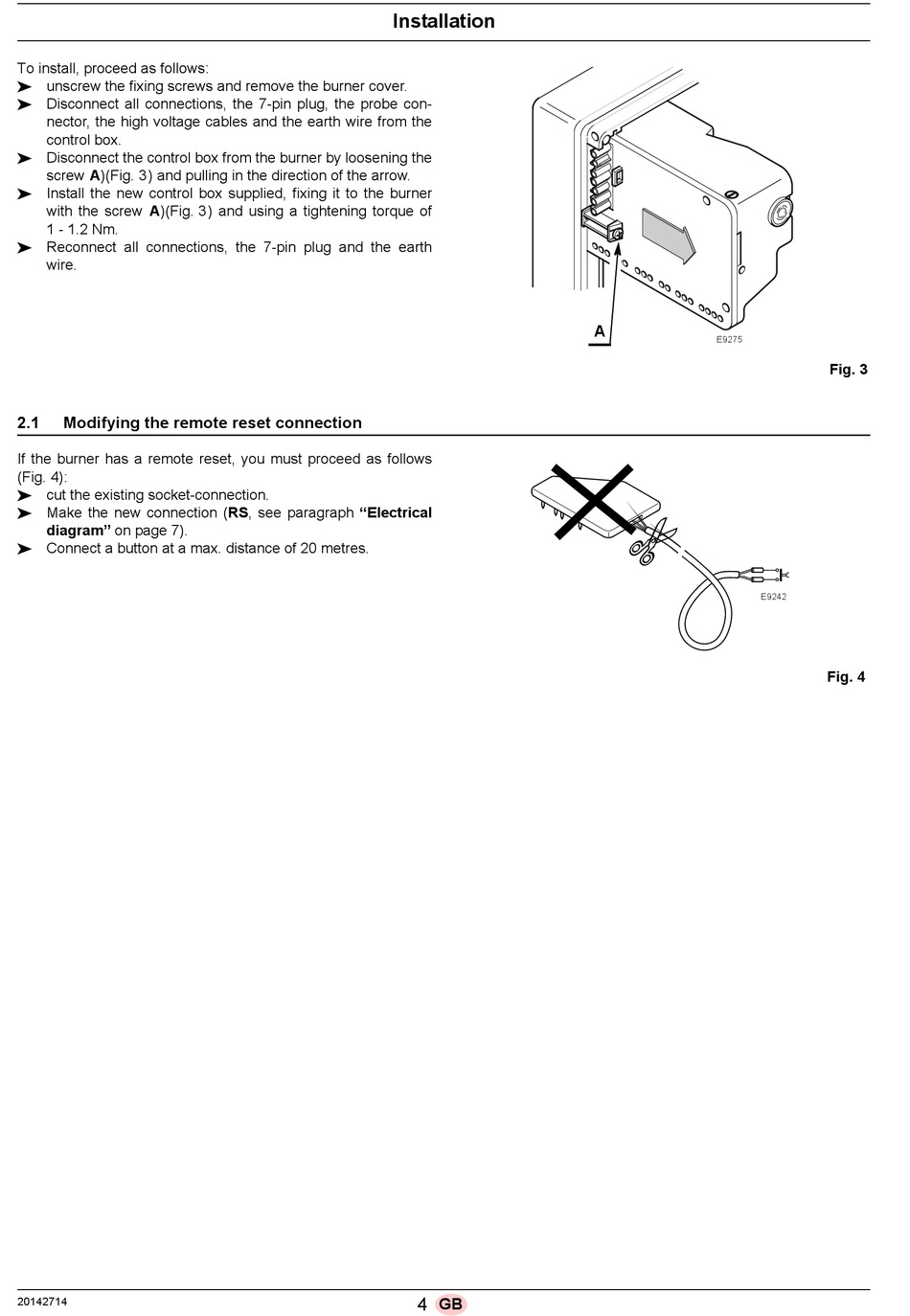

To install, proceed as follows:
 unscrew the fixing screws and remove the burner cover.
 Disconnect all connections, the 7-pin plug, the probe con-
nector, the high voltage cables and the earth wire from the
control box.
 Disconnect the control box from the burner by loosening the
screw A)(Fig. 3) and pulling in the direction of the arrow.
 Install the new control box supplied, fixing it to the burner
with the screw A)(Fig. 3) and using a tightening torque of
1 - 1.2 Nm.
 Reconnect all connections, the 7-pin plug and the earth
wire.
2.1

Modifying the remote reset connection

If the burner has a remote reset, you must proceed as follows
(Fig. 4):
 cut the existing socket-connection.
 Make the new connection (RS, see paragraph "Electrical
diagram" on page 7).
 Connect a button at a max. distance of 20 metres.
20142714

Installation

4 GB
A
E9275
E9242
Fig. 3
Fig. 4
