Suitable cover plate brands
• Berker by Hager
• Busch-Jaeger
• GIRA
• JUNG
*NIKO plate is not included. Available separately on the EcoDim website via ED10072

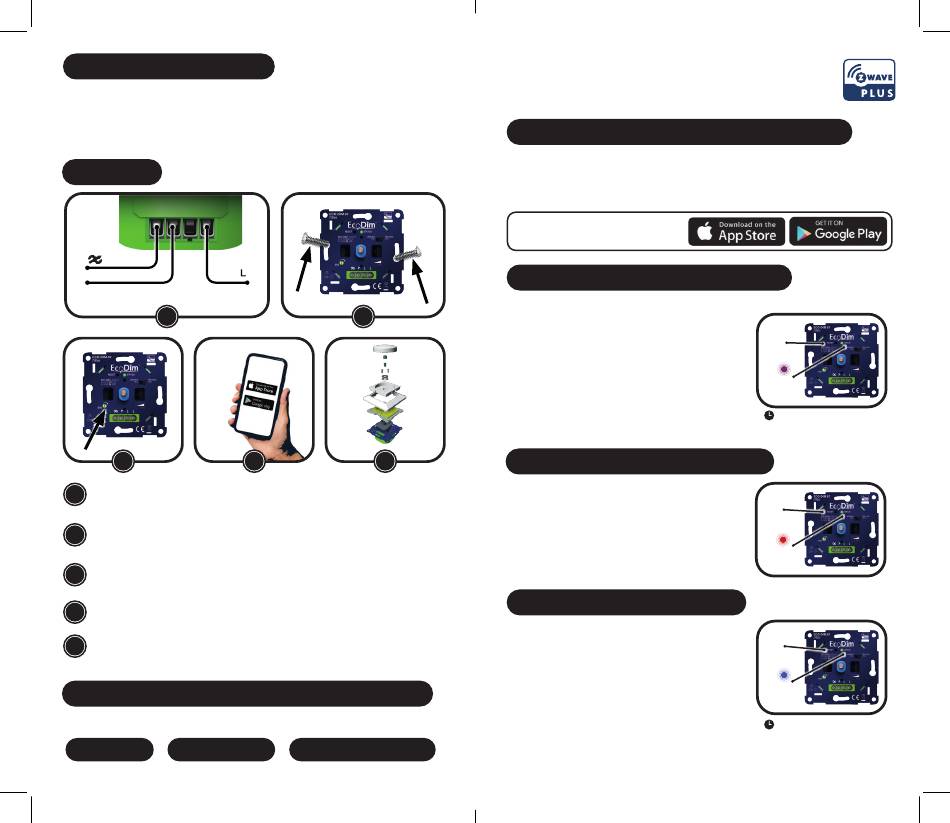

Installation
P
1
3
1
Step 1
Always ensure that the electricity is switched off during installation. Then connect the
power wires as shown in the 'Wiring diagram' .
2
Step 2
Now install the dimmer in the flush-mounting box using the screws.
Step 3
3
Switch the electricity on again. Turn on the connected lamps using the dimmer shaft.
Now set MIN as indicated under 'Setting min. light level'.
4
Step 4
Now link the dimmer to your SMART home system.
5
Step 5
Replace the cover frame, the central plate and the 2 dimmer buttons on the dimmer.
Reduction of connection capacity by PowerFactor
When calculating the LED connection power of the dimmer, take into account the PowerFactor
of the dimmable LED lighting. See the global calculation below for this.
NUMBER OF LED LIGHT
=
NOMINAL POWER
SOURCES
Example: 10 lamps * (5W per lamp / 0.8 PowerFactor) = 62.5 Watt
• Kopp
• Merten by Schneider
• Niko*
• PEHA
2
4 5
NOMINAL POWER LED /
*
POWERFACTOR.
ECO-DIM.07 Z-Wave
Suitable for Z-Wave home automation systems
• Google Assistant/ • FIBARO
Home (Z-Wave hub • Homee
required) • FutureHome
• Homey • WINK
DOWNLOAD THE APP AT:
Remove dimmer from Z-Wave network
Method 1: From your Z-Wave hub interface, choose to
remove or reset the device according to the instructions.
Method 2: Remove from the device using the following
steps:
Step 1. Press the reset button 3 times.
Step 2. The indicator light starts flashing purple and stays
on continuously for 10 seconds when done, timeout 3
minutes.
Resetting dimmer (factory settings)
Press and hold the reset button for 5 seconds, the
indicator will remain red for 10 seconds.
Please note that all configuration parameters are reset
after the device is reset or removed from the network.
Switch dimmer to pairing mode
Remove the device from the previous Z-Wave network if it
has already been added, otherwise pairing will fail.
Press the reset button twice.
The indicator light starts flashing blue and stays on for 10
seconds when pairing succeeds. If it fails, you will get a
timeout of 15 min.
Press 3
times
LED turns
purple
(10 sec)
3 min. timeout
Press for 5
seconds
LED turns
red
(10 sec)
Press for 5
seconds
LED turns
blue
(10 sec)
15 min. timeout
