Technical Information
14 Reinstall the base plate with four M5 socket head screws.
15 Connect the electrical connector on the fan cowling to the wiring harness and
reinstall the fan cowling with four M5 socket head screws.
16 Holding the motor cowling in place, stand the pump on the fan cowling.
17 Tighten the four M5 captive screws to secure the motor cowling.
18 Reattach the power cord and confirm proper operation.

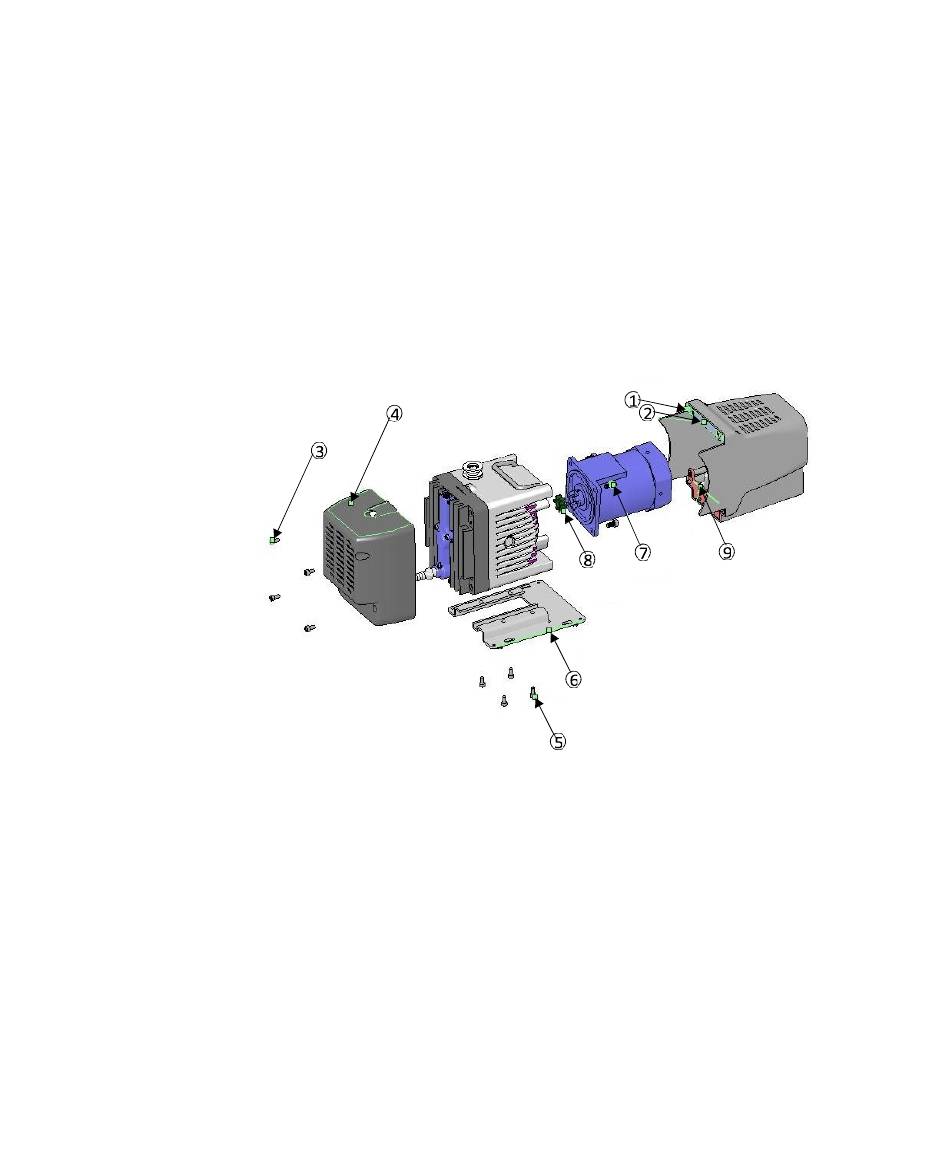

Figure 27 Module Replacement - Exploded View
Agilent IDP-3 Dry Scroll Vacuum Pump User Manual 179
