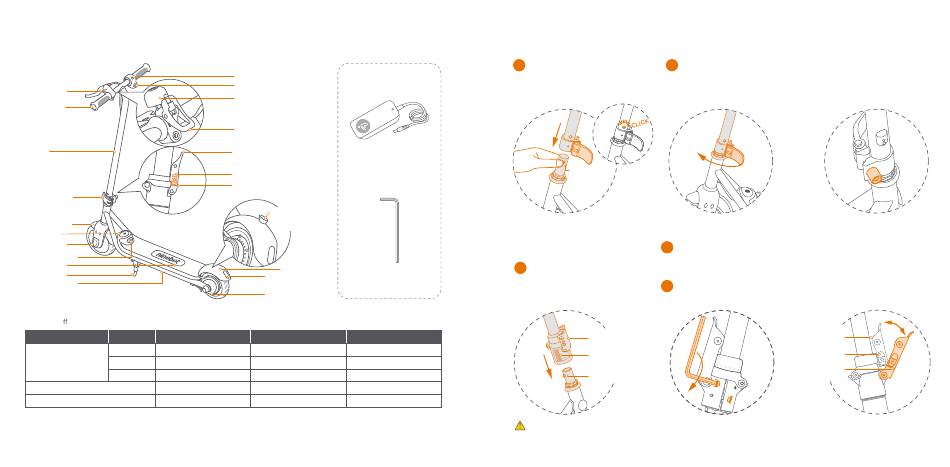

2 Parts and Functions
Please familiarize yourself with each part. This manual uses C10 as an example and pictures are for illustration purposes only.
The actual product may vary.
Brake lever
Handlebar
Stem
Quick-release
clamp
Front fender
Indicator
Hub motor
Charging port
Footboard
Kickstand
Ambient light
* For ZING C10, C15E and C20 only.
Power button
Press the button to power on or change riding modes. The Turbo mode is set as default when turned on. Hold for 2s
to power o .
Model Turbo mode
ZING C8 10 mph (16 km/h)
Max. speed ZING C10 10 mph (16 km/h)
ZING C15E/C20 10 mph (16 km/h)
Indicator solid, with 1 beep
Ambient light (for ZING C10, C15E and C20 only) full-colour pulsing
Battery indication
The color of the indicator shows the battery level: ≥ 10% white, < 10% red.
* When an abnormality occurs, the indicator will flash and an alarm will start beeping.
03
Power button
Accessories
Throttle
Bell
* For ZING C15E and C20 only.
Folding clasp
* For ZING C15E and C20 only.
Battery charger
Folding clamp
* For ZING C15E and C20 only.
Safety clamp
* For ZING C15E and C20 only.
Returning mark
* For ZING C15E and C20 only.
Buckle
* For ZING C15E and
C20 only.
Rear fender
5 mm Allen wrench
Reflector
* For ZING C15E and C20 only.
Brake
Cruise mode Safe mode
10 mph (16 km/h) 6.2 mph (10 km/h)
10 mph (16 km/h) 6.2 mph (10 km/h)
10 mph (16 km/h) 6.2 mph (10 km/h)
blink slowly, with 2 beeps blink fast, with 3 beeps
blue pulsing red pulsing
3 Assembly
ZING C8, ZING C10
Press the quick-release button Flip the quick-release clamp
1 2
and insert the stem into the to the closed position to
front fork. The button will pop secure the stem.
out automatically.
Quick-release
button
ZING C15E, ZING C20 Make sure the folding clamp
2
is closed when installing.
Tighten the two screws
1 Align the positioning groove
alternately several times.
with the positioning screw,
then slide the screw into the Once tightened, attempt to
3
groove and insert the stem wiggle the handlebar to
to the bottom.
ensure it is safely secured.
Folding clamp
Positioning groove
Positioning screw
WARNING
Power off the scooter before assembling. The brake cable should not wrap around the stem.
NOTE: If the stem is shaky,
you can adjust the knob to
tighten it.
Appendix: Folding clamp
Open: Push and hold the
safety clamp to the top and
then open the folding clamp.
Lock: Lock the folding clamp
until the safety clamp
reaches the returning mark.
Folding clamp
Safety clamp
Returning mark
