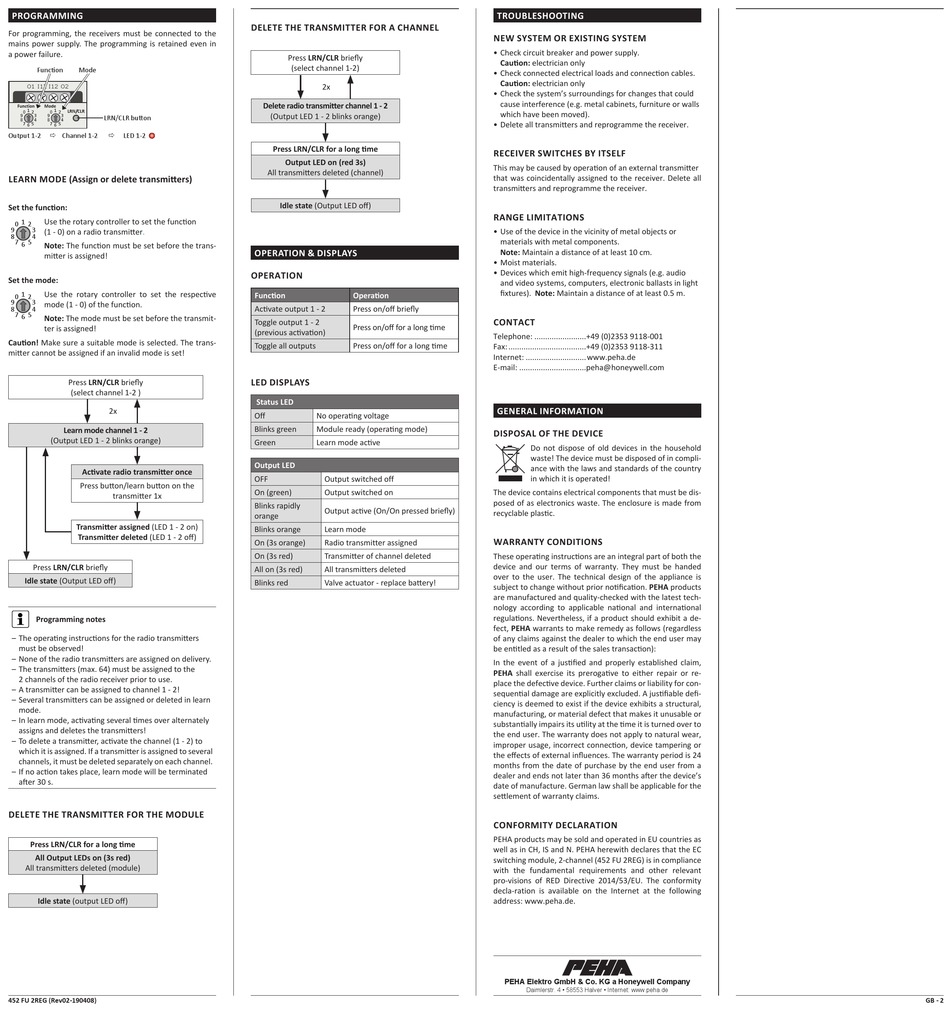

PrOgrAMMing
For programming, the receivers must be connected to the
mains power supply. The programming is retained even in
a power failure.
Function
Mode
O1 I12 I12 O2
Function
Mode
1
1
LRN/CLR
0
2
0
2
9
3
9
3
LRN/CLR button
8
4
8
4
7
5
7
5
6
6
Output 1-2
Channel 1-2
LED 1-2
EC Modular System
Status
454 FU 2REG
1
2
LeArn MODe (Assign or delete transmitters)
channel
3
4
on/off
4 x 10A/240V AC μ
I
max 4x10A / I
max 4x3A
set the function:
M
N
N
Use the rotary controller to set the function
1
0
2
9
3
(1 - 0) on a radio
transmitter.
8
4
7
5
6
10A μ
note: The function must be set before the trans-
10A μ
mitter is assigned!
O3 I34 I34 O4
set the mode:
Use the rotary controller to set the respective
1
0
2
9
3
mode (1 - 0) of the function.
8
4
7
5
6
note: The mode must be set before the transmit-
ter is assigned!
Caution! Make sure a suitable mode is selected. The trans-
mitter cannot be assigned if an invalid mode is set!
Press Lrn/cLr briefly
(select channel 1-2 )
2x
Learn mode channel 1 - 2
(Output LED 1 - 2 blinks orange)
Activate radio transmitter once
Press button/learn button on the
transmitter 1x
transmitter assigned (LED 1 - 2 on)
transmitter deleted (LED 1 - 2 off)
Press Lrn/cLr briefly
idle state (output LED off)
Programming notes
– The operating instructions for the radio transmitters
must be observed!
– None of the radio transmitters are assigned on delivery.
– The transmitters (max. 64) must be assigned to the
2 channels of the radio receiver prior to use.
– A transmitter can be assigned to channel 1 - 2!
– Several transmitters can be assigned or deleted in learn
mode.
– In learn mode, activating several times over alternately
assigns and deletes the transmitters!
– To delete a transmitter, activate the channel (1 - 2) to
which it is assigned. If a transmitter is assigned to several
channels, it must be deleted separately on each channel.
– If no action takes place, learn mode will be terminated
after 30 s.
DeLete the trAnsMitter fOr the MODuLe
Press Lrn/CLr for a long time
All Output LeDs on (3s red)
All transmitters deleted (module)
idle state (output LED off)
452 FU 2REG (Rev02-190408)
DeLete the trAnsMitter fOr A chAnneL
Press Lrn/cLr briefly
(select channel 1-2)
2x
delete radio transmitter channel 1 - 2
(Output LED 1 - 2 blinks orange)
Press Lrn/CLr for a long time
Output LeD on (red 3s)
All transmitters deleted (channel)
idle state (output LED off)
OPerAtiOn & DisPLAys
OPerAtiOn
Function
operation
Activate output 1 - 2
Press on/off briefly
Toggle output 1 - 2
Press on/off for a long time
(previous activation)
Toggle all outputs
Press on/off for a long time
LeD DisPLAys
status LeD
Off
No operating voltage
Blinks green
Module ready (operating mode)
Green
Learn mode active
Output LeD
OFF
Output switched off
On (green)
Output switched on
Blinks rapidly
output active (on/on pressed briefly)
orange
Blinks orange
Learn mode
On (3s orange)
Radio transmitter assigned
On (3s red)
Transmitter of channel deleted
All on (3s red)
All transmitters deleted
Blinks red
Valve actuator - replace battery!
trOubLeshOOting
new systeM Or existing systeM
• Check circuit breaker and power supply.
Caution: electrician only
• Check connected electrical loads and connection cables.
Caution: electrician only
• Check the system's surroundings for changes that could
cause interference (e.g. metal cabinets, furniture or walls
which have been moved).
• Delete all transmitters and reprogramme the receiver.
receiVer switches by itseLf
This may be caused by operation of an external transmitter
that was coincidentally assigned to the receiver. Delete all
transmitters and reprogramme the receiver.
rAnge LiMitAtiOns
• Use of the device in the vicinity of metal objects or
materials with metal components.
note: Maintain a distance of at least 10 cm.
• Moist materials.
• Devices which emit high-frequency signals (e.g. audio
and video systems, computers, electronic ballasts in light
fixtures). note: Maintain a distance of at least 0.5 m.
cOntAct
Telephone: ........................+49 (0)2353 9118-001
Fax: ....................................+49 (0)2353 9118-311
Internet: ............................www.peha.de
E-mail: ...............................peha@honeywell.com
generAL infOrMAtiOn
DisPOsAL Of the DeVice
Do not dispose of old devices in the household
waste! The device must be disposed of in compli-
ance with the laws and standards of the country
in which it is operated!
The device contains electrical components that must be dis-
posed of as electronics waste. The enclosure is made from
recyclable plastic.
wArrAnty cOnDitiOns
These operating instructions are an integral part of both the
device and our terms of warranty. They must be handed
over to the user. The technical design of the appliance is
subject to change without prior notification. PehA products
are manufactured and quality-checked with the latest tech-
nology according to applicable national and international
regulations. Nevertheless, if a product should exhibit a de-
fect, PehA warrants to make remedy as follows (regardless
of any claims against the dealer to which the end user may
be entitled as a result of the sales transaction):
In the event of a justified and properly established claim,
PehA shall exercise its prerogative to either repair or re-
place the defective device. Further claims or liability for con-
sequential damage are explicitly excluded. A justifiable defi-
ciency is deemed to exist if the device exhibits a structural,
manufacturing, or material defect that makes it unusable or
substantially impairs its utility at the time it is turned over to
the end user. The warranty does not apply to natural wear,
improper usage, incorrect connection, device tampering or
the effects of external influences. The warranty period is 24
months from the date of purchase by the end user from a
dealer and ends not later than 36 months after the device's
date of manufacture. German law shall be applicable for the
settlement of warranty claims.
cOnfOrMity DecLArAtiOn
PEHA products may be sold and operated in EU countries as
well as in CH, IS and N. PEHA herewith declares that the EC
switching module, 2-channel (452 FU 2REG) is in compliance
with the fundamental requirements and other relevant
pro-visions of RED Directive 2014/53/EU. The conformity
decla-ration is available on the Internet at the following
address: www.peha.de.
PEHA Elektro GmbH & Co. KG a Honeywell Company
Daimlerstr. 4 • 58553 Halver • Internet: www.peha.de
gb - 2
