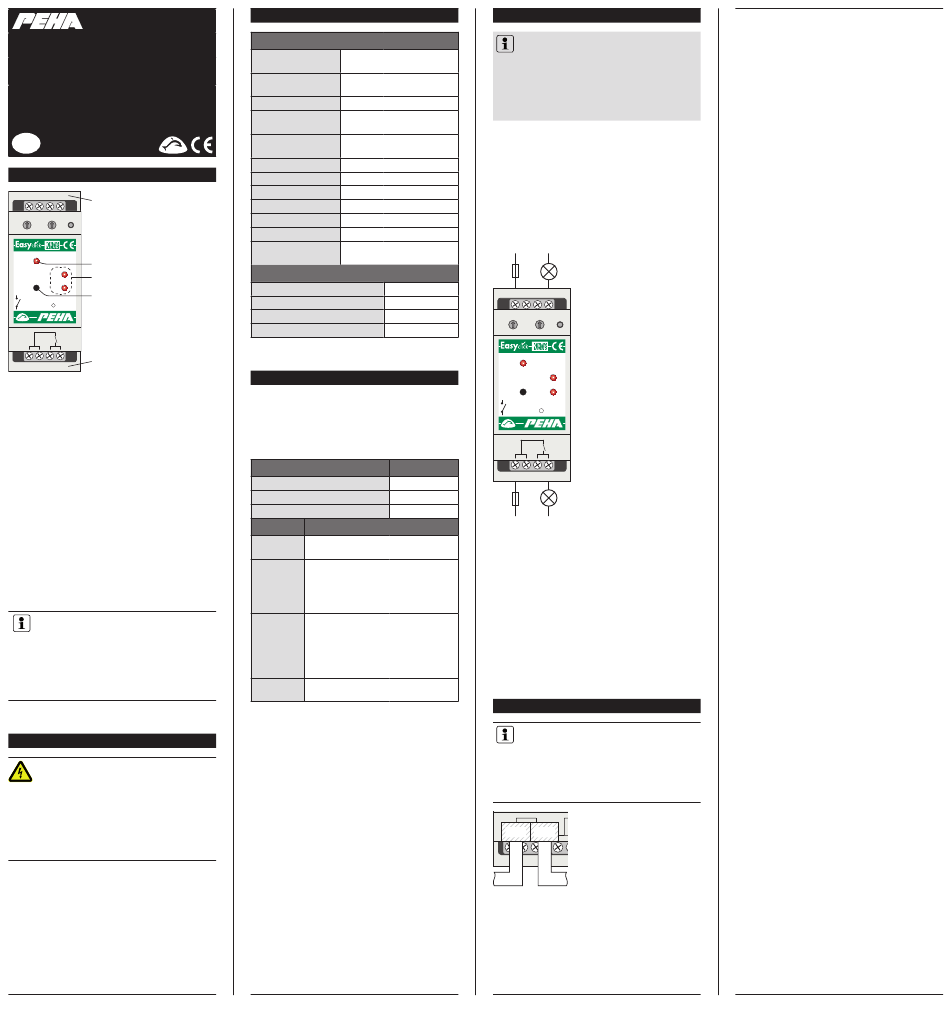

elektro gmbh & co. Kg
452 fu 2reg
ec switching module, 2-channel
installation & operating instructions
GB
structure & DescriPtiOn
I1 I1 O1 O1
Consumer output 1
Terminal I1, O1
Function
Mode
1
1
0
2
0
2
LRN/CLR
9
3
9
3
8
4
8
4
7
5
7
5
6
6
EC Modular System
452 FU 2REG
Status
Status LED
1
Output LEDs
channel
2
on/off
Button on/off
2 x 16A/240V AC μ
I
max 2x16A / I
max 2x3A
M
N
N
16A μ
Consumer output 2
Terminal I2, O2
I2 I2 O2 O2
The switching module is part of the Easyclick (EC) modular
system developed by PEHA. The system is based on radio
transmitters and receivers which operate at 868.3 MHz fre-
quency, to wirelessly control consumers.
When a transmitter sends a signal to the switching mod-
ule (radio receiver), a switching function is performed. The
function can be individually programmed for each radio
transmitter. Pressing "on/off" on the switching module also
enables operation.
The function switches the electrical consumers that are con-
nected to the outputs, such as bulbs, HV halogen lamps, or
inductive loads.
• Programmable function for each assigned radio transmitter
• Rotary switch for setting function and mode
• Modular sockets and plugs for data connection and
voltage supply to further modules.
• Max. 128 modules per system (including aerial module)
• Bidirectional functions (transmit/receive) integrated.
notes:
– Read through the operating instructions carefully before
putting the device into service.
– Radio transmitters (max. 64) must be assigned to the out-
puts (channels) on the switching module prior to use!
– The operating instructions for the radio transmitters
must be observed
sAfety
Vorsicht! Kontamination
Vorsicht, Gefahr durch
Vorsicht, Gefahr durch
Abquetschen
Abschneiden
cAutiOn! Danger of electrical shock! the housing
contains current-carrying components. contact can
lead to personal injury! All work on the mains net-
Vorsicht, Gefahr durch
work and the device may only be performed by an
Vorsicht, Gefahr durch
Vorsicht, Gefahr durch
elektrischen Strom
elektromagnetische
explosionsgefährliche
Strahlung
Stoffe
authorised electrician.
• Disconnect power supply from the device.
• Secure the device against being powered on again.
• Check that the device is powered off.
Vorsicht, Gefahr durch
Vorsicht, Gefahr durch
Vorsicht, Gefahr durch
• Close the housing securely before applying power.
Laserstrahlung
Radioaktivität
Rutschen
This device is only intended to be used for its stated appli-
cation. Unauthorised conversions, modifications or changes
are not permissible! This device may not be used in conjunc-
Vorsichtig verschieben!
Während der
Wandbrände nicht von
tion with other devices whose operation could present a
- veraltet -
Schweißarbeiten,
oben löschen
Arbeitsstelle beobachten
hazard to people, animals or property.
the following must be observed:
• Prevailing statutes, standards and regulations.
• State-of-the-art technology at the time of installation.
Wandhydrant, mit Angabe
Wareneingang -
Wareneingang - Gesperrt
des Anschlusses
Freigegeben
• The device's operating instructions.
• operating instructions can only cite general stipulations.
These are to be viewed in the context of a specific system.
452 FU 2REG (Rev02-190408)
technicAL DAtA
general data
Standby
own consumption
operation = 46 mA/ 1,1W
Power supply
Nom. 24 V DC (SELV)
Modular System
via modular sockets
Transmit frequency
868,3 MHz
Consumer output
2 potential-free relay outputs
(Terminal
)
(switching capacity max. 16A)
O1-O4
Consumer voltage
External voltage supply
(Terminal
)
230-240V ~ / 50-60 Hz
I12-I34
Ambient temperature
-20 to +40 °C
Storage temperature
-40 to +85 °C
Screw terminals
max. 2 x 1,5 mm²
Test specifications
EN 60669-2-1
Identification
KEMA KEUR ; CE
Protection level
IP20
Width = 38 mm (2TE)
Dimensions
Height = 55 mm
Load specifications per consumer output (230V~ / 50Hz)
Light bulbs (ohmic)
HV-halogen lamps
Motor load
Uncompensated fluorescent tubes
rAnge
Radio signals are electromagnetic waves. The farther away
the transmitter is, the weaker is the field strength surround-
ing the receiver. As such, the range is limited. Different ma-
terials or interference sources in the direction of the signals
can further reduce the range. The range can be increased by
the use of Easyclick Repeaters (radio amplifiers).
Material
Wood, plaster, non-coated glass
Masonry, wood/plaster walls
Reinforced concrete
range
conditions
Under good conditions
> 30 m
(large, clear space without obstructions).
Through up to 5 plaster/drywall board
walls or 2 plasterboard/partition walls
> 20 m
(furniture and people in the room):
For transmitter and receiver with good ae-
rial positioning/layout.
Through up to 5 plaster/drywall board
walls or 2 plasterboard/partition walls
(furniture and people in the room):
> 10 m
For receivers installed in walls or corners
of rooms, receivers with internal aerial or
narrow corridors.
Through 1-2
Depending on ceiling/wall armouring and
ceilings/walls
type of aerial in the receiver.
note: Go to www.peha.de for further information on "Range".
Vorsicht, Gefahr durch
Abstürzen
Vorsicht, Gefahr durch
feuergefährliche Stoffe
Vorsicht, Gefahr durch
Stolpern
Wandbrände von unten
nach oben löschen
Wärmeabzugseinrichtung
instALLAtiOn & cOMMissiOning
important installation information !
= 0,25W
Installation and commissioning may only be performed by
an authorised electrician. Mains power (100-240V~/50-60
Hz) to electrical equipment must be switched off during
installation.
Applicable laws and standards of the country in which the
device is operated must be observed!
AsseMbLy
The module is designed for installation on a 35mm DIN rail
in accordance with EN 50022 in a flush-mounted or surface-
mounted distributor housing with bolted cover. The devices
can be mounted directly next to each other.
instALLAtiOn
L1
N
F
2500 W
I1 I1 O1 O1
1500 W
Function
Mode
3 A
1
1
0
2
0
2
LRN/CLR
9
3
9
3
8
4
8
4
18 x 58 W
7
5
7
5
6
6
EC Modular System
452 FU 2REG
Status
1
channel
2
on/off
2 x 16A/240V AC μ
I
max 2x16A / I
max 2x3A
M
N
N
16A μ
reduction
I2 I2 O2 O2
0 - 10%
5 - 35%
F
10 - 90%
L2
N
• Install the switching module in a suitable location.
• Install the device as shown in wiring diagram.
• Protect consumer voltage cables (230V ~ )
with circuit breakers (F = 16 A).
Make sure the loads are evenly distributed!
cOMMissiOning
• Install the switching module.
• Switch on electrical system.
I1 I1 O1
I2 I2
• Assign transmitters (max. 64) to the receiver's channels
(see PRoGRAMMING).
Function
Mode
1
1
0
2
0
2
9
3
9
3
8
4
8
4
7
5
7
5
6
6
MODuLe bus MODuLAr systeM
Status
Connection notes
1
– Do not lay the bus line parallel to the consumer and
channel
mains cables!
3
on/off
– observe the max. cable length (1000 m) of the system!
4 x 10A/240V AC μ (I
– Switch off power supply before connecting or disconnec-
ting bus line
10A μ
IN
oUT
I3 I3 O3
I4 I4
O2
LRN/CLR
10A μ
EC Modular System
454 FU-SPV 4REG
2
~
100-240 V AC
24 V DC
50-60 Hz
0,3 A
–
4
max 4x10A / I
max 4x3A)
M
N
N
The oUT socket and bus line serve
as the data connection between the
10A μ
switching module and other mod-
24V
A
B
0V
ules.
The connection also supplies the
O4
L
N
voltage (24 V DC) to the down-
stream modules.
gb - 1
