Terminal block

DANGER
Risk of fatal injury from high voltage when current transformers
disconnected!
In transformer connected meters, the high voltage generated on a
disconnected current transformer can cause fatal injuries, and will
destroy the current transformer.
Before disconnecting the current paths, short-circuit the secondary
circuits of the current transformer at its testing terminals.
ATTENTION
Damage through overload and arcing!
Fuse-protect transformer connected meters in the voltage circuit
with a pre-fuse of ≤ 6 A in accordance with the applicable technical
regulations.

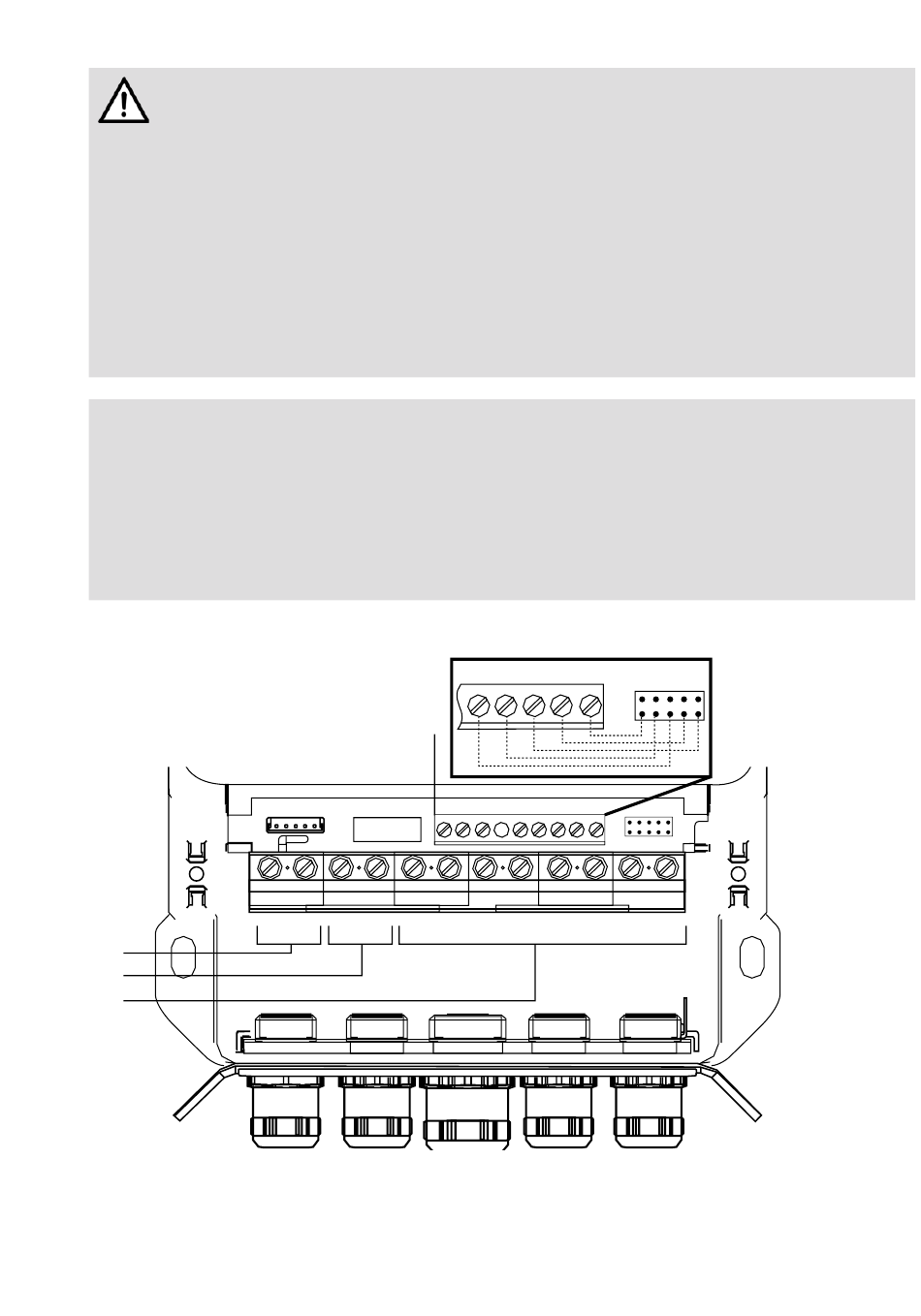

Front view of terminal block:
1
2
3
1 - Modem supply
2 - Auxiliary voltage
3 - Test inputs
4 - Additional terminals
4
13 14 15
FW 1.23
1 2 3 4 5
16 17 18 19 20
16 17 18 19 20
6 7 8 9 10 11 12
32
20 17 16 19 18
