INSTALLATION
A
1
2

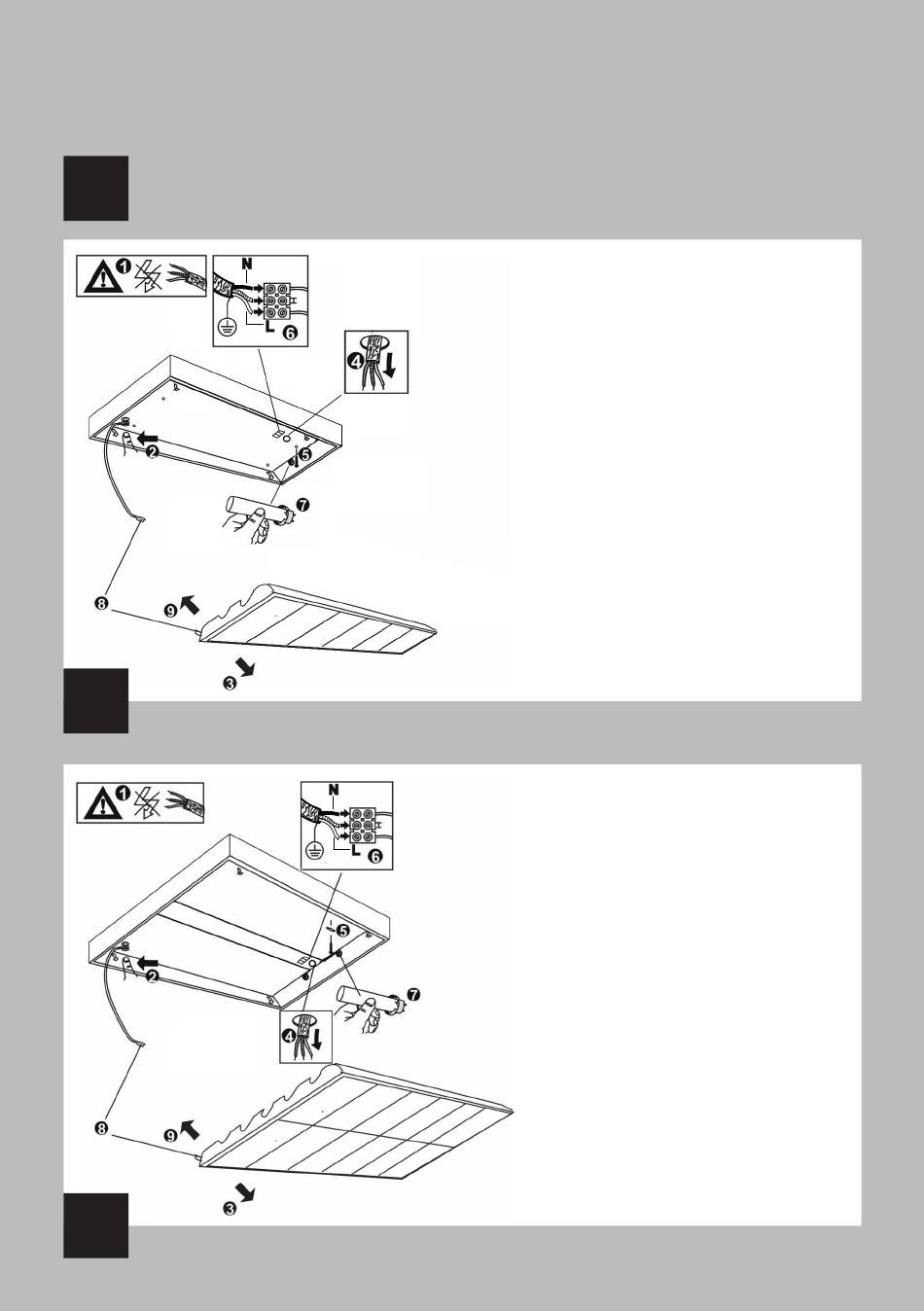

Connection and mounting
(one tube):
Remove the protective cover from the lamp before
use.
1. Disconnect the power supply and turn off the
house fuse.
2. Operate the spring fastener and unhook it.
3. Remove the grille.
4. Lead the connection cable (NYM-J;
min. 1.5mm² to max. 2.5mm², Ø 8 to 12mm)
into the housing.
5. Dowel or screw the lamp to the ceiling, using
all fixing points. Pay attention to flush-mounted
cables when drilling.
6. If necessary, strip and strip the insulation from
the cable. Then connect the connecting cable
(3-wire cable).
7. Mount the LED tube supplied.
8. Ground the grille by connecting the intended
ground cable to the grille.
9. Fit the grille and lock it in place using the spring
fastener.
Connection and mounting
(two tubes):
Remove the protective cover of the lamps before
use.
1. Work without voltage and switch off the house
fuse.
2. Operate the spring fastening and unhook it.
3. Remove the grille.
4. Lead the connection cable (NYM-J;
min. 1.5mm² to max. 2.5mm², Ø 8 to 12mm)
into the housing.
5. Dowel or screw the lamp to the ceiling, using
all fixing points. Pay attention to flush-mounted
cables when drilling.
6. If necessary, strip and strip the insulation from
the cable. Then connect the connecting cable
(3-wire cable).
7. Mount the LED tubes supplied.
8. Ground the grille by connecting the intended
grounding cable to the grille.
9. Fit the grille and lock it in place using the spring
fastener.
