C. IR Extending Function
1. Connect the IR emitter to the CSW320 Transmitter. And then
place the emitter probe in front of the source device's IR
receiver.
2. Connect the IR receiver to the CSW320 Receiver. And then place
the receiver probe in front.
3. Use the remote control of your source device to control the
source from the CSW320 Receiver.
(If you don't need the IR extending function, please skip this step )

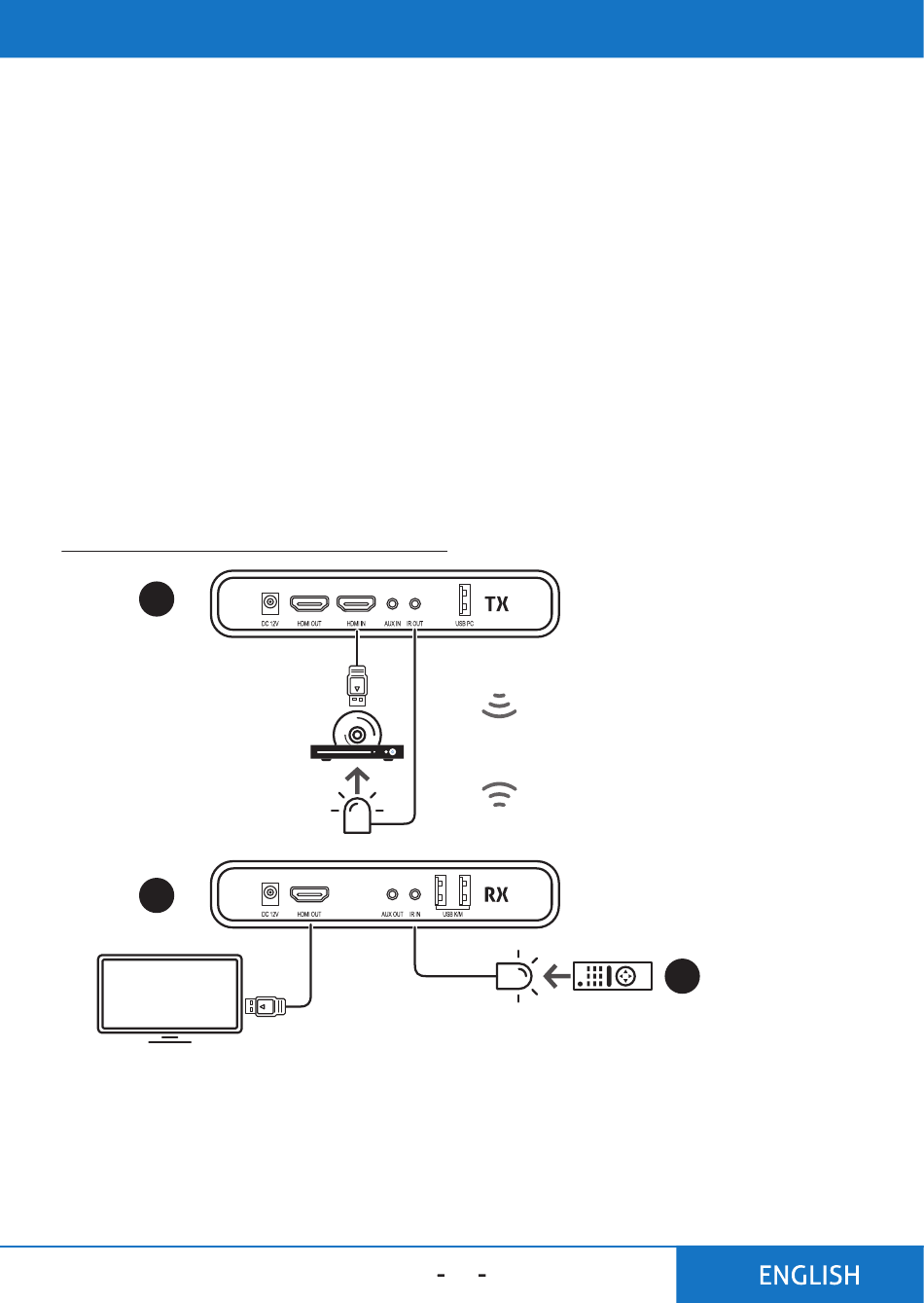

Schematic connection diagram:
1
2
Monitor
NOTE: Please do not cover CSW320 transmitter and receiver with
any object! Those objects can block the air circulation and casue
serious defects and injuries. The warranty will also be void.
Device
19
