B. Connection & Pairing
2. Connection in Switch Mode (1 to 1; N to 1)
1. Set the toggle switch on both devices (receiver and transmitter)
to "Switch Mode (SW)".
2. Connect the receiver device (RX - HDMI Out) to a monitor and
connect the power supply (12V/1A) to display the output by the
receiver (RX).
3. Connect (after pairing) the transmitter device to a source/ device
(TX - HDMI In) and to a monitor for loopback function (TX - HDMI
Out) and connect the power supply (12V/1A).

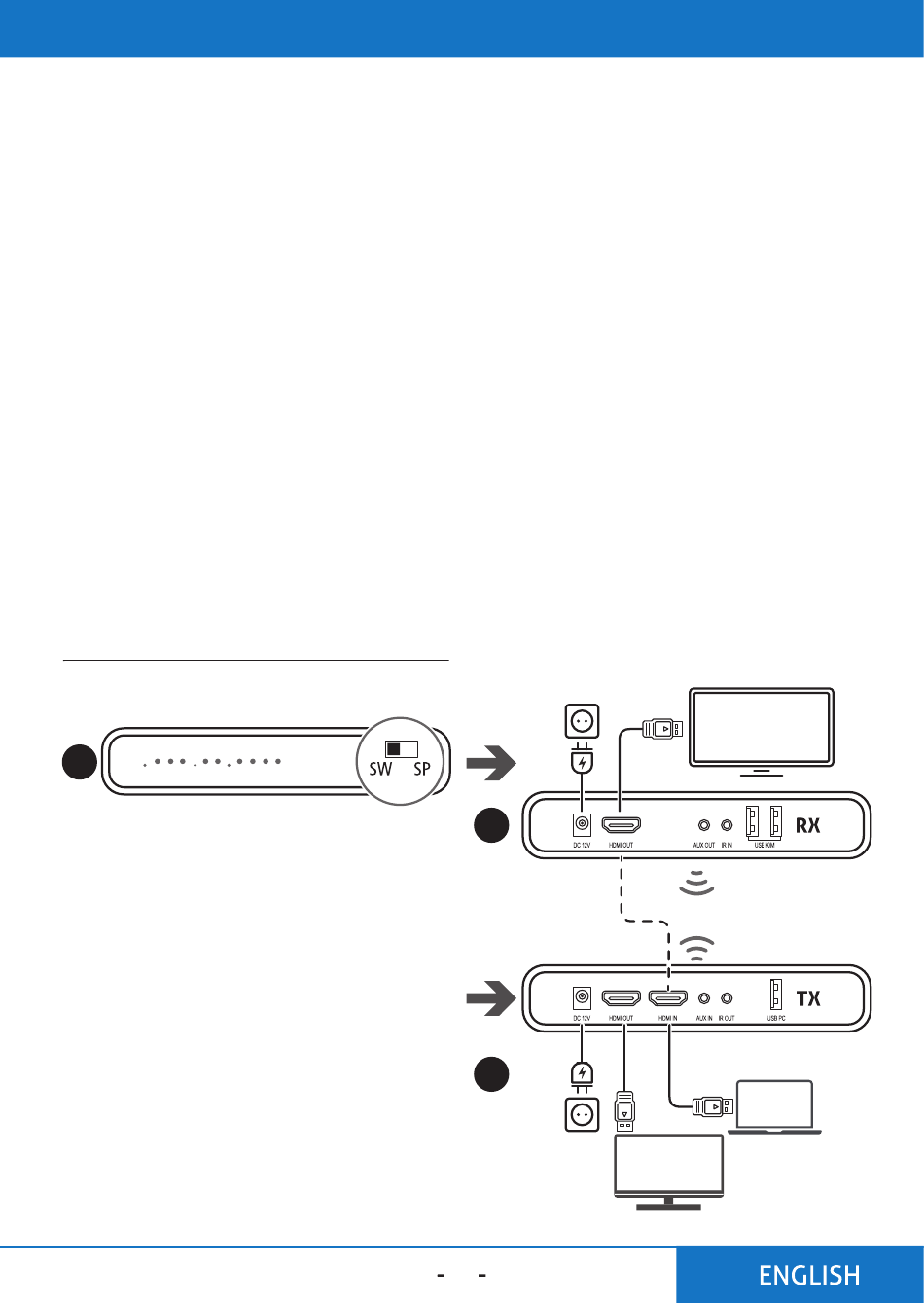

Schematic connection diagram:
1
Power
12V / 1A
2
3
Power
12V / 1A
17
Monitor
Pairing
Device
Monitor
