10 SD memory card slot

11 Mounting bracket

12 Unit casing
13 Spring
14 Fan output connector
15 Dome cover
16 Bottom holes
17 Side holes

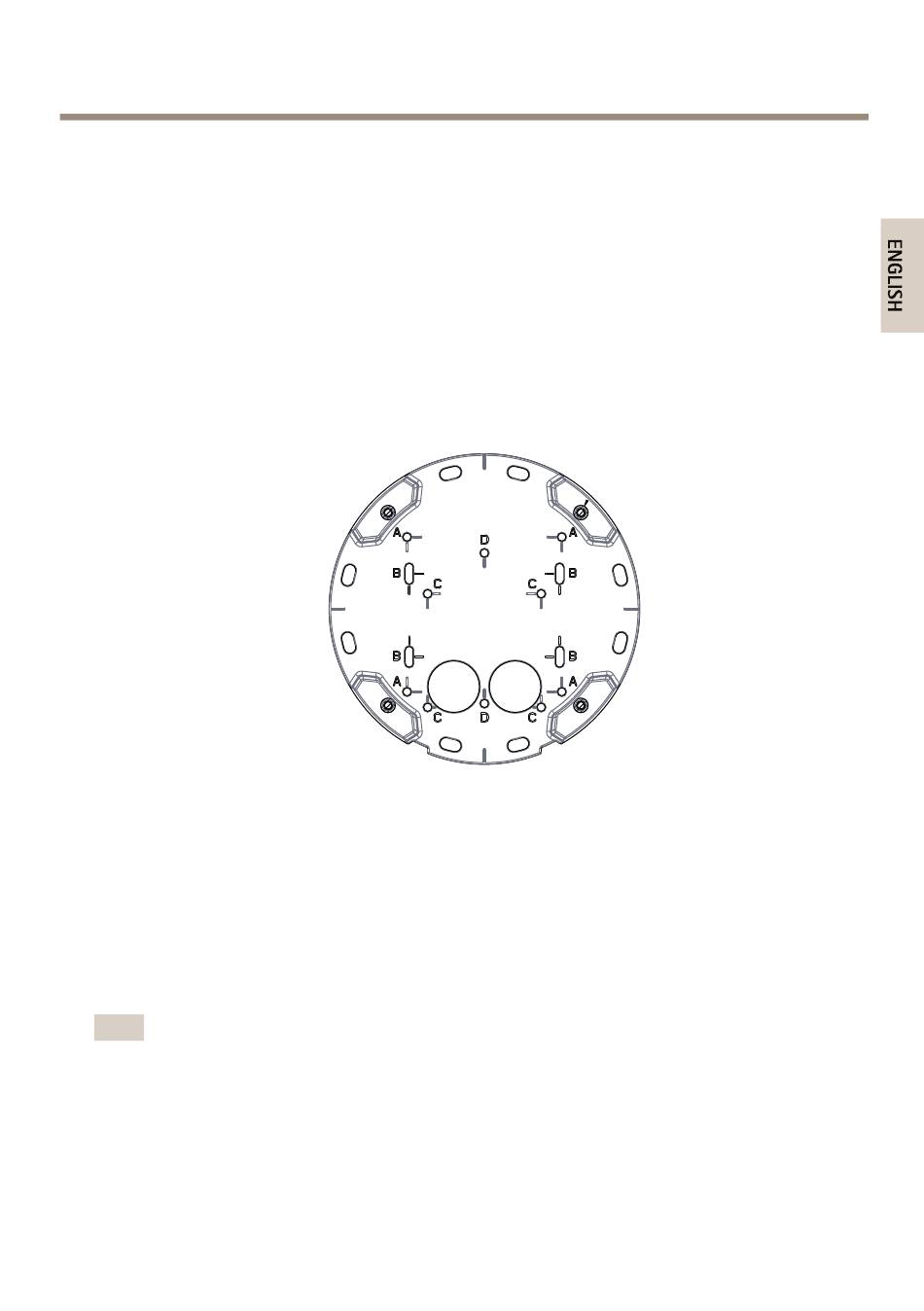

Mounting Bracket
The mounting bracket has 4 mounting patterns (A, B, C, D).
The mounting patterns follow the standard for the following mounting options:
• A: 4 inch square box
• B: standard-sized US double gang junction box
• C: 4 inch octagon box
• D: standard-sized US single gang junction box

LED Indicators

Note
• The Status LED can be configured to be unlit during normal operation. To configure, go
to Setup > System Options > Ports & Devices > LED. See the online help for more
information.
• The Status LED can be configured to flash while an event is active.
• The Status LED can be configured to flash for identifying the unit. Go to Setup > System
Options > Maintenance .
