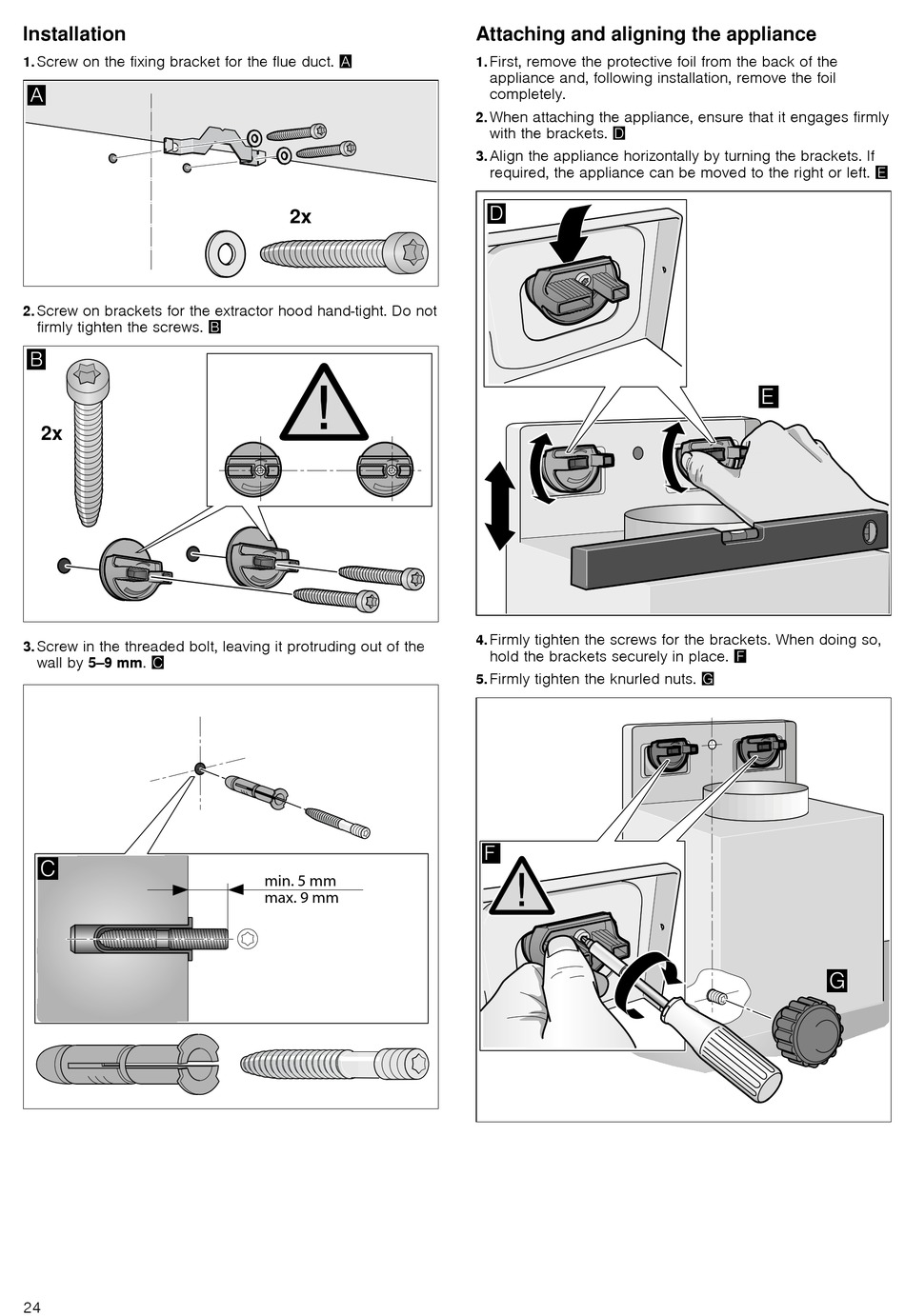

CONSTRUCTA CD876652 Gebrauchs- Und Montageanleitung Seite 24

Installation
Screw on the fixing bracket for the flue duct. ¨
1.
Screw on brackets for the extractor hood hand-tight. Do not
2.
firmly tighten the screws. ©
Screw in the threaded bolt, leaving it protruding out of the
3.
wall by 5–9 mm. ª
24
Attaching and aligning the appliance
First, remove the protective foil from the back of the
1.
appliance and, following installation, remove the foil
completely.
When attaching the appliance, ensure that it engages firmly
2.
with the brackets. «
Align the appliance horizontally by turning the brackets. If
3.
required, the appliance can be moved to the right or left. ¬
Firmly tighten the screws for the brackets. When doing so,
4.
hold the brackets securely in place. ®
Firmly tighten the knurled nuts. ¯
5.
