NexXxoS XP³ Light

SOCKET MOUNTING WITHOUT AMD BACKPLATE

•
First remove the retention module:
• Insert the original threaded bushes back into the socket holes and screw in the 4
threaded bolts.
• Now put the cooler with the bracket onto the screws from above.
• Place the 4 washers and compression springs as shown. Use the knurled nuts to fix
the cooler to the socket. Hand tighten the knurled nuts crosswise.
Alphacool International GmbH
32
Do not use tools.
Tighten only by hand!

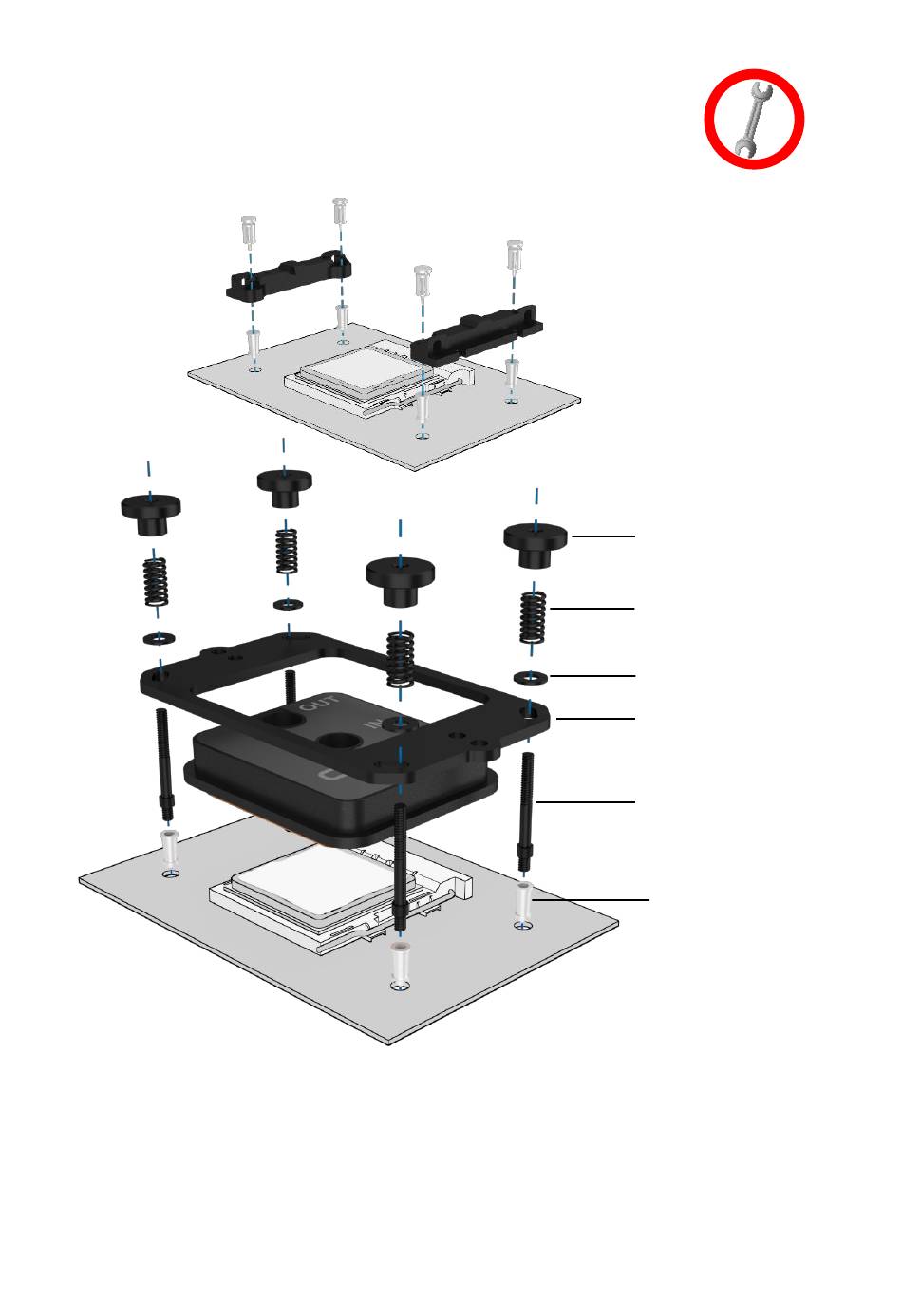

4x knurled nuts
4x springs
4x washers
1x AMD bracket
4x bolts AMD
4x threaded bushes
(from the retention
modul)
