NexXxoS XP³ Light
4.

SOCKET MOUNTING WITH AMD BACKPLATE

If there is no backplate for your mainboard, please note
the mounting example on the next page.

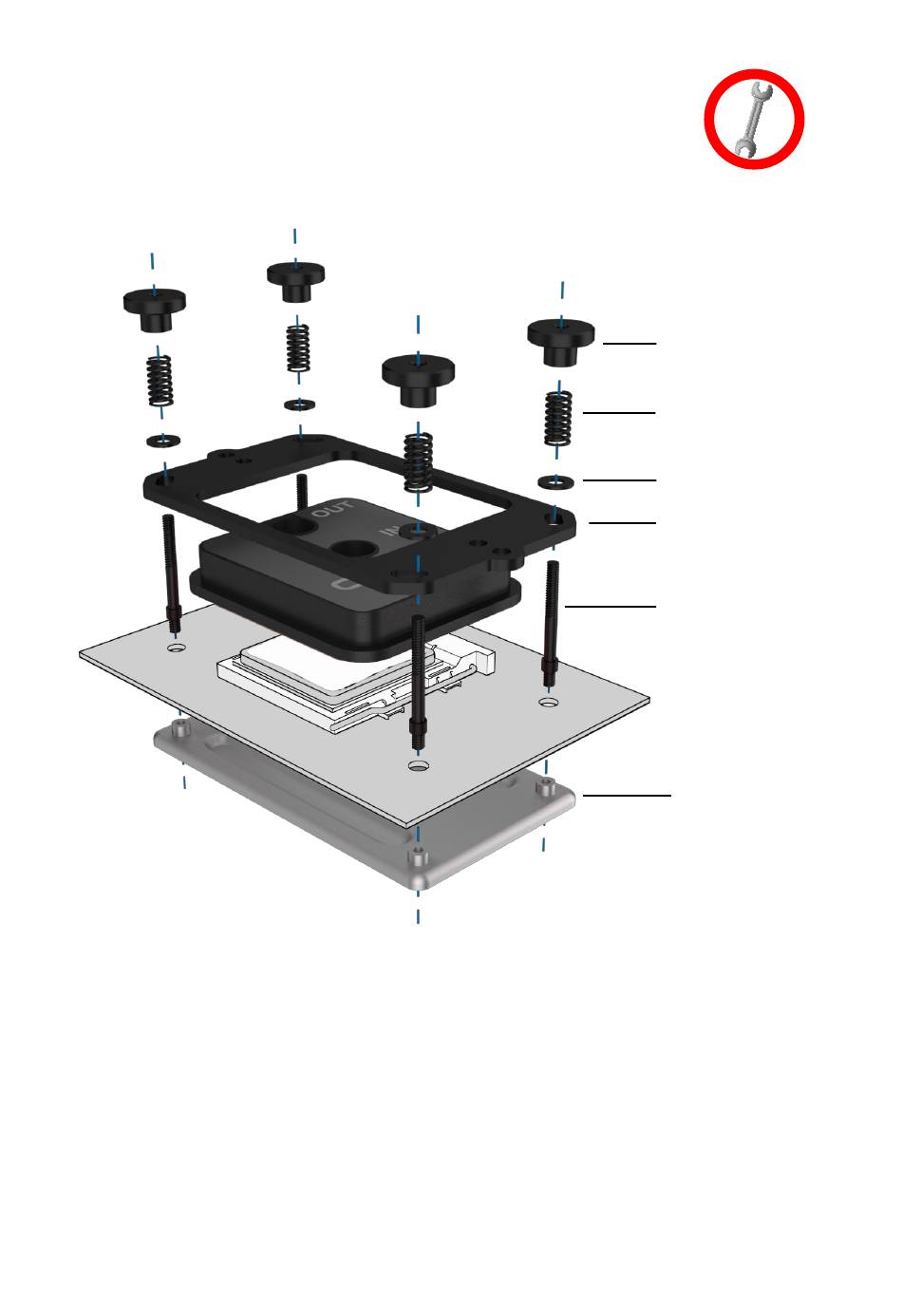

• Place the backplate and fix it from the front with the 4 threaded bolts.
• Now put the cooler with the bracket onto the screws from above.
• Place the 4 washers and compression springs as shown. Use the knurled nuts to fix
the cooler to the socket. Hand tighten the knurled nuts crosswise.
Alphacool International GmbH
31
Do not use tools.
Tighten only by hand!
4x knurled nuts
4x springs
4x washers
1x AMD bracket
4x bolts AMD
1x AMD backplate
