4. Operating instructions
Basically, we recommend the use of a prefilter and
an intake set with an intake hose, an intake strainer
and check valve in order to prevent long repriming
times and any unnecessary damage to the pump
caused by stones and hard foreign bodies.

5. Technical data

Mains supply:
Power rating:
Delivery rate max.
Delivery height max.
Delivery pressure max.
Suction height max.
Delivery and intake connection:
Water temperature max.
Protection type

6. Electrical connections

Connect the power cable to a 230 V ~ 50 Hz
earthed, 10 amp fuse minimum.
The appliance is switched on and off using the
integrated ON/OFF switch.
The motor is protected against overloading or
blocking by an integrated thermostat. In the event
of overheating, the thermostat switches off the
pump automatically. The pump will start up again
automatically after it has cooled down.

7. Fitting a suction pipe

Screw an intake hose (min. 3/4" plastic hose with
spiral reinforcement) either directly or with a
threaded nipple to the pumpʼs intake connection
(1" IG) (see Fig. 1).
The intake hose used should have an intake
12.06.2007
valve. If the intake valve cannot be used, a check
valve should be installed in the intake line.
The intake hose should rise from the water pick-
up point to the pump. Always avoid laying the
intake line higher than the pump. Air bubbles in
the intake line delay and hinder suction.
The intake and pressure lines must be attached in
such a way that they do not place the pump under
any mechanical strain.
The intake valve should be so far immersed in the
water that the pump cannot run dry even if the
water level falls.
If the intake line is not air-tight, the intake of air
will hinder the intake of water.
Avoid drawing in foreign bodies (sand etc.).
If necessary, install a prefilter for this purpose.
1
230V ~ 50 Hz
1100 W
4000 l/h
43 m
4,3 bar
8 m
1" IG
35°C
IPX4
8. Pressure line connection
The pressure line (should be at least 3/4") must
be connected to the pumpʼs pressure line
connection (1" IG) either directly or via a threaded
nipple.
A 1/2" pressure hose can also be used with the
appropriate screw connections, of course, but this
will reduce the delivery rate.
All shut-off devices (spray nozzles, valves etc.) in
the pressure line must be fully opened when
priming so that any air in the intake line can
escape.
7:44 Uhr Seite 7
GB

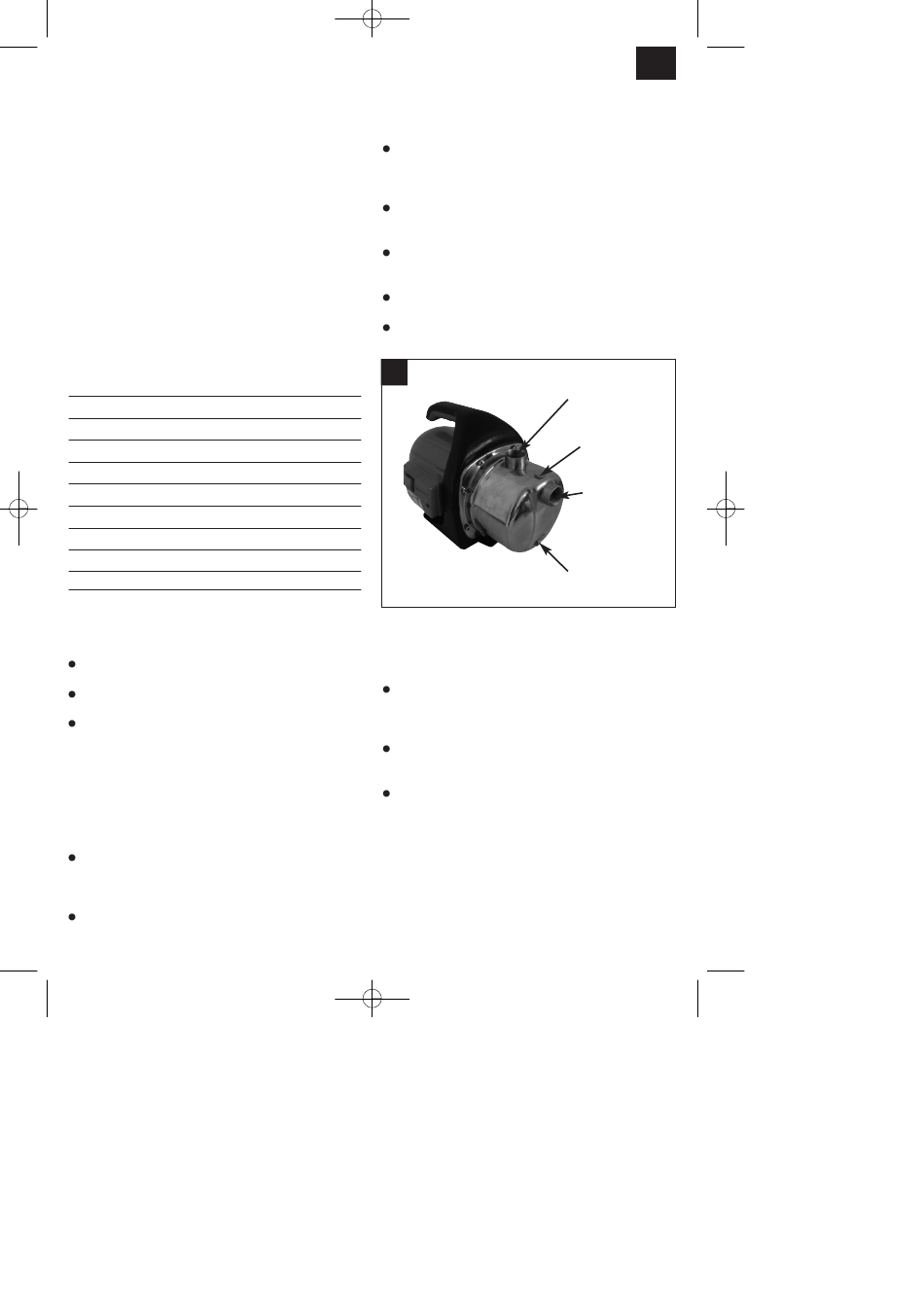

Pressure line
connection
Water filler
screw
Intake line
connection
Water drain
screw
7
