About this manual
Sequence of multi-part action steps
The numerical list indicates an action with multiple necessary steps.
1. Step 1
2. Step 2
3. ...
1.3.2 Pictographs
Pictographs used in the document indicate useful information.

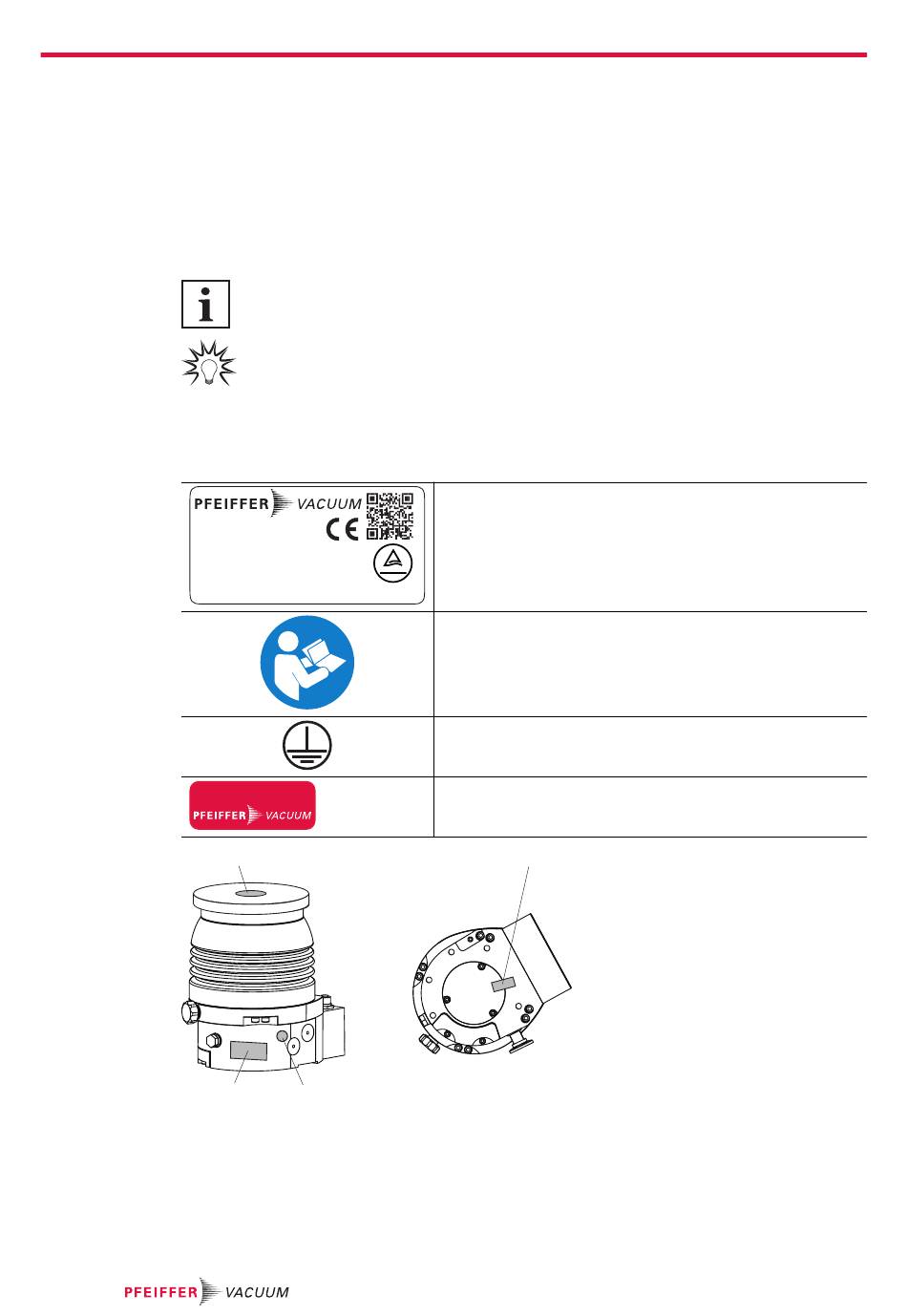

1.3.3 Stickers on the product
This section describes all the stickers on the product along with their meaning.
D-35614 Asslar
Mod.
P/N
S/N
Oil
n, f
Mass
Fig. 1:
1 Operating instructions note
2 Closure seal
60/108
Note
Tip
HiPace 300
PM P03 9
_ _
- - - - - - - - Type 12
IP54
PM -T
_ _ _ _ _ _
TÜV Rheinland
60000 1/min, 1000 Hz
C
Made in Germany
6.2 kg
2021/_ _
warranty seal
1
4 3
Position of the labels on the product
Rating plate
The rating plate of the turbopump is located on the lower part
of the vacuum pump.
Rating plate of the electronic drive unit
The rating plate of the electronic drive unit is located on its out-
US side next to the LEDs.
Operating instructions note
This sticker indicates that this operating instructions must be
read before performing any tasks.

Protection class

This sticker describes protection class 1 for the product. The
positioning indicates the position for the ground connection.
Closure seal
The product is sealed ex-factory. Damaging or removing a clo-
sure seal results in loss of the warranty.
2
3 Information regarding ground connection
4 Rating plate of the turbopump
