Genelec Oy M030
d
B
r
90
A
85
80
75
70
100 200
20 50

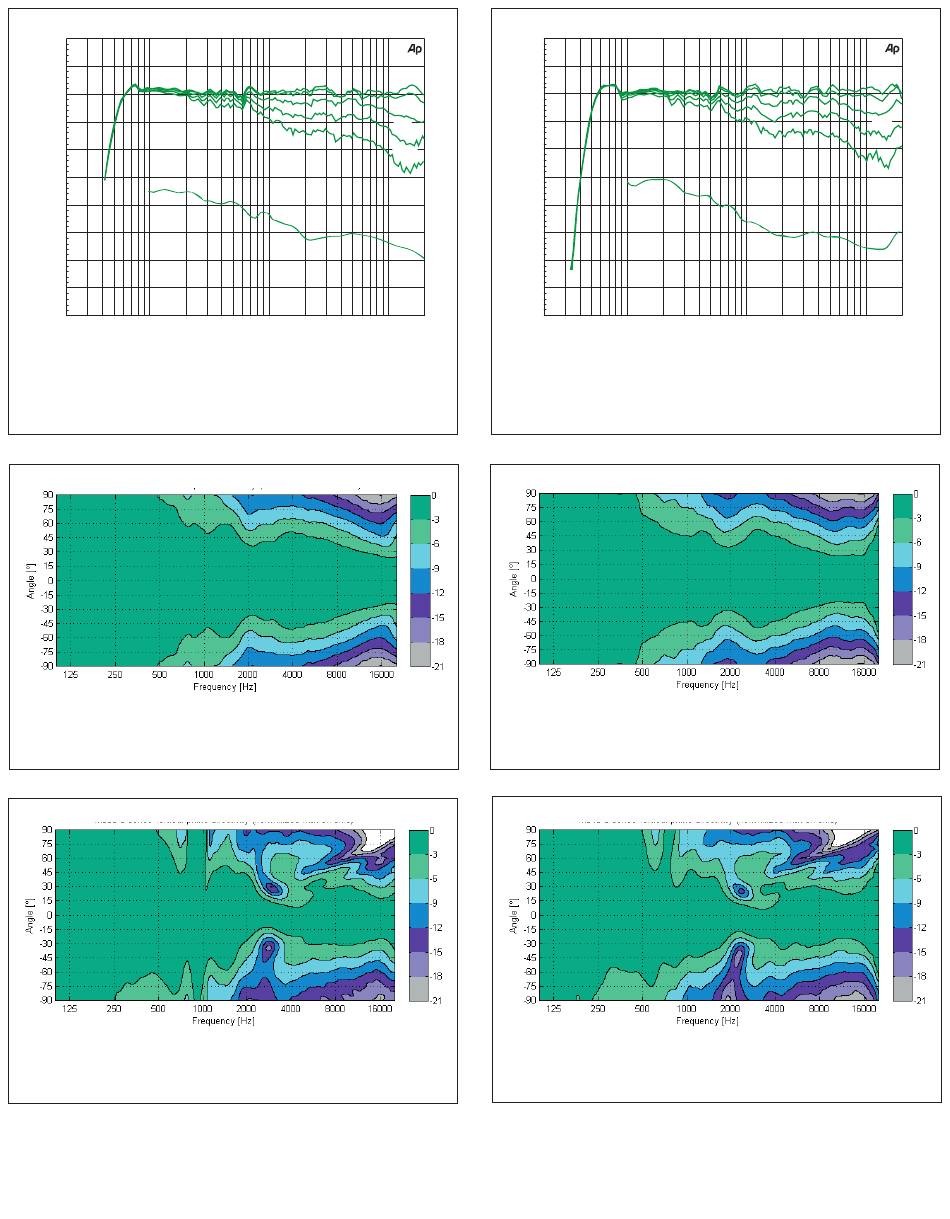

Figure 6. The curves show the horizontal directivity
characteristics of the M030. The lower curve shows
the loudspeaker's power response.
Figure 8. The curves show the horizontal directivity
characteristics of the M030.
Figure 10. The curves show the vertical directivity
characteristics of the M030.
(dBr) vs freq (Hz) 27 May 2013
0°
15°
30°
45°
60°
500 5k
1k 2k 10k
Hz
Genelec Oy M040
d
B
r
90
A
85
80
75
70
20k 20 50
Figure 7. The curves show the horizontal directivity
characteristics of the M040. The lower curve shows the
loudspeaker's power response.
Figure 9. The curves show the horizontal directivity
characteristics of the M040.
Figure 11. The curves show the vertical directivity
characteristics of the M040.
(dBr) vs freq (Hz) 27 May 2013
100 200 500 1k 2k
0°
15°
30°
45°
60°
5k 10k 20k
