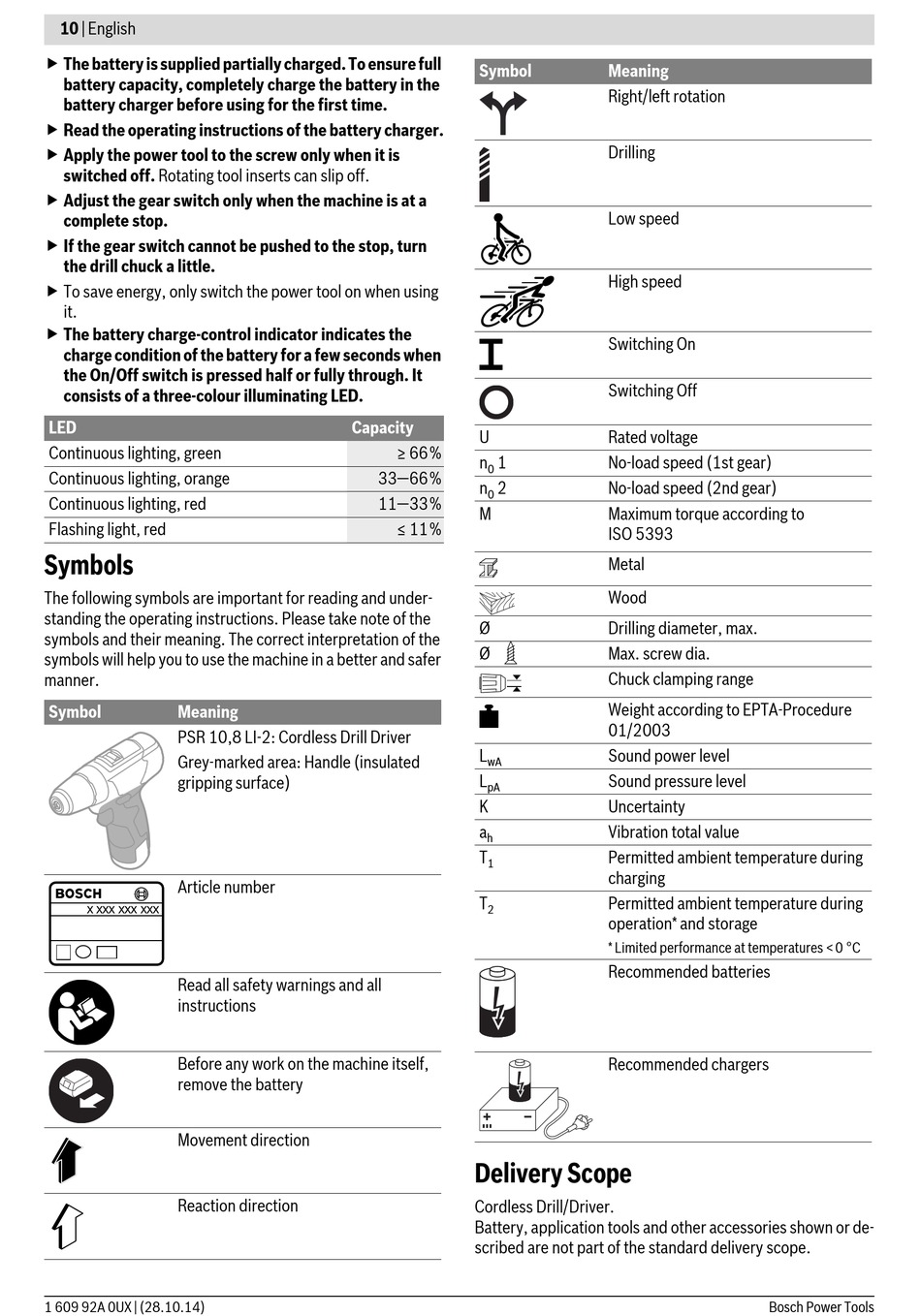

10 | English
 The battery is supplied partially charged. To ensure full
battery capacity, completely charge the battery in the
battery charger before using for the first time.
 Read the operating instructions of the battery charger.
 Apply the power tool to the screw only when it is
switched off. Rotating tool inserts can slip off.
 Adjust the gear switch only when the machine is at a
complete stop.
 If the gear switch cannot be pushed to the stop, turn
the drill chuck a little.
 To save energy, only switch the power tool on when using
it.
 The battery charge-control indicator indicates the
charge condition of the battery for a few seconds when
the On/Off switch is pressed half or fully through. It
consists of a three-colour illuminating LED.
LED
Continuous lighting, green
Continuous lighting, orange
Continuous lighting, red
Flashing light, red
Symbols
The following symbols are important for reading and under-
standing the operating instructions. Please take note of the
symbols and their meaning. The correct interpretation of the
symbols will help you to use the machine in a better and safer
manner.
Symbol Meaning
PSR 10,8 LI-2: Cordless Drill Driver
Grey-marked area: Handle (insulated
gripping surface)
Article number
Read all safety warnings and all
instructions
Before any work on the machine itself,
remove the battery
Movement direction
Reaction direction
1 609 92A 0UX | (28.10.14)
Symbol
Capacity
U
≥ 66%
n 1
0
33—66%
n 2
0
11—33%
M
≤ 11%
Ø
Ø
L
wA
L
pA
K
a
h
T
1
T
2

Delivery Scope

Cordless Drill/Driver.
Battery, application tools and other accessories shown or de-
scribed are not part of the standard delivery scope.
Meaning
Right/left rotation
Drilling
Low speed
High speed
Switching On
Switching Off
Rated voltage
No-load speed (1st gear)
No-load speed (2nd gear)
Maximum torque according to
ISO 5393
Metal
Wood
Drilling diameter, max.
Max. screw dia.
Chuck clamping range
Weight according to EPTA-Procedure
01/2003
Sound power level
Sound pressure level
Uncertainty
Vibration total value
Permitted ambient temperature during
charging
Permitted ambient temperature during
operation* and storage
* Limited performance at temperatures <0 °C
Recommended batteries
Recommended chargers
