Setting of the end positions

4.4.1. Automatic setup-mode

in operation: bottom position, top stop/release
When the movement is interrupted twice during operation, the system is in automatic
setup-mode. Drive types SEL Plus and SES will automatically find their stop positions.
For this, a drive must first move against the upper stop and then downwards until it
switches off automatically.

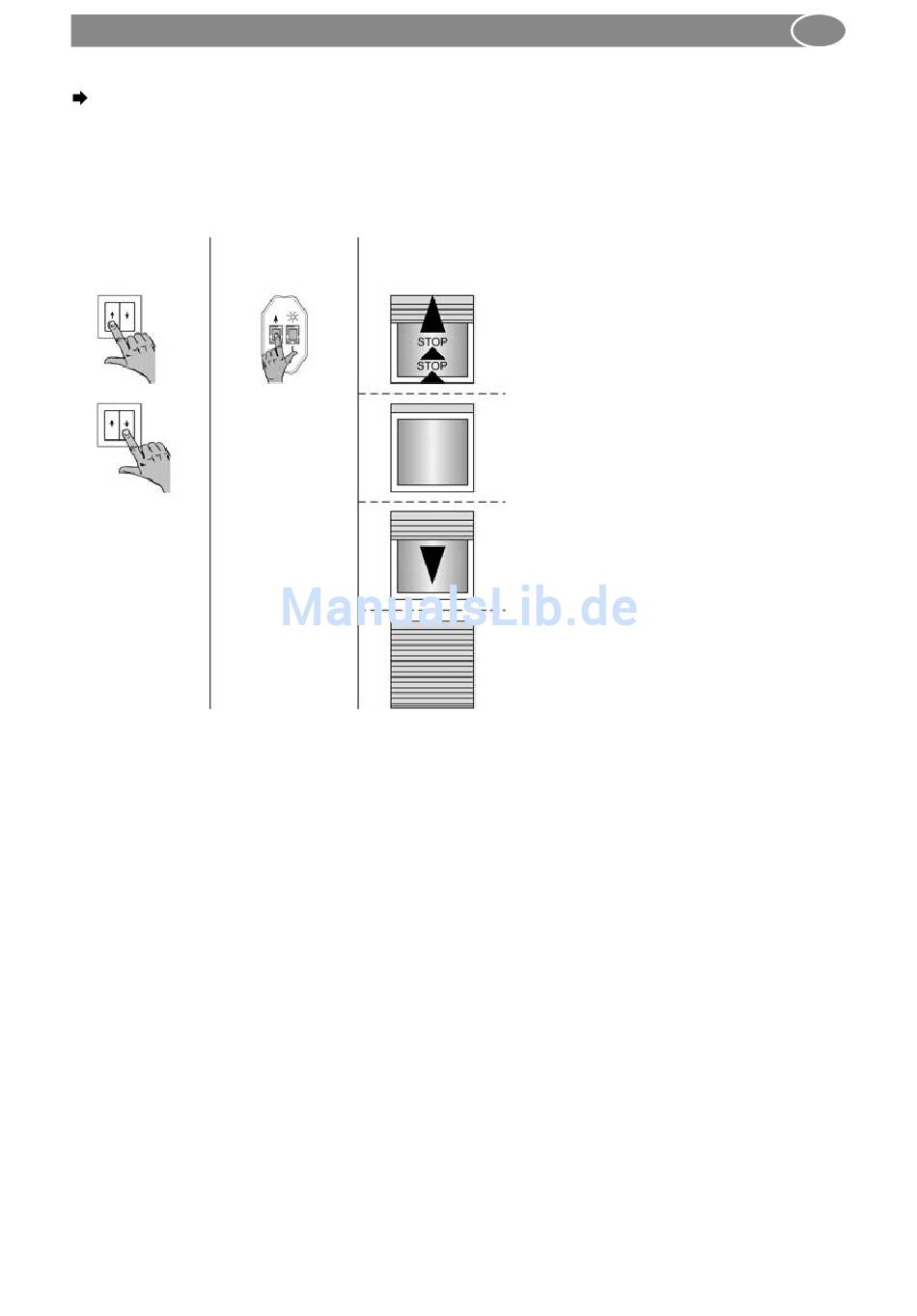

Setting with Setting with
switch setting switch
or
Drive
movement
1. Move the drive upwards with the UP
2. The drive moves against the upper
3. Continue to keep the button pressed
4. The drive will reach the lower limit and
5. The end positions are now set and
25
or DOWN button. The correct rotation
direction assignment will be per-
formed at the end of the end position
setting.
stop and stops automatically.
or press one of the motion buttons
again. Now the drive automatically
moves down wards.
stop automatically.
the rotation direction assignment is
correct. Perform a test run.
