2.2. Wall element assembly

The corner posts and wall elements are connected with tongue and groove and
are screwed together. The door frame is connected to the wall elements using
"Multiclips".
A always refers to the visible side. This is labelled on the top side of the
wall elements.
*
Multiclips

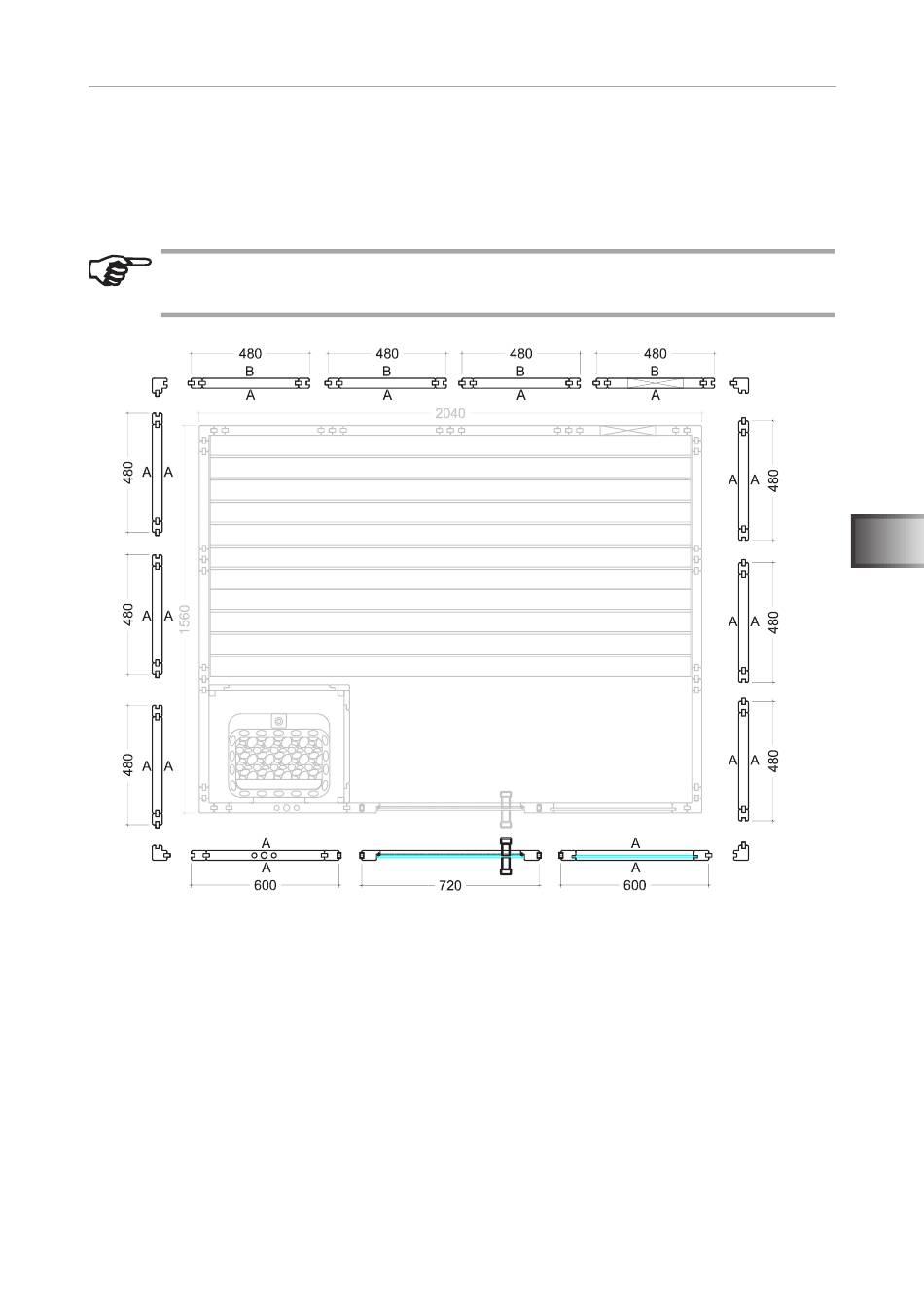

Left floor plan
* *
