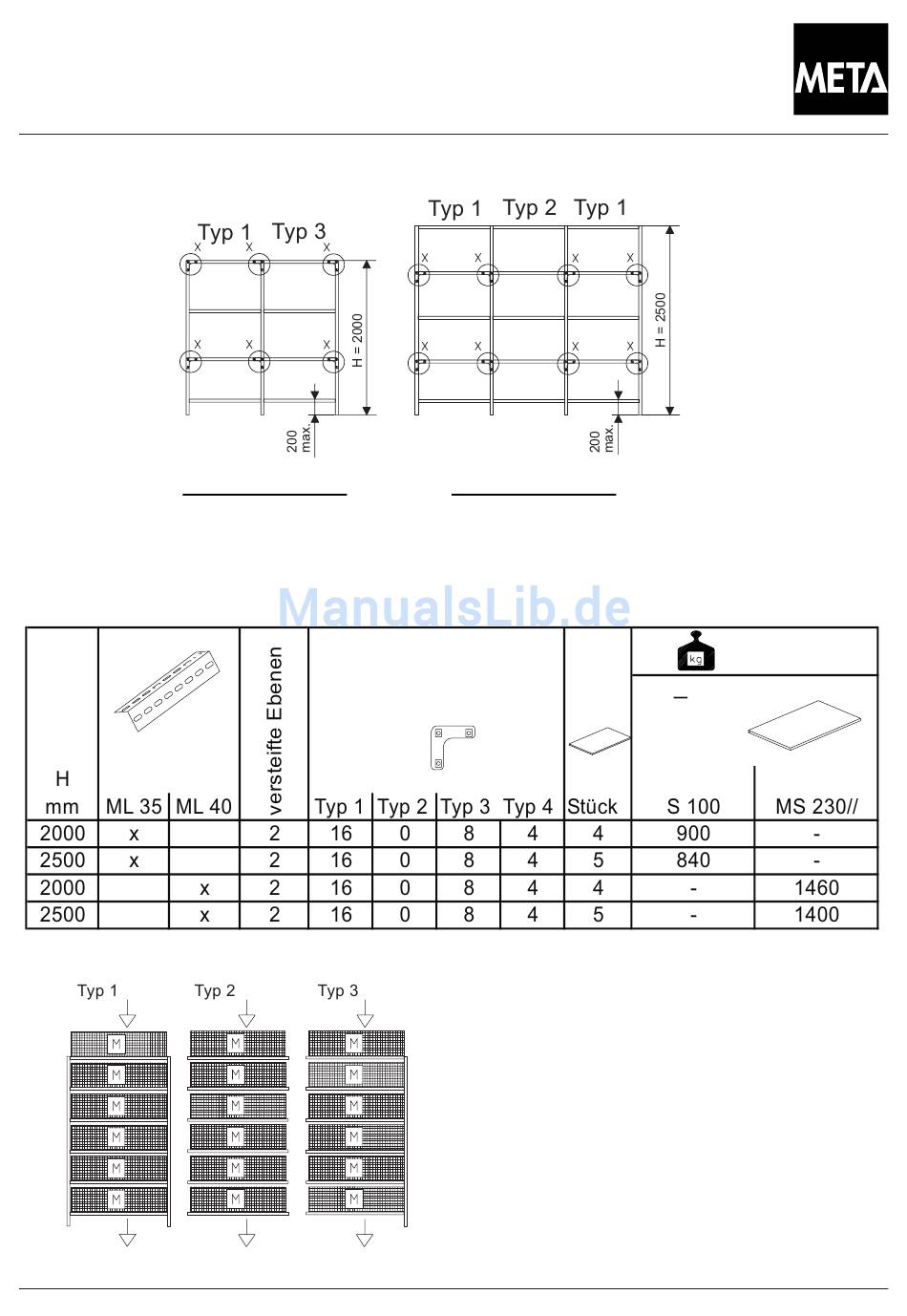

META-FIX-Schraubregal , Systemabmessungen u. Belastungswerte
META-FIX- Slotted angle rack , System sizes and loading data
META-FIX- Rayonnage à vis , Dimensions du système et capacités de charge
Fachboden S 100 und MS 230 II
mit 4 St. Böden
Anordnung der ausgesteiften Ebenen, gem. Abbildung siehe oben.
Arrangement of the strengthened levels, illustration see above.
Une disposition celui niveaux renforcés, illustration voir en haut.
Σ M
Stand 05/2004
Fixwinkel pro Typ
Fixing set-square
I´équerre de fixation
Σ M
Σ M
mit 5 St. Böden
M = Gleichmässig verteilet Last
M = Evenly distributed laod
M = Charge régulièrement réparatie
