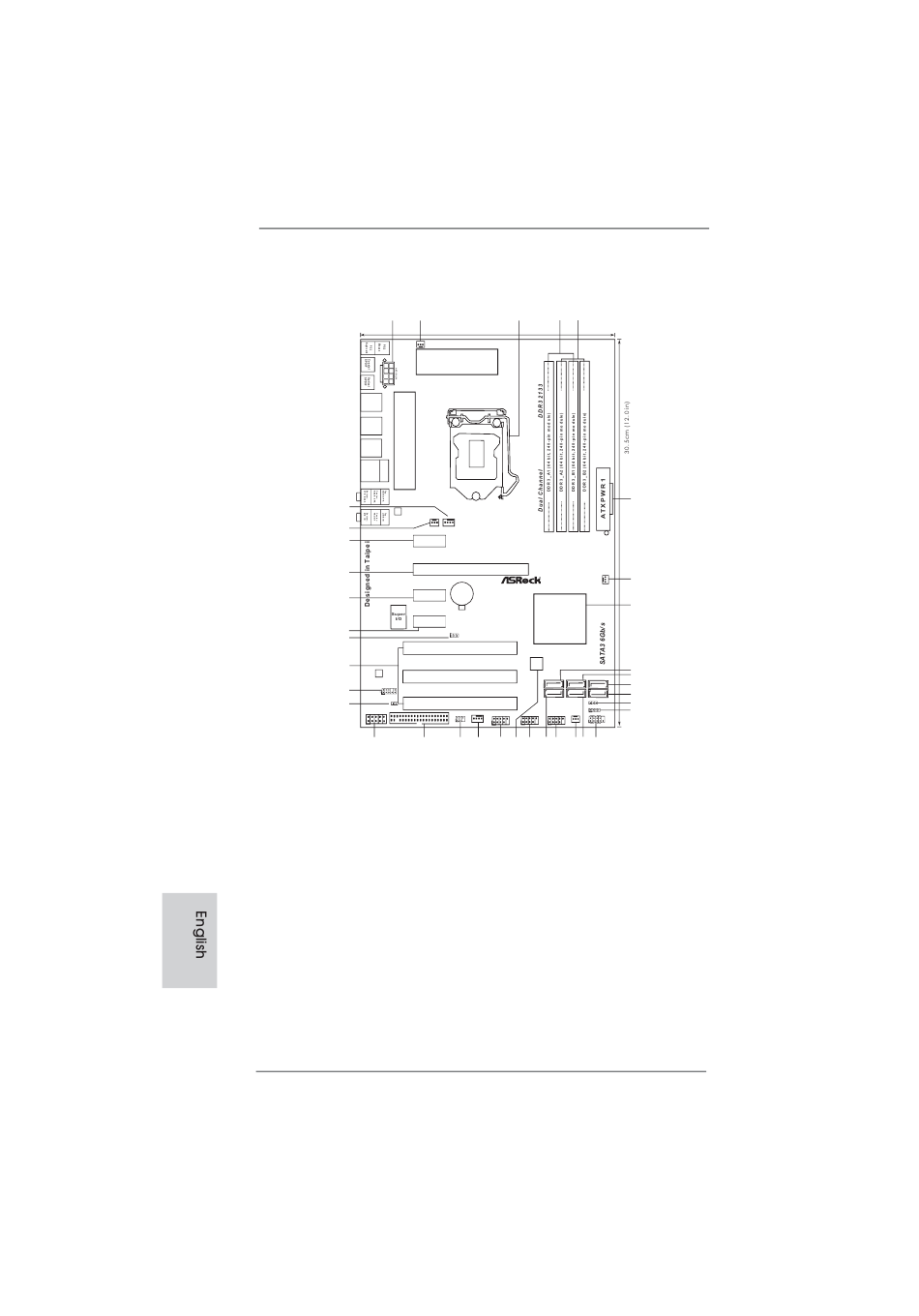

Motherboard Layout
1
USB 2.0
T: USB2
B: USB3
USB 2.0
T: USB4
B: USB5
USB 2.0
T: USB6
B: USB7
USB 2.0
Top:
T: USB0
RJ-45
B: USB1
36
LAN
PHY
35
34
33
32
31
30
29
AUDIO
CODEC
HD_AUDIO1
28
27
1
HDMI_SPDIF1
COM1
1
FLOPPY1
26
1 ATX 12V Power Connector (ATX12V1)
2 Power Fan Connector (PWR_FAN1)
3 1155-Pin CPU Socket
4 2 x 240-pin DDR3 DIMM Slots
(Dual Channel: DDR3_A1, DDR3_B1, Blue)
5 2 x 240-pin DDR3 DIMM Slots
(Dual Channel: DDR3_A2, DDR3_B2, White)
6 ATX Power Connector (ATXPWR1)
7 Chassis Fan Connector (CHA_FAN3)
8 Intel P67 Chipset
9 SATA2 Connector (SATA2_4, Blue)
10 SATA2 Connector (SATA2_2, Blue)
11 SATA3 Connector (SATA3_0, White)
12 SATA3 Connector (SATA3_1, White)
13 Power LED Header (PLED1)
14 Chassis Speaker Header (SPEAKER 1, White) 32
15 System Panel Header (PANEL1, White)
16 SATA2 Connector (SATA2_3, Blue)
17 Chassis Fan Connector (CHA_FAN2)
18 USB 2.0 Header (USB12_13, Blue)
2
ASRock P67 Pro Motherboard
2 3 4 5
20.3cm (8.0 in)
PWR_FAN1
CPU_FAN2 CPU_FAN1
PCIE1
P67 Pro
PCIE2
PCI Express 2.0
CMOS
PCIE3
Battery
Intel
PCIE4
P67
1
CLRCMOS1
PCI1
64Mb
BIOS
PCI2
SATA2_4 SATA2_2
RoHS
ErP/EuP Ready
SATA2_5 SATA2_3
PCI3
1
1
CHA_FAN1
CHA_FAN2
IR1 USB8_9 USB10_11 USB12_13
1 1
1 1 1
PANEL1
24
25 23 22 21 20 19 18 17 16
19 SATA2 Connector (SATA2_5, Blue)
20 USB 2.0 Header (USB10_11, Blue)
21 64Mb SPI Flash
22 USB 2.0 Header (USB8_9, Blue)
23 Chassis Fan Connector (CHA_FAN1)
24 Infrared Module Header (IR1)
25 Floppy Connector (FLOPPY1)
26 COM Port Header (COM1)
27 HDMI_SPDIF Header
(HDMI_SPDIF1, White)
28 Front Panel Audio Header
(HD_AUDIO1, White)
29 PCI Slots (PCI1-3)
30 Clear CMOS Jumper (CLRCMOS1)
31 PCI Express 2.0 x1 Slot (PCIE4, White)
PCI Express 2.0 x1 Slot (PCIE3, White)
33 PCI Express 2.0 x16 Slot (PCIE2, Blue)
34 PCI Express 2.0 x1 Slot (PCIE1, White)
35 CPU Fan Connector (CPU_FAN2)
36 CPU Fan Connector (CPU_FAN1)
6
CHA_FAN3
7
8
9
10
SATA3_0
11
12
SATA3_1
13
PLED1
SPEAKER1 14
PLED PWRBTN
HDLED RESET
15
