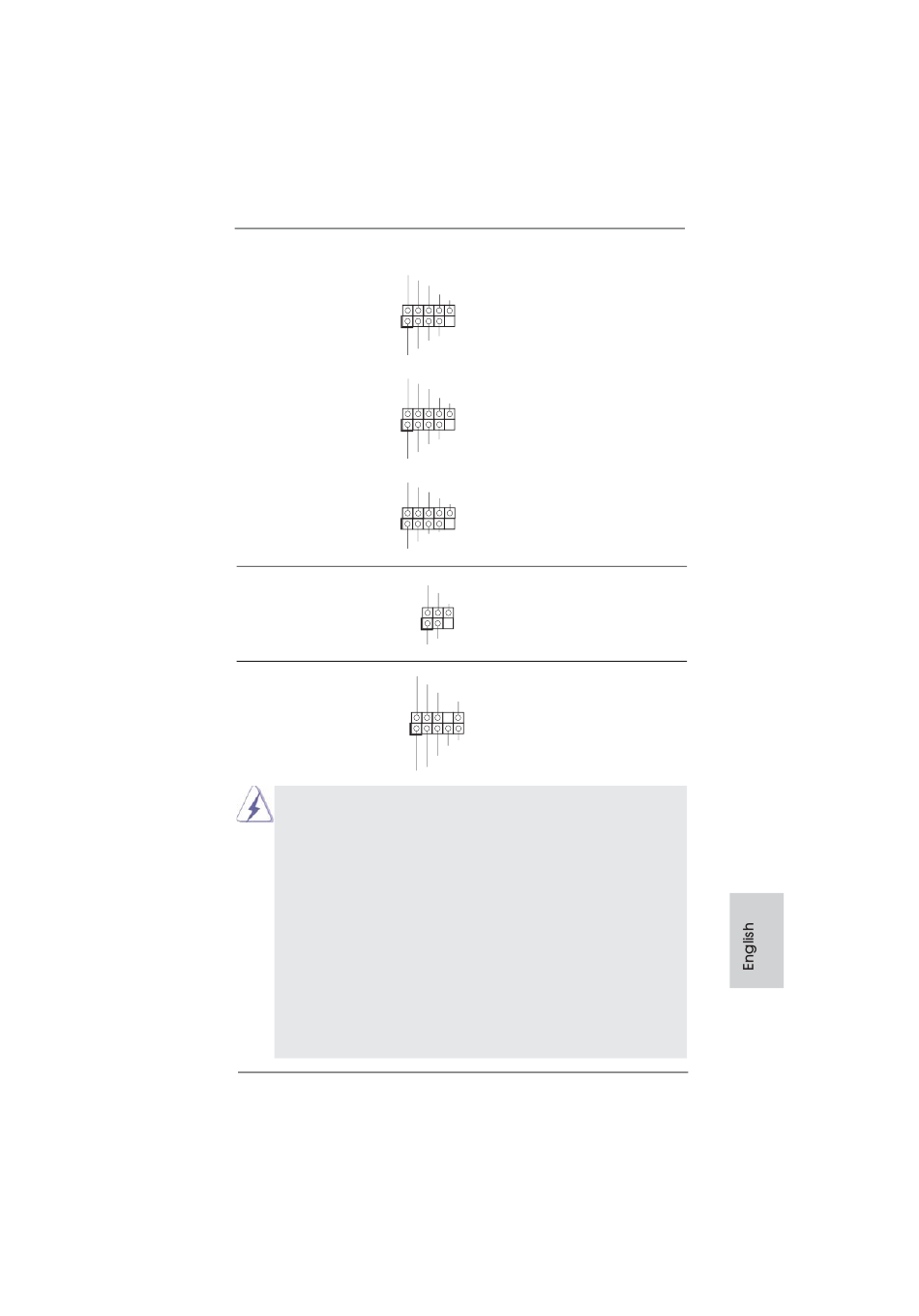

USB 2.0 Headers
USB_PWR
(9-pin USB8_9)
(see p.2 No. 22)
1
USB_PWR
USB_PWR
(9-pin USB10_11)
(see p.2 No. 20)
1
USB_PWR
USB_PWR
(9-pin USB12_13)
(see p.2 No. 18)
1
USB_PWR
Infrared Module Header
(5-pin IR1)
(see p.2 No. 24)
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.2 No. 28)
1
1. High Defi nition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC'97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don't
need to connect them for AC'97 audio panel.
E. To activate the front mic.
®
For Windows XP / XP 64-bit OS:
Select "Mixer". Select "Recorder". Then click "FrontMic".
®
For Windows 7 / 7 64-bit / Vista
Go to the "FrontMic" Tab in the Realtek Control panel. Adjust
"Recording Volume".
ASRock P67 Pro Motherboard
Besides eight default USB 2.0
P-9
P+9
ports on the I/O panel, there
GND
DUMMY
are three USB 2.0 headers on
this motherboard. Each
GND
P+8
USB 2.0 header can support
P-8
two USB 2.0 ports.
P-11
P+11
GND
DUMMY
GND
P+10
P-10
P-13
P+13
GND
DUMMY
GND
P+12
P-12
This header supports an
IRTX
+5VSB
optional wireless transmitting
DUMMY
and receiving infrared module.
1
GND
IRRX
This is an interface for front
GND
PRESENCE#
panel audio cable that allows
MIC_RET
OUT_RET
convenient connection and
control of audio devices.
OUT2_L
J_SENSE
OUT2_R
MIC2_R
MIC2_L
TM TM
/ Vista 64-bit OS:
