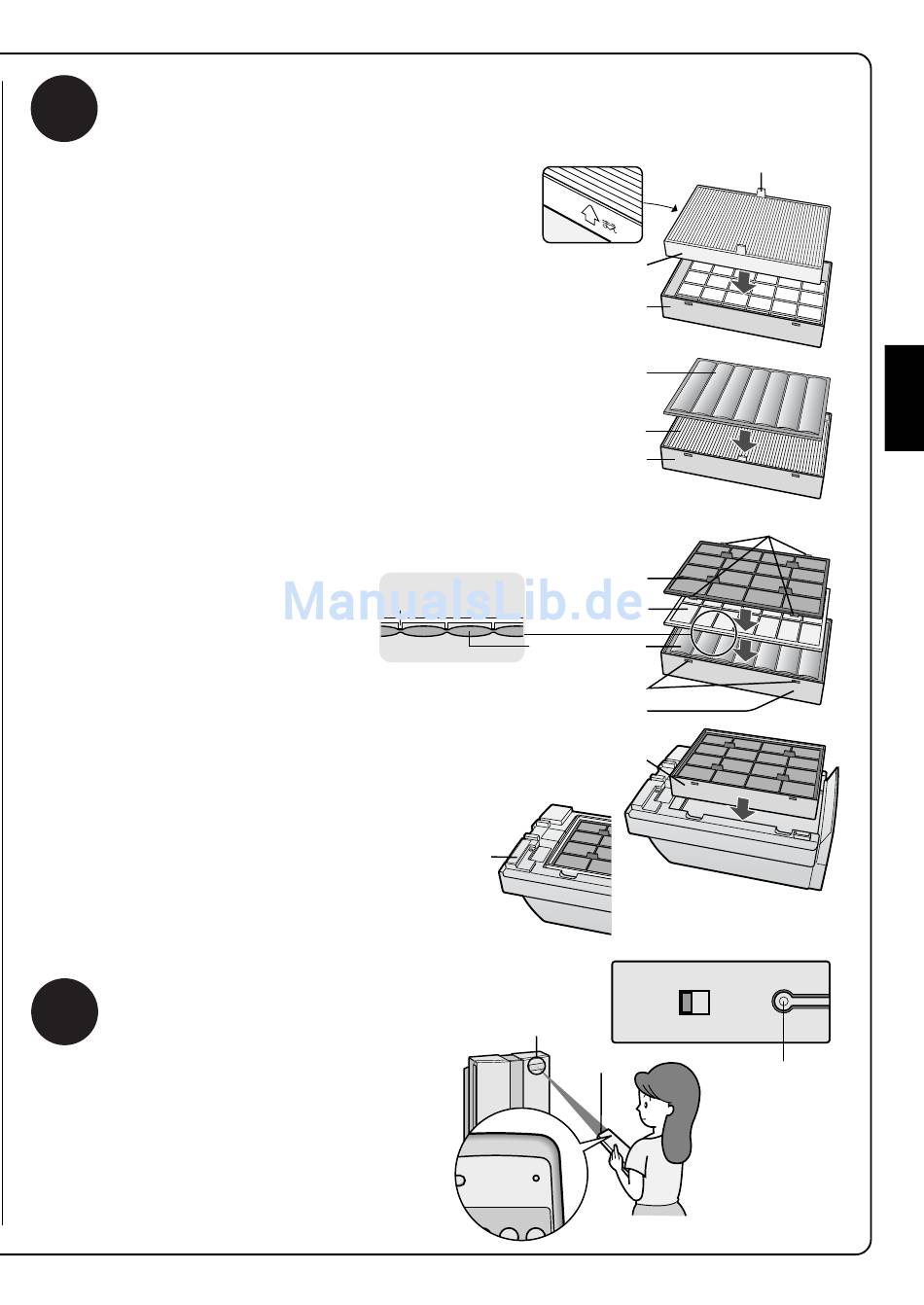

Install the filters
1
Remove the HEPA Filter from
the plastic bag, and mount it
within the Filter frame with the
"FRONT" sign facing up.
Insert so that tabs on the HEPA filter are
facing toward you.
Proper operation cannot be achieved when
installing the filter backwards.
2
Remove the Active carbon filter
from the plastic bag and mount it
within the Filter frame.
3
Mount the Filter separator and
Pre-filter within the Filter frame
in the respective order.
¥ Place the Filter separator so
that the ribs are facing down
as shown in the diagram to
the right.
¥ Insert the tabs of the Pre-filter (4 locations)
in the holes of the the Filter frame.
¥ Set the Filter frame to the main unit as
shown in the diagram to the right
(There is no vertical orientation).
4
Fill in the usage start date on
the Date label affixed on
the main unit.
Use the date as a guide for the
filter replacement period.
3
After replacing the
filters
Be sure to press the Filter reset button
on the main unit or remote control with
the power plug inserted in the wall outlet.
A short beep will be heard and the
operation hours stored in the memory
will be reset.
If the filter lamp is on, the lamp will turn
off.
