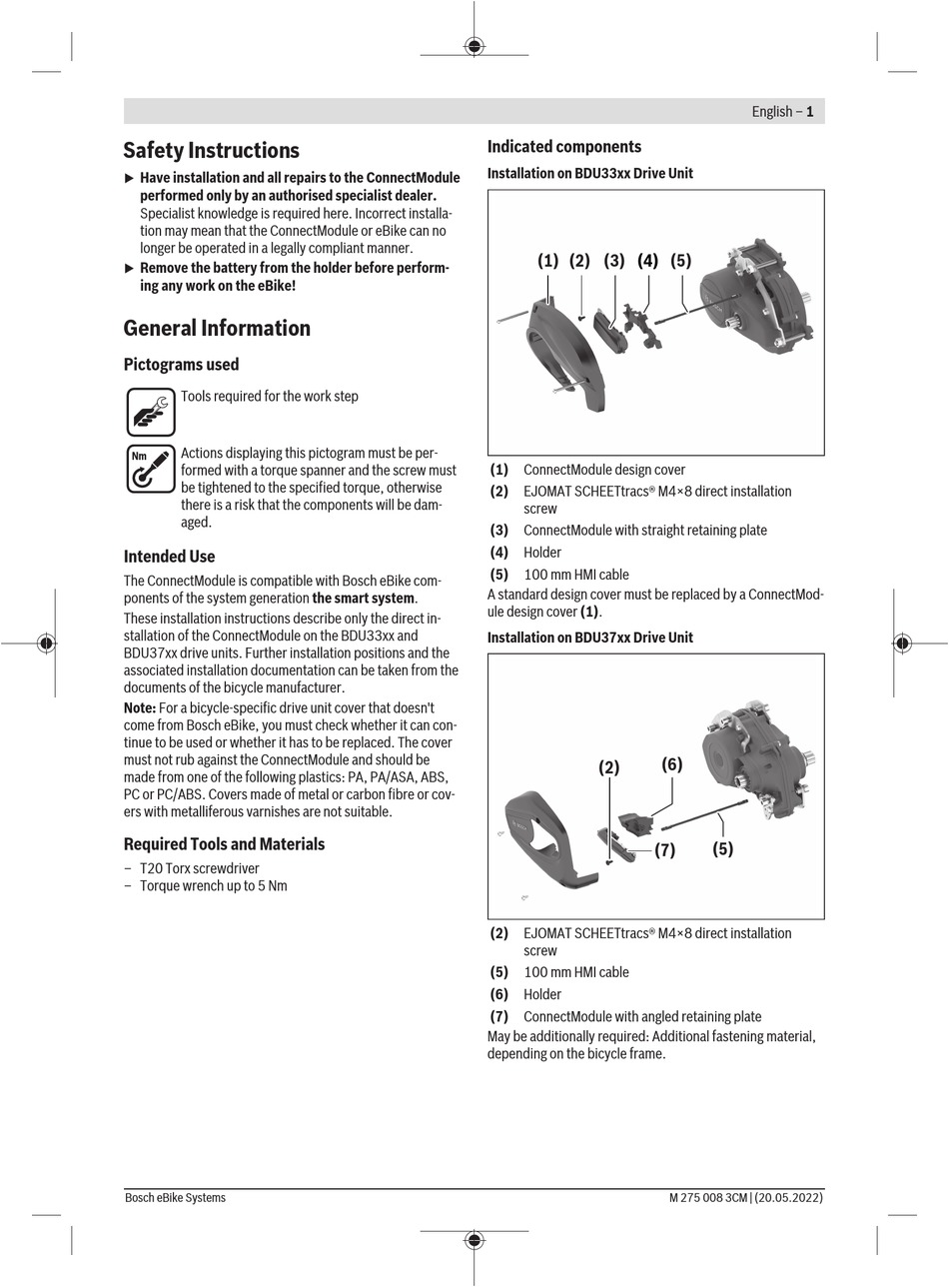

Safety Instructions; General Information - Bosch ConnectModule BCM3100 Montageanleitung

Safety Instructions

Have installation and all repairs to the ConnectModule
u
performed only by an authorised specialist dealer.
Specialist knowledge is required here. Incorrect installa-
tion may mean that the ConnectModule or eBike can no
longer be operated in a legally compliant manner.
Remove the battery from the holder before perform-
u
ing any work on the eBike!

General Information

Pictograms used
Tools required for the work step
Actions displaying this pictogram must be per-
Nm
formed with a torque spanner and the screw must
be tightened to the specified torque, otherwise
there is a risk that the components will be dam-
aged.
Intended Use
The ConnectModule is compatible with Bosch eBike com-
ponents of the system generation the smart system.
These installation instructions describe only the direct in-
stallation of the ConnectModule on the BDU33xx and
BDU37xx drive units. Further installation positions and the
associated installation documentation can be taken from the
documents of the bicycle manufacturer.
Note: For a bicycle-specific drive unit cover that doesn't
come from Bosch eBike, you must check whether it can con-
tinue to be used or whether it has to be replaced. The cover
must not rub against the ConnectModule and should be
made from one of the following plastics: PA, PA/ASA, ABS,
PC or PC/ABS. Covers made of metal or carbon fibre or cov-
ers with metalliferous varnishes are not suitable.
Required Tools and Materials
– T20 Torx screwdriver
– Torque wrench up to 5 Nm
Bosch eBike Systems
Indicated components
Installation on BDU33xx Drive Unit
(1) (2) (3) (4)
(1) ConnectModule design cover
(2) EJOMAT SCHEETtracs® M4×8 direct installation
screw
(3) ConnectModule with straight retaining plate
(4) Holder
(5) 100 mm HMI cable
A standard design cover must be replaced by a ConnectMod-
ule design cover (1).
Installation on BDU37xx Drive Unit
(6)
(2)
(7)
(2) EJOMAT SCHEETtracs® M4×8 direct installation
screw
(5) 100 mm HMI cable
(6) Holder
(7) ConnectModule with angled retaining plate
May be additionally required: Additional fastening material,
depending on the bicycle frame.
English – 1
(5)
(5)
M 275 008 3CM | (20.05.2022)
