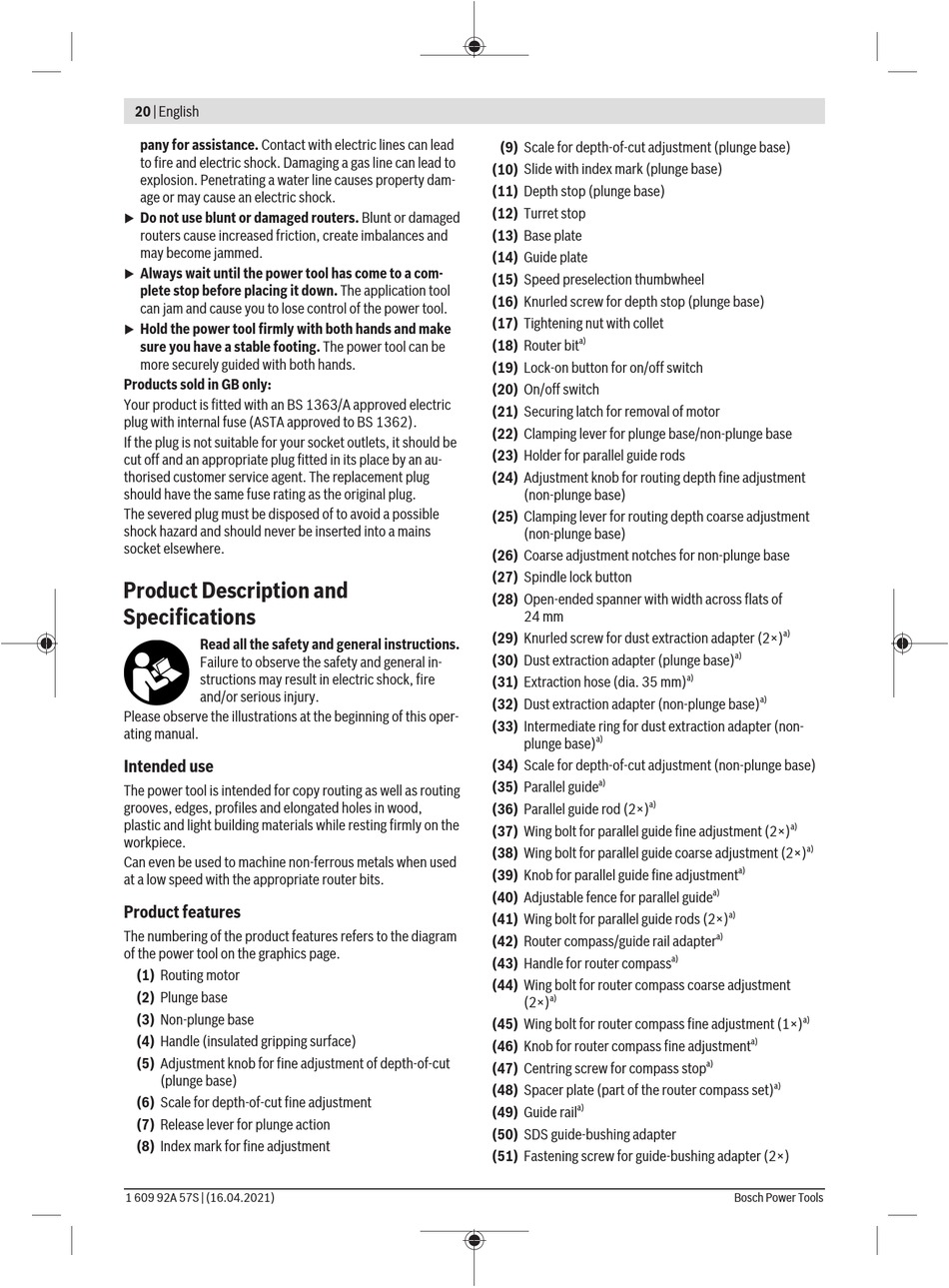

20 | English
pany for assistance. Contact with electric lines can lead
to fire and electric shock. Damaging a gas line can lead to
explosion. Penetrating a water line causes property dam-
age or may cause an electric shock.
Do not use blunt or damaged routers. Blunt or damaged
u
routers cause increased friction, create imbalances and
may become jammed.
Always wait until the power tool has come to a com-
u
plete stop before placing it down. The application tool
can jam and cause you to lose control of the power tool.
Hold the power tool firmly with both hands and make
u
sure you have a stable footing. The power tool can be
more securely guided with both hands.
Products sold in GB only:
Your product is fitted with an BS 1363/A approved electric
plug with internal fuse (ASTA approved to BS 1362).
If the plug is not suitable for your socket outlets, it should be
cut off and an appropriate plug fitted in its place by an au-
thorised customer service agent. The replacement plug
should have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible
shock hazard and should never be inserted into a mains
socket elsewhere.
Product Description and
Specifications
Read all the safety and general instructions.
Failure to observe the safety and general in-
structions may result in electric shock, fire
and/or serious injury.
Please observe the illustrations at the beginning of this oper-
ating manual.

Intended use

The power tool is intended for copy routing as well as routing
grooves, edges, profiles and elongated holes in wood,
plastic and light building materials while resting firmly on the
workpiece.
Can even be used to machine non-ferrous metals when used
at a low speed with the appropriate router bits.

Product features

The numbering of the product features refers to the diagram
of the power tool on the graphics page.
(1) Routing motor
(2) Plunge base
(3) Non-plunge base
(4) Handle (insulated gripping surface)
(5) Adjustment knob for fine adjustment of depth-of-cut
(plunge base)
(6) Scale for depth-of-cut fine adjustment
(7) Release lever for plunge action
(8) Index mark for fine adjustment
1 609 92A 57S | (16.04.2021)
(9) Scale for depth-of-cut adjustment (plunge base)
(10) Slide with index mark (plunge base)
(11) Depth stop (plunge base)
(12) Turret stop
(13) Base plate
(14) Guide plate
(15) Speed preselection thumbwheel
(16) Knurled screw for depth stop (plunge base)
(17) Tightening nut with collet
a)
(18) Router bit
(19) Lock-on button for on/off switch
(20) On/off switch
(21) Securing latch for removal of motor
(22) Clamping lever for plunge base/non-plunge base
(23) Holder for parallel guide rods
(24) Adjustment knob for routing depth fine adjustment
(non-plunge base)
(25) Clamping lever for routing depth coarse adjustment
(non-plunge base)
(26) Coarse adjustment notches for non-plunge base
(27) Spindle lock button
(28) Open-ended spanner with width across flats of
24 mm
(29) Knurled screw for dust extraction adapter (2×)
(30) Dust extraction adapter (plunge base)
(31) Extraction hose (dia. 35 mm)
(32) Dust extraction adapter (non-plunge base)
(33) Intermediate ring for dust extraction adapter (non-
a)
plunge base)
(34) Scale for depth-of-cut adjustment (non-plunge base)
a)
(35) Parallel guide
a)
(36) Parallel guide rod (2×)
(37) Wing bolt for parallel guide fine adjustment (2×)
(38) Wing bolt for parallel guide coarse adjustment (2×)
(39) Knob for parallel guide fine adjustment
(40) Adjustable fence for parallel guide
(41) Wing bolt for parallel guide rods (2×)
(42) Router compass/guide rail adapter
(43) Handle for router compass
(44) Wing bolt for router compass coarse adjustment
a)
(2×)
(45) Wing bolt for router compass fine adjustment (1×)
(46) Knob for router compass fine adjustment
(47) Centring screw for compass stop
(48) Spacer plate (part of the router compass set)
a)
(49) Guide rail
(50) SDS guide-bushing adapter
(51) Fastening screw for guide-bushing adapter (2×)
a)
a)
a)
a)
a)
a)
a)
a)
a)
a)
a)
a)
a)
a)
a)
