Amplifier Section
Output Power (Stereo) (0.9 % THD, 1 kHz, 8 ohms):
80 watts RMS per channel minimum, both channels driven
into 8 ohms from 20 Hz to 20kHz with no more than 0.9%
total harmonic distortion
Surround Output Power (0.9 % THD, 1 kHz, 8 ohms):
55 + 55 watts (Front)
55 watts (Center)
55 + 55 watts (Rear)
Total Harmonic Distortion (Stereo):
0.02% (at 80 watts, 1 kHz)
Delay Time:
DOLBY DIGITAL: REAR 0 – 15 ms
CENTER 0 – 5 ms
DOLBY PRO LOGIC: REAR 15 – 30 ms
Audio Input Sensitivity/Impedance:
* LINE: 200 mV/47 k ohms
Output Level/Impedance:
VCR/TAPE, CD-R/MD, PRE OUT : 185 mV / 2.2 k ohms
Frequency Response:
* LINE: 20 Hz – 65 kHz, +1 / –3 dB
Signal-to-Noise Ratio:
* LINE: 70 dB (IHF-A)
Tone Control:
BASS: ± 10 dB at 100 Hz
TREBLE: ± 10 dB at 10 kHz
Digital Audio Section
Sampling Frequency:
32 kHz, 44.1 kHz, 48 kHz
DIGITAL Input Level/Impedance:
COAXIAL: 0.5 Vp-p / 75 ohms
OPTICAL: –15 dBm to –21 dBm
Video Section
Input Sensitivity/Impedance:
1.0 Vp-p / 75 ohms
Output Level/Impedance:
1.0 Vp-p / 75 ohms

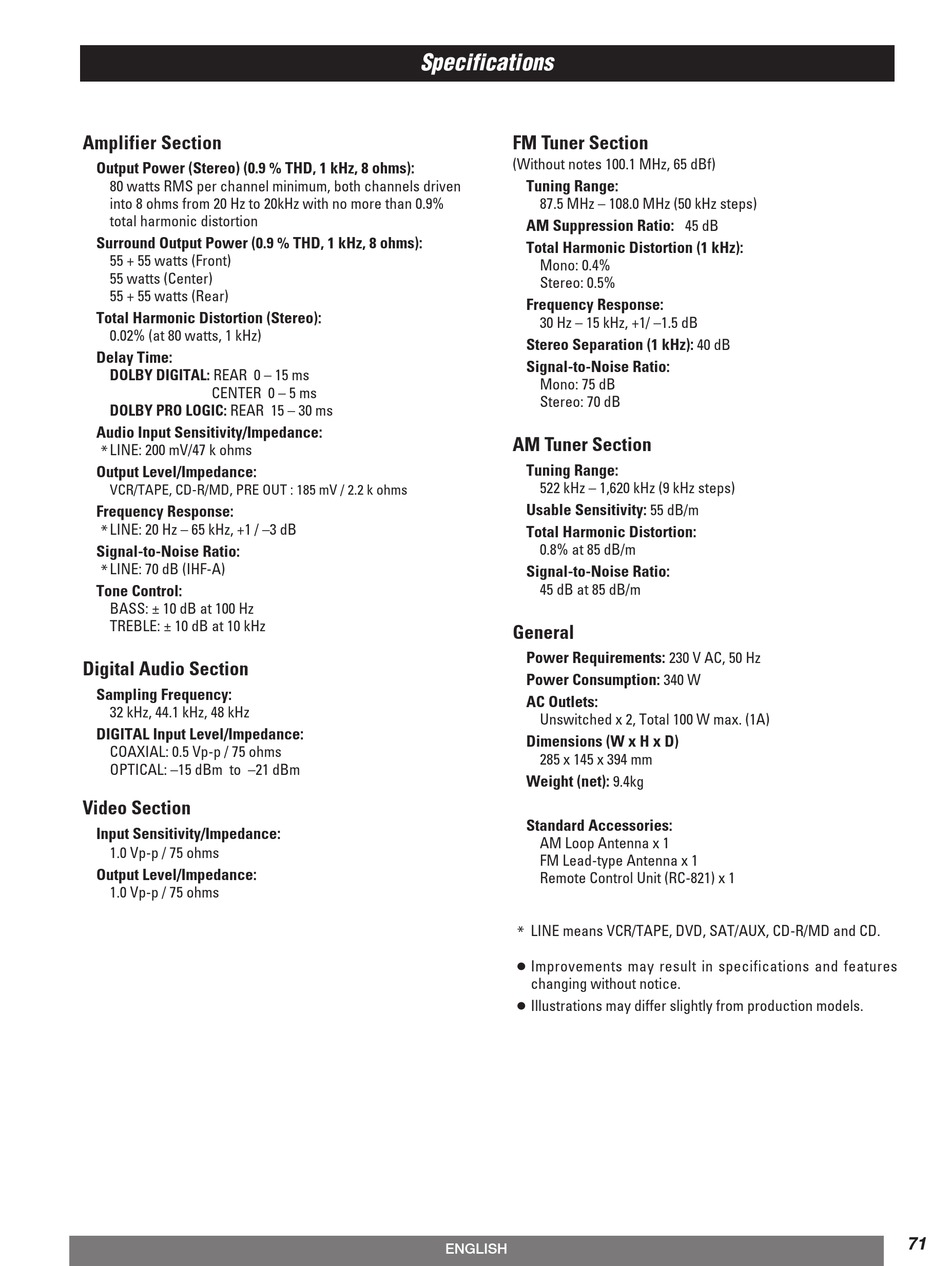

Specifications
FM Tuner Section
(Without notes 100.1 MHz, 65 dBf)
Tuning Range:
87.5 MHz – 108.0 MHz (50 kHz steps)
AM Suppression Ratio: 45 dB
Total Harmonic Distortion (1 kHz):
Mono: 0.4%
Stereo: 0.5%
Frequency Response:
30 Hz – 15 kHz, +1/ –1.5 dB
Stereo Separation (1 kHz): 40 dB
Signal-to-Noise Ratio:
Mono: 75 dB
Stereo: 70 dB
AM Tuner Section
Tuning Range:
522 kHz – 1,620 kHz (9 kHz steps)
Usable Sensitivity: 55 dB/m
Total Harmonic Distortion:
0.8% at 85 dB/m
Signal-to-Noise Ratio:
45 dB at 85 dB/m
General
Power Requirements: 230 V AC, 50 Hz
Power Consumption: 340 W
AC Outlets:
Unswitched x 2, Total 100 W max. (1A)
Dimensions (W x H x D)
285 x 145 x 394 mm
Weight (net): 9.4kg
Standard Accessories:
AM Loop Antenna x 1
FM Lead-type Antenna x 1
Remote Control Unit (RC-821) x 1
* LINE means VCR/TAPE, DVD, SAT/AUX, CD-R/MD and CD.
< Improvements may result in specifications and features
changing without notice.
< Illustrations may differ slightly from production models.
