Get Acquainted

1
2
3
4
Microphone

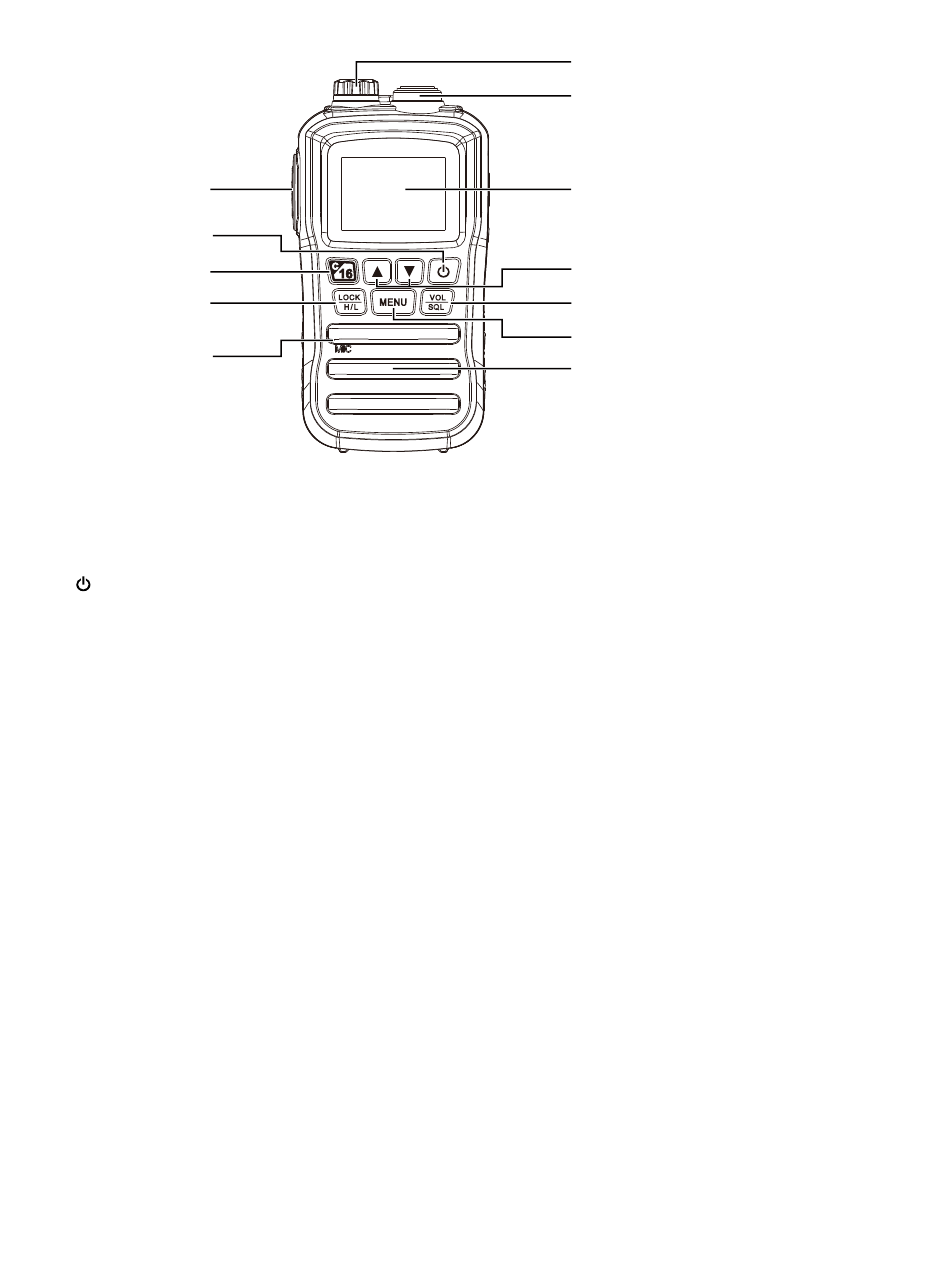

Keyboard Description

1. [PTT] Key:
Hold down [PTT] to transmit, speak with normal tone.
Release [PTT] to receive.
2. [ ] Power Key:
Hold down this key for 1 second to power ON/OFF the radio.
3. Channel 16/CALL Channel [C/16]:
Press to select Channel 16; Hold for 1 second to select Call Channel.
● When the Call Channel is selected, hold for 3 seconds to enter the Call Channel programming mode.
● While in the menu mode, press this key to exit.
4. High/Low Power/Lock Key [LOCK]/[H/L]:
Press to select high or low output power; Hold for 1 second to turn Lock Function ON or OFF.
5. Menu Key [MENU]:
Press to enter menu mode; Hold for 1 second to set or clear theTAG channel.
6.Volume/Squelch/Monitor Key [VOL/SQL] /[MONI]:
Press to enter the volume adjustment mode; Press again to enter the squelch adjustment mode; Hold for 1
second to active the Monitor function.
● While holding this key, press [▲] to turn on the Volume Maximum Function, repeat again to turn off this
function.
● While holding this key, press [▼] to turn on the Volume Mute Function, repeat again to turn off this function.
7.Up/Down Key [▲]/[▼]:
While standby, press to select operating channel; While in the menu mode, press to select the menu items; While
in channel scan, press to change the scan direction.
8. Antenna Connector:
Connect with 50Ω supplied antenna.
9. Earphone/Charging [SP/MIC]/[CHR]:
For connecting external earphone/microphone; For connecting AC Adaptor/DC Charger.
● Rotate the jack cover counter-clockwise to open; Rotate clockwise to close.
※ NOTICE: Make sure the jack cover is fixed tightly.
9
8
LCD Display
7
6
Q
5
Speaker
2
